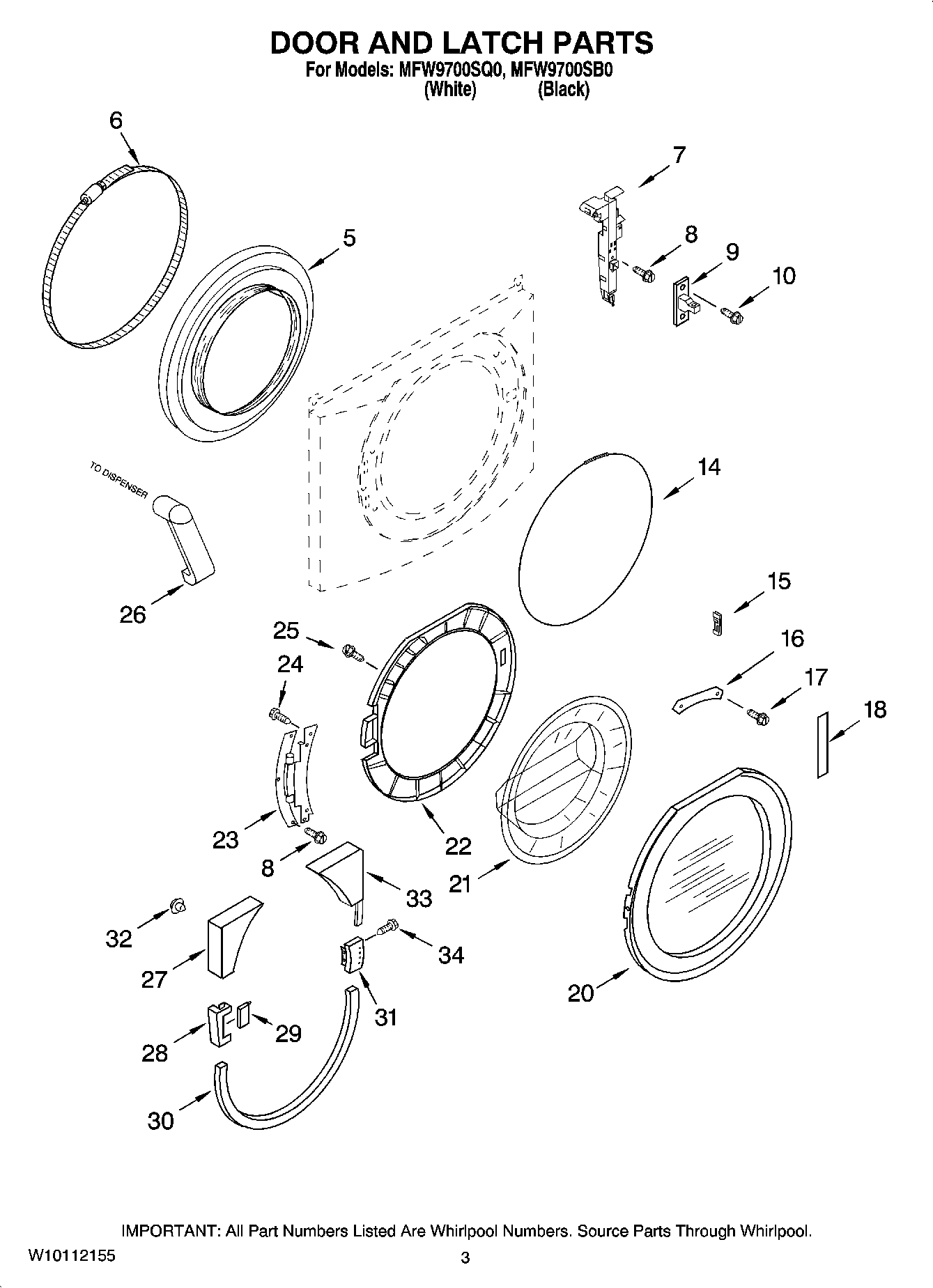

MFW9700SB0 02 – DOOR AND LATCH PARTS

Written by

Products

Position	Product
5	MAY 8182119
6	Clamp, Bellow To Tub
7	MAY 8182634
8	MAY 8181760
9	MAY 8181651
10	MAY 8181758
14	Clamp, Bellow To Front Panel
15	Clamp, Glass Support
16	MAY 8181650
17	MAY 8181785
18	MAY 8182153
20	Door Frame Assembly (Aluminum)
20	MAY 8183070
21	MAY 8181655
22	MAY 8182628
23	MAY 8181843
24	MAY 8181660
25	MAY 8181661
26	MAY 8181718
27	Trim, Upper Left (White)
27	MAY 8183065
28	MAY 8183067
28	Cover, Hinge (Outer) (White)
29	Cover, Hinge (Inner) (White)
29	MAY 8183068
30	MAY 8183066
30	Trim, Lower (White)
31	MAY 8183069
31	Handle, Door (White)
32	MAY 8182779
33	MAY 8183064
33	Trim, Upper Right (White)
34	MAY 8181759
