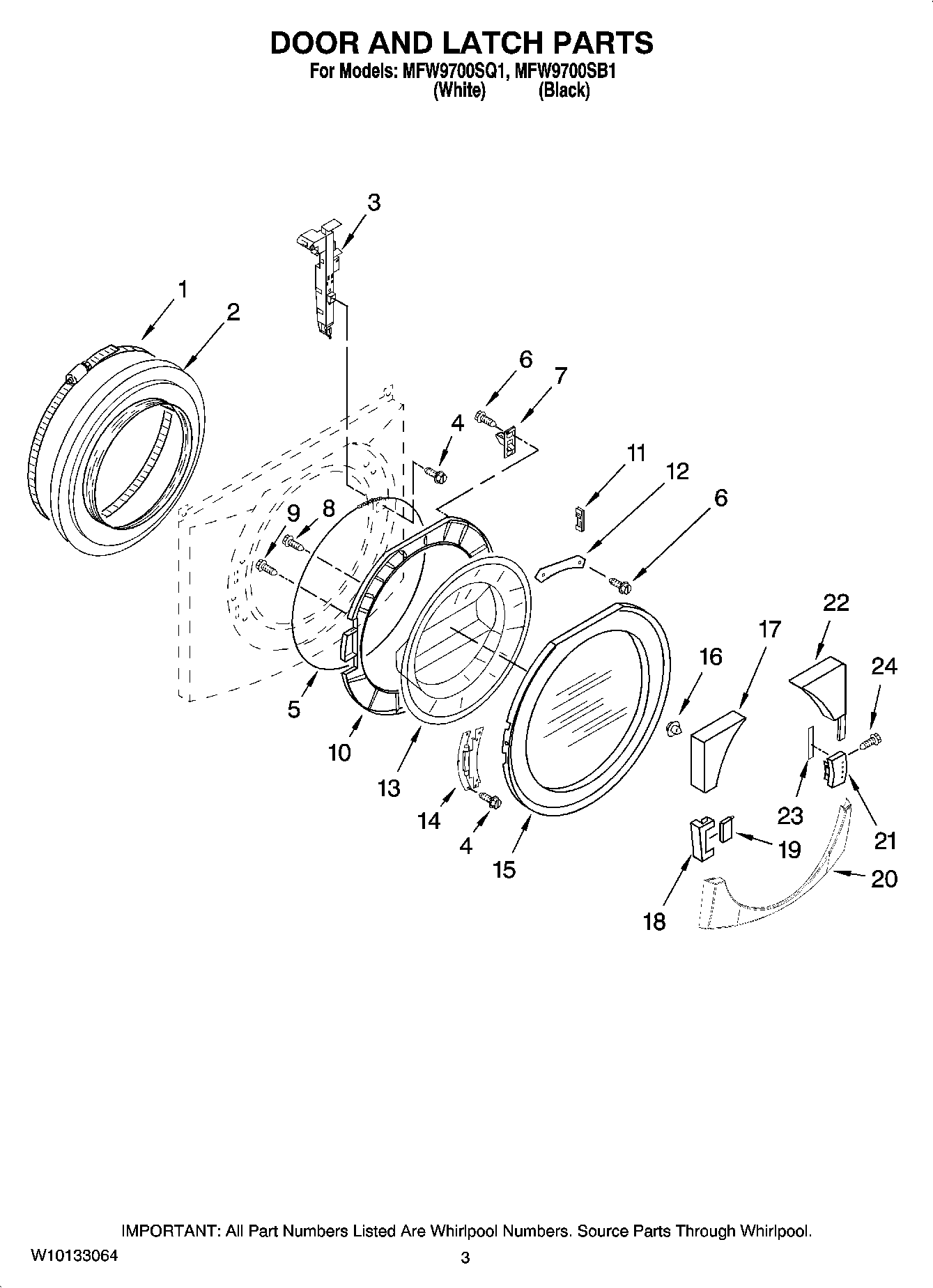

MFW9700SB1 02 – DOOR AND LATCH PARTS

Products

Position	Product
1	Clamp, Bellow To Tub
2	MAY 8182119
3	MAY 8182634
4	MAY 8181760
5	Clamp, Bellow To Front Panel
6	MAY 8181758
7	MAY 8181651
8	MAY 8181661
9	MAY 8181660
10	MAY 8182628
11	MAY W10128586
12	MAY 8181650
13	MAY 8181655
14	MAY 8181843
15	Door Frame Assembly (Aluminum)
15	MAY 8183070
16	MAY 8182779
17	Trim, Upper Left (White)
17	MAY 8183065
18	Cover, Hinge (Outer) (White)
18	MAY 8183067
19	MAY 8183068
19	Cover, Hinge (Inner) (White)
20	MAY 8183066
20	Trim, Lower (White)
21	MAY 8183069
21	Handle, Door (White)
22	Trim, Upper Right (White)
22	MAY 8183064
23	MAY 8182153
24	MAY 8181759
