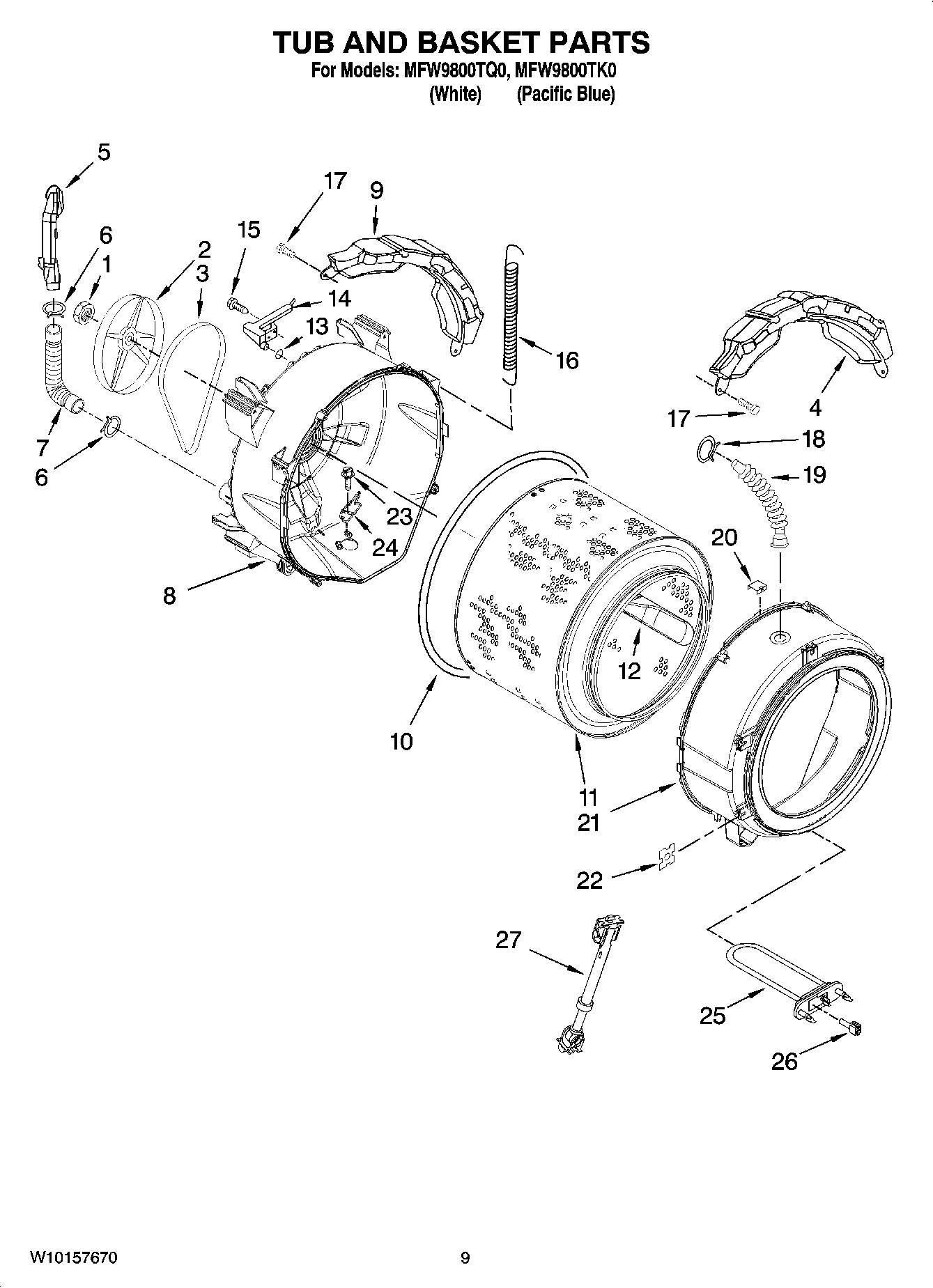

MFW9800TK0 05 – TUB AND BASKET PARTS

MFW9800TK0 05 – TUB AND BASKET PARTS

Written by

in

MFW9800TK0 05 – TUB AND BASKET PARTS

Products

Position	Product
NI	MAY 8182126
1	MAY 8182132
2	MAY 8182650
3	MAY 8183269
4	Counterweight, Front (2)
5	MAY 8181744
6	MAY 8181746
7	MAY 8181743
8	MAY 8181666
9	MAY 8181644
10	MAY 8181673
11	MAY 8182247
12	MAY 8182233
13	MAY 8181748
14	MAY 8181731
15	MAY 8181785
16	SPRING, SUSPENSION (SET OF 2)
17	BOLT, FRONT COUNTERWEIGHT
18	Clamp, Hose
19	MAY 8181794
20	Clamp, Tub
21	MAY 8181665
22	MAY 8182512
23	MAY 8182214
24	MAY 8181686
25	MAY 8182666
26	MAY 8181705
27	MAY 8182812
