MFW9800TQ0 02 – DOOR AND LATCH PARTS
Written by
in

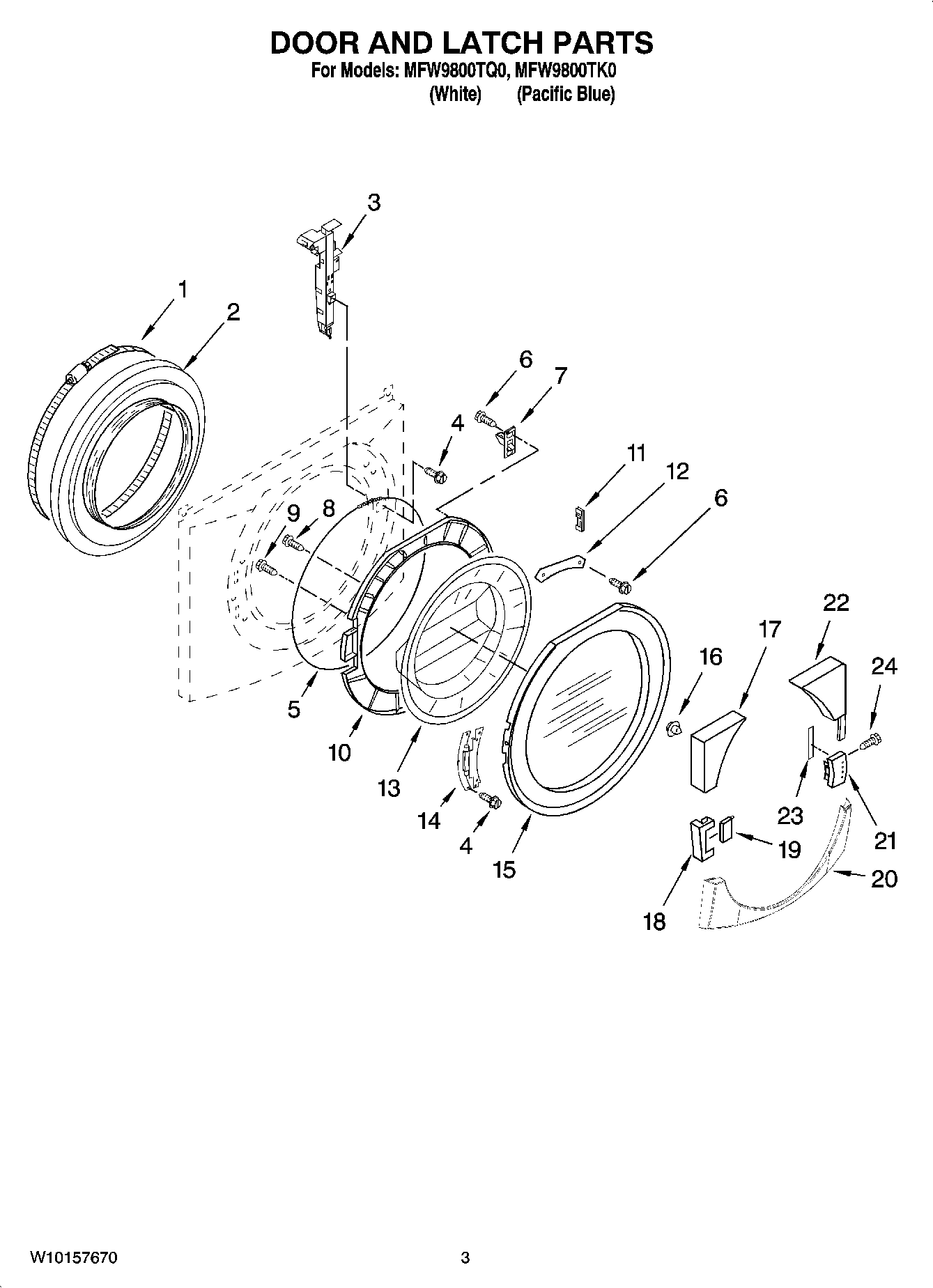

MFW9800TQ0 02 – DOOR AND LATCH PARTS
Products
Position
Product
1
Clamp, Bellow To Tub
2
MAY 8182119
3
MAY 8182634
4
MAY 8181760
5
Clamp, Bellow To Front Panel
6
MAY 8181758
7
MAY 8181651
8
MAY 8181661
9
MAY 8181660
10
MAY W10163308
11
MAY W10128586
12
MAY 8181650
13
MAY 8181655
14
MAY 8181843
15
MAY W10163299
16
MAY 8182779
17
Trim, Upper Left (White)
17
MAY W10163318
18
Cover, Hinge (Outer) (White)
18
MAY W10163322
19
MAY W10163323
19
Cover, Hinge (Inner) (White)
20
Trim, Lower (White)
20
MAY W10163321
21
Handle, Door (White)
21
MAY W10163324
22
MAY W10163319
22
Trim, Upper Right (White)
23
MAY 8182153
24
MAY 8181759
←
