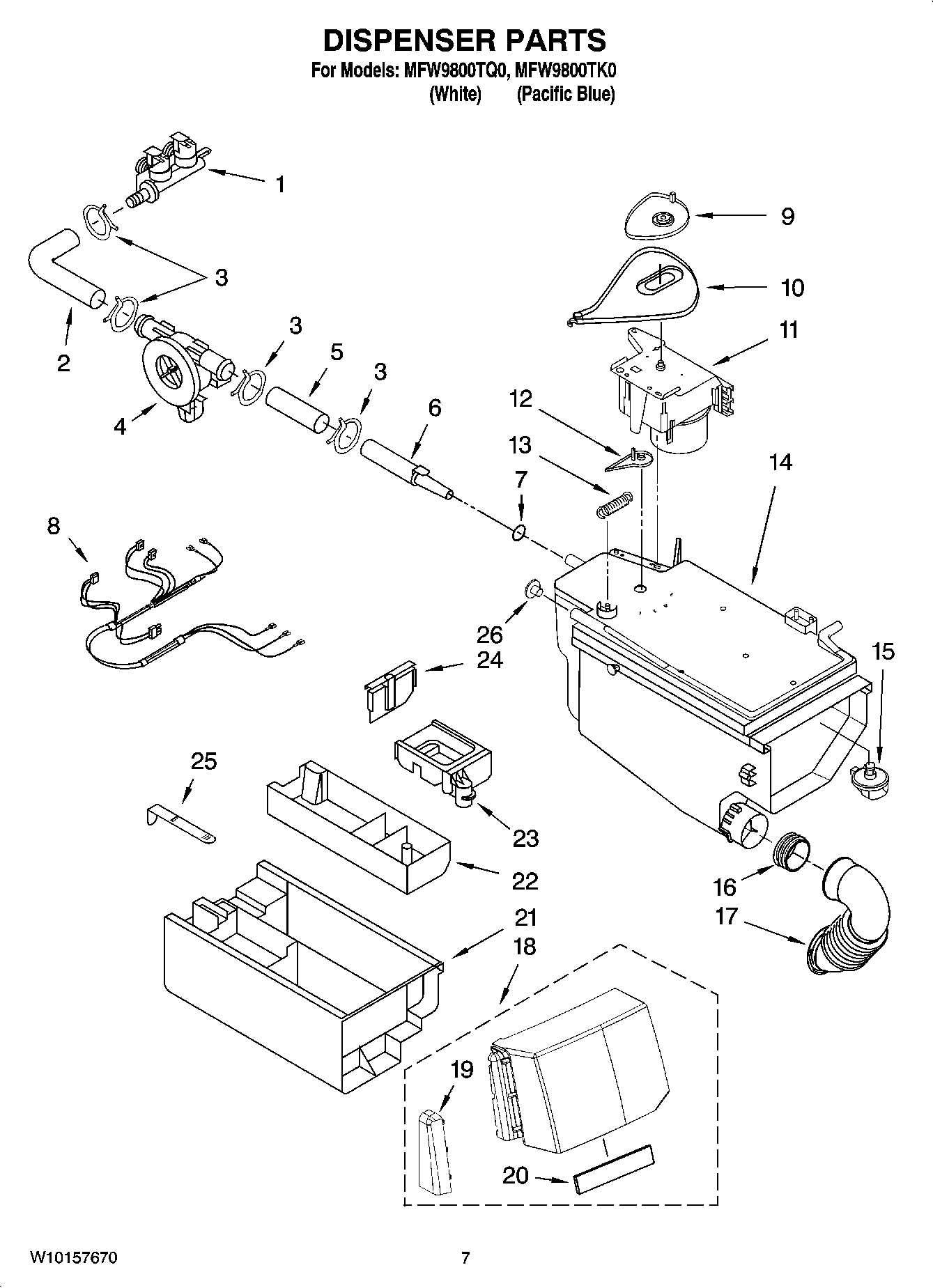

MFW9800TQ0 04 – DISPENSER PARTS

MFW9800TQ0 04 – DISPENSER PARTS

Written by

in

MFW9800TQ0 04 – DISPENSER PARTS

Products

PositionProduct
1MAY 8182862
2MAY 8181710
3Clamp, Hose
4MAY 8181696
5MAY 8181708
6MAY 8183010
7MAY 8181714
8MAY 8183022
9MAY 8181726
10MAY 8181725
11MAY 8181723
12MAY 8181724
13MAY 8181727
14Dispenser (White)
15MAY 8181712
16MAY 8181747
17MAY 8181718
18MAY W10163313
18MAY W10163312
19MAY W10163314
19Endcap, Left (White)
20MAY 8182173
21Drawer, Detergent (White)
22Container, Detergent (White)
23Siphon, Bleach/Softener (White)
24Separator (White)
25MAY 8181721
26MAY 8182123
