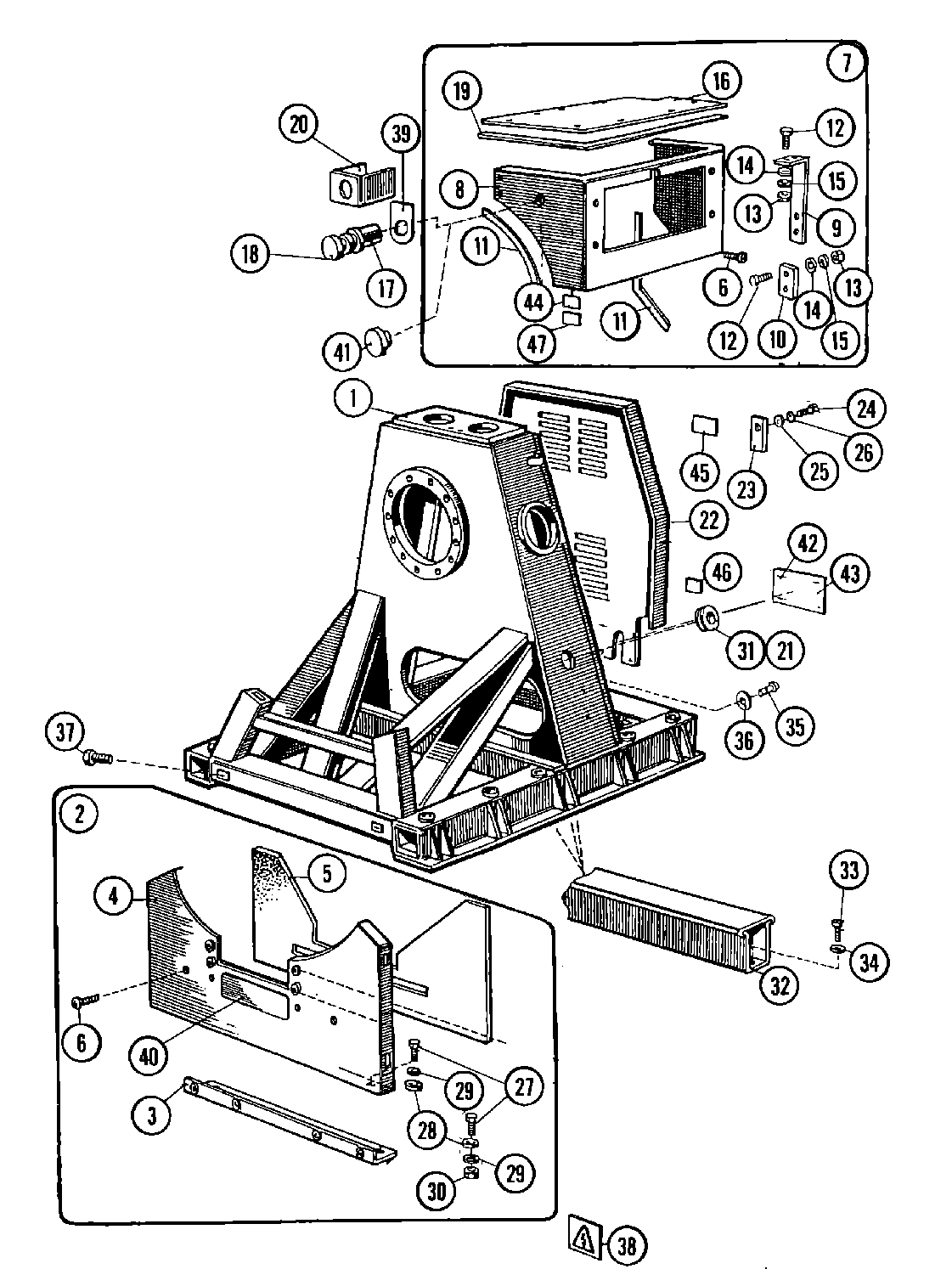

MFX100PAVS 14 – FRAME & COVER ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY 23001763 |
| 002 | MAY 23001765 |
| 004 | MAY 23001767 |
| 006 | MAY 23001749 |
| 007 | MAY 23001769 |
| 010 | MAY 23001566 |
| 011 | MAY 23001088 |
| 013 | MAY 23001053 |
| 015 | MAY 23001054 |
| 017 | MAY 23001075 |
| 018 | MAY 23001078 |
| 019 | MAY 23001567 |
| 020 | MAY 23001774 |
| 021 | MAY 23002212 |
| 025 | MAY 23001580 |
| 026 | MAY 23001582 |
| 027 | MAY 23001264 |
| 028 | MAY 23001263 |
| 029 | MAY 23001265 |
| 030 | MAY 23001266 |
| 031 | MAY 23002211 |
| 032 | MAY 23001551 |
| 033 | MAY 23001361 |
| 034 | MAY 23001056 |
| 035 | MAY 23001552 |
| 037 | MAY 23001555 |
| 039 | MAY 23001093 |
| 040 | MAY 23002185 |
| 042 | MAY 23002187 |
| 044 | MAY 23002190 |
| 046 | DOWEL PIN FOR HANDLE |
| 047 | MAY 23001550 |
