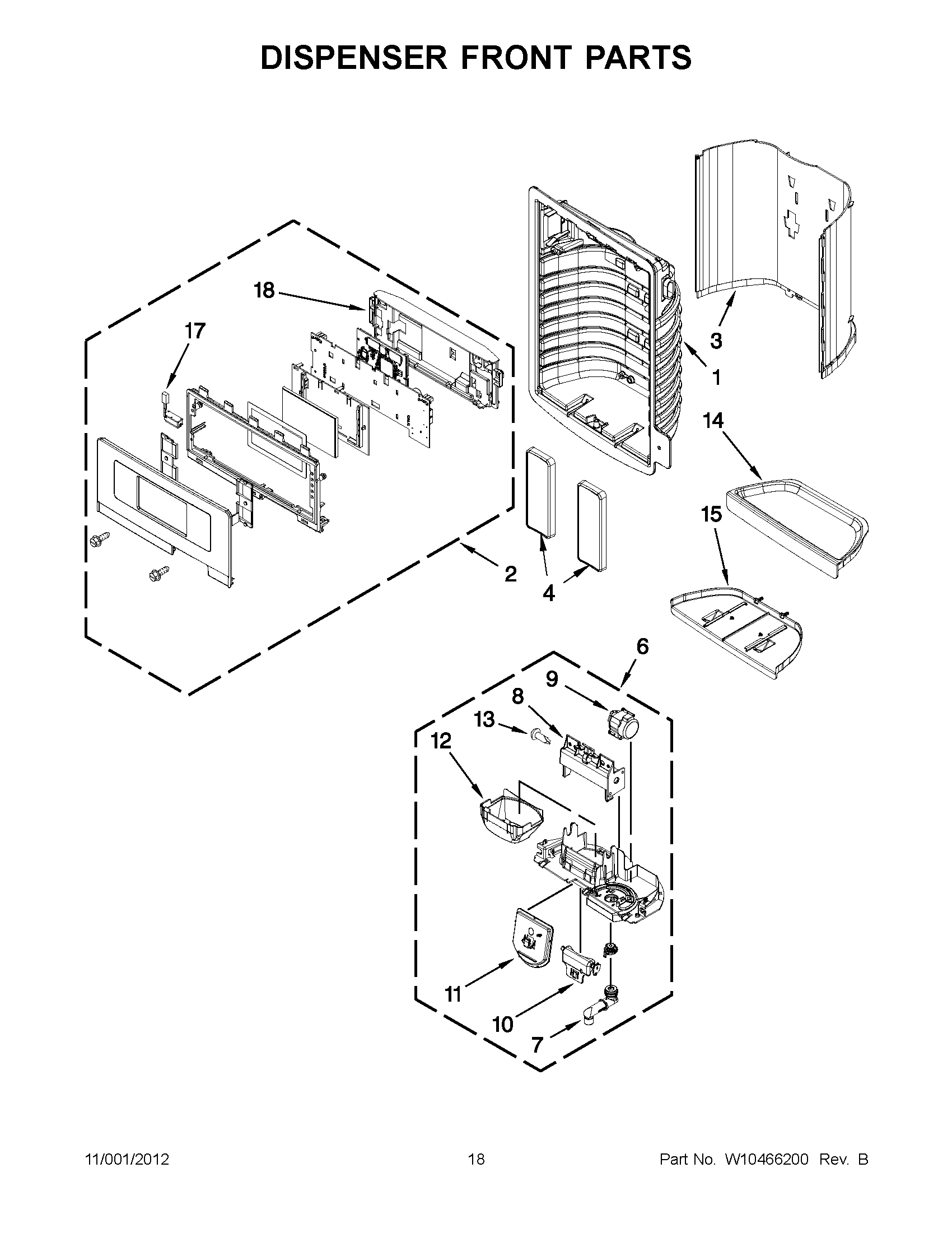

MFX2570AEM0 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10458217
3	FALSE, WALL, DISPENSER (STAINLESS)
3	FALSE WALL, DISPENSER (BLACK)
3	FALSE WALL, DISPENSER (WHITE)
4	PAD, ICE & WATER (BLACK)
4	PAD, ICE & WATER (WHITE)
4	ASSEMBLY, PAD (GREY)
6	MAY W10353552
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	MAY W10346124
11	DOOR, ICE
12	GUIDE, ICE
13	MAY 4449745
14	MAY W10267869
14	MAY W10267870
14	TRAY, DISPENSER STAINLESS
15	SLIDE, TRAY DISPENSER (BLACK)
15	MAY W10267860
15	SLIDE, TRAY DISPENSER (GREY)
17	MAY W10238083
18	MAY W10254277
