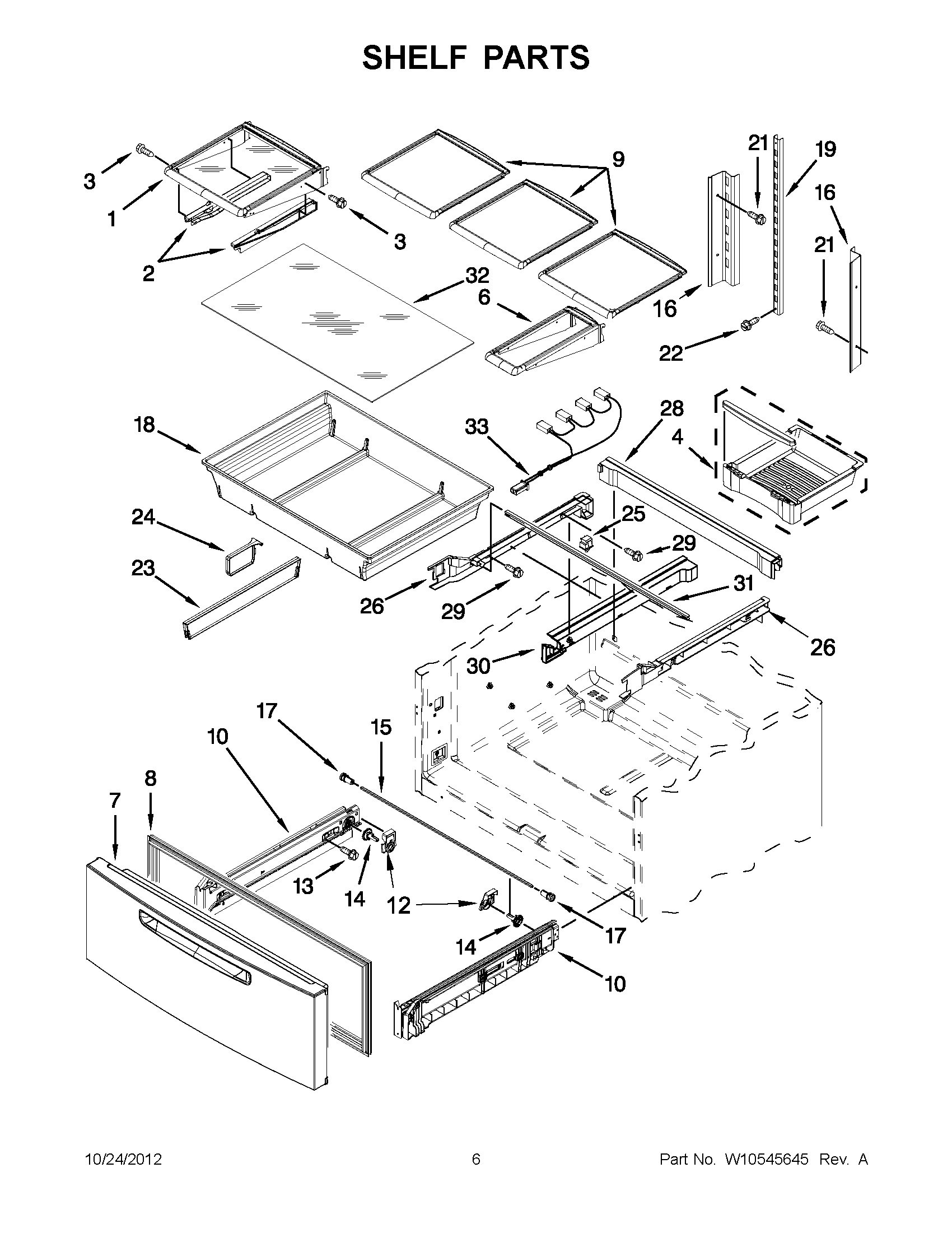

MFX2570AEM3 03 – SHELF PARTSadmin2025-04-26T09:07:22+00:00MFX2570AEM3 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | SHELF-GLIDE |
| 2 | GLIDE SNACK PAN-RH |
| 2 | GLIDE SNACK PAN-LH |
| 3 | SCREW |
| 4 | PAN, SNACK |
| 6 | SHELF-MINI |
| 7 | MAY 13107110B |
| 7 | MAY 13107110S |
| 7 | MAY 13107110W |
| 8 | GASKET-PANTRY (GREY) |
| 8 | GASKET-PANTRY (WHITE) |
| 8 | GASKET-PANTRY (BLACK) |
| 9 | SHELF, GLIDE |
| 10 | ADAPTER-PANTRY (LEFT) |
| 10 | ADAPTER-PANTRY (RIGHT) |
| 12 | COVER, GEAR (RIGHT HAND) |
| 12 | COVER, GEAR (LEFT HAND) |
| 13 | SCREW |
| 14 | GEAR, SPUR (RIGHT HAND) |
| 14 | GEAR, SPUR (LEFT HAND) |
| 15 | SHAFT, RACK |
| 16 | MAY W10251968 |
| 16 | LADDER, SIDE RH |
| 17 | COLLAR, GEAR |
| 18 | PAN-PANTRY-PO |
| 19 | MAY W10273464 |
| 21 | MAY 12990513 |
| 22 | SCREW (2) |
| 23 | DIVIDER-PANTRY-LRG |
| 24 | GRIPPER, PANTRY |
| 25 | W11291138 Whirlpool Refrigerator Door Switch |
| 26 | RAIL, PANTRY (RIGHT HAND) |
| 26 | RAIL, PANTRY (LEFT HAND) |
| 28 | RAIL, REAR PANTRY |
| 29 | Screw (8) |
| 30 | COVER, PANTRY RAIL (LEFT HAND) |
| 31 | MAY 12227305WD |
| 32 | GLASS, PANTRY SHELF |
| 33 | HARNESS, RC-LED |
