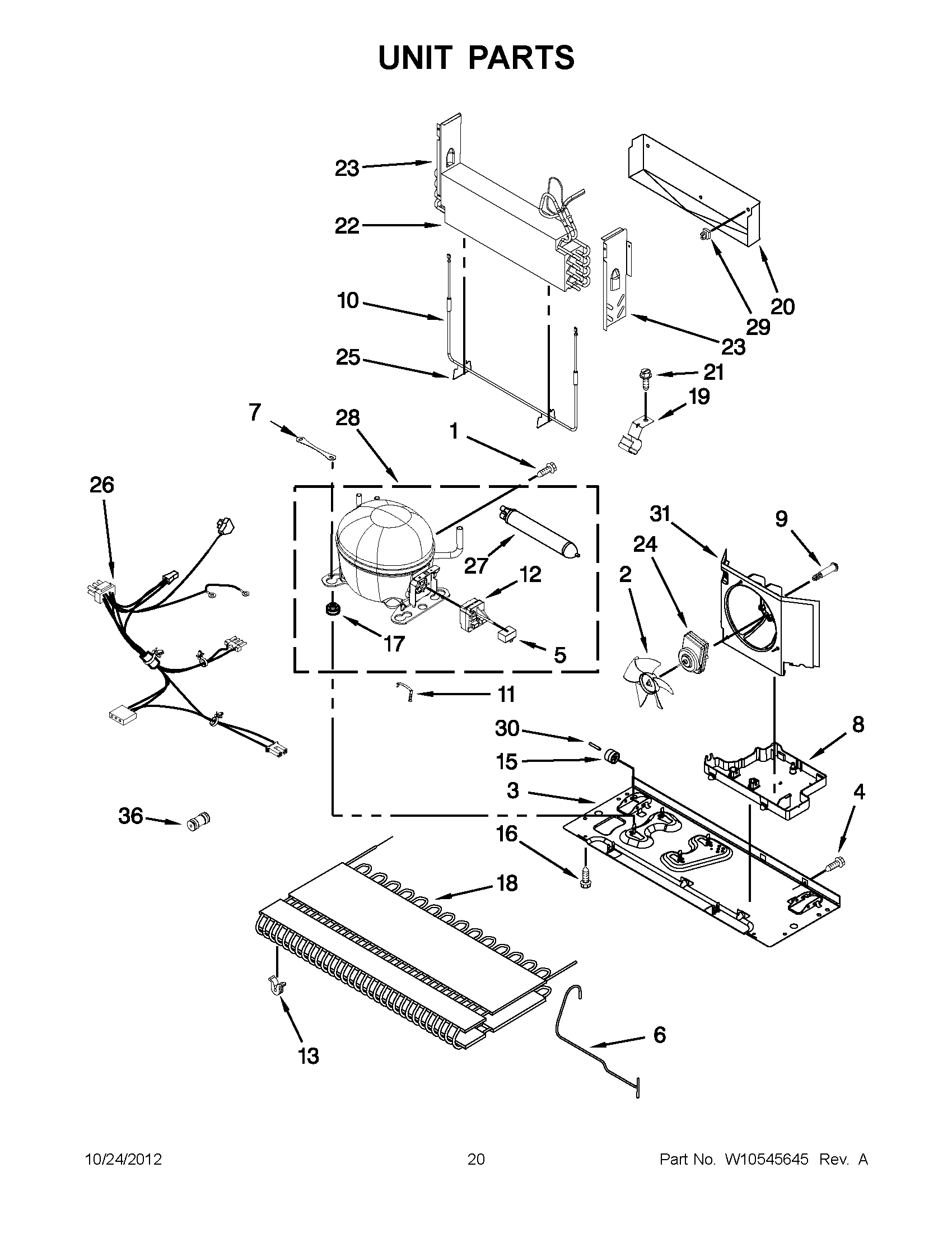

MFX2570AEM3 10 – UNIT PARTS

MFX2570AEM3 10 – UNIT PARTS

Written by

in

MFX2570AEM3 10 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	MAY W10350564
6	MAY W10233569
7	MAY W10236396
8	MAY W10296785
9	MAY W10216919
10	MAY 12729123
11	MAY W10174384
12	DEVICE, START
13	GROMMET, CONDENSER
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	SCREW
22	MAY W10313899
23	Dam (Left Side)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10450103
27	Drier
28	MAY W10445423
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
36	CONNECTOR, WATER
