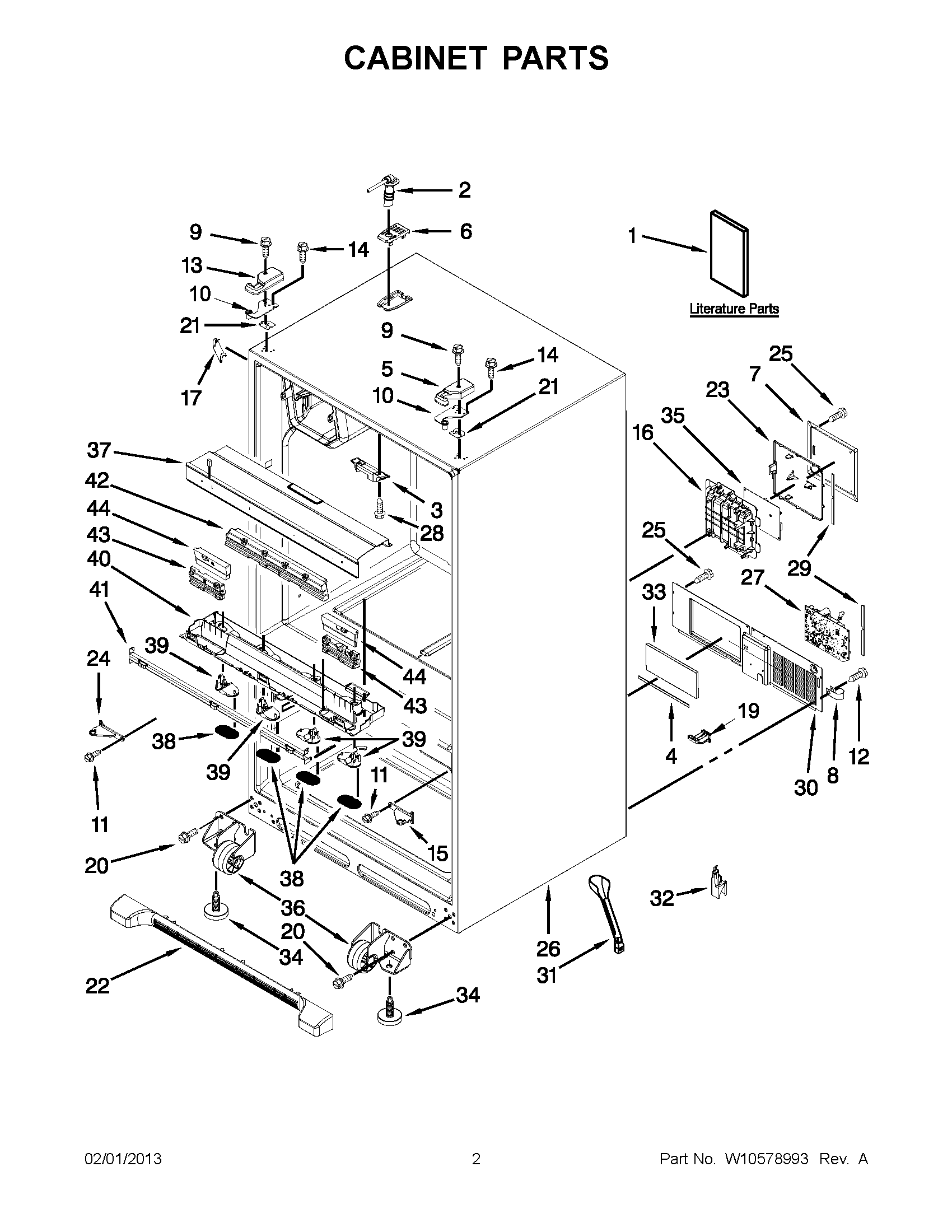

MFX2570AEM4 01 – CABINET PARTSadmin2025-04-26T09:09:15+00:00MFX2570AEM4 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10449125 |
| 1 | MAY W10476752 |
| 1 | MAY W10525816 |
| 2 | Tube W/Waterline, Fill-IM |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5 | MAY 12962302B |
| 5 | MAY 12962302AP |
| 5 | MAY 12962302W |
| 6 | MAY 12981401B |
| 6 | MAY 12981401W |
| 6 | MAY 12981401AP |
| 7 | MAY 12961602 |
| 8 | CLAMP, TUBE |
| 9 | MAY 12992602 |
| 10 | MAY 12963204ED |
| 10 | MAY 12963205ED |
| 11 | MAY W10339086 |
| 12 | SCREW (10) |
| 13 | MAY W10337634 |
| 13 | COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK) |
| 13 | COVER, TOP HINGE (LEFT) (GREY) |
| 14 | SCREW (6) |
| 15 | HINGE, CENTER (BLACK, RIGHT ) |
| 15 | HINGE, CENTER (RT) (GREY) |
| 15 | Hinge, Center (RT) (White) |
| 16 | MAY W10456699 |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 17 | COVER, CORNER (GREY) |
| 19 | MAY W10485986 |
| 20 | Screw (8) |
| 21 | MAY 12999502 |
| 21 | MAY 12999501 |
| 22 | MAY W10244559 |
| 22 | GRILLE, TOE (GREY) |
| 22 | GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK) |
| 23 | MAY W10296541 |
| 24 | Hinge, Center (LT) (White) |
| 24 | HINGE, CENTER (LT) (GREY) |
| 24 | HINGE, CENTER (BLACK, LEFT) |
| 25 | SCREW |
| 26 | LINER (NOT A SERVICEABLE PART) |
| 27 | CONTROL, ELECTRONIC POWER SAUPPLY |
| 28 | Screw (4) |
| 29 | GASKET-HV BOX |
| 30 | MAY W10211854 |
| 31 | TUBE-DRAIN |
| 32 | GUARD-WATER VALVE |
| 33 | Insulation, Sound |
| 34 | Brake, Foot |
| 35 | MAY W10467104 |
| 36 | ROLLER ASSEMBLY (RIGHT HAND) |
| 36 | ROLLER ASSEMBLY (LEFT HAND) |
| 37 | MAY W10525772 |
| 37 | MULLION, SECONDARY (GREY) |
| 37 | MAY W10525774 |
| 38 | MAY W10237349 |
| 39 | MODULE, LED LIGHT |
| 40 | HOUSING, MODULE |
| 41 | MAY W10492234 |
| 42 | MULLION, SECONDARY |
| 43 | WEDGE, SPACER LEFT HAND & RIGHT HAND |
| 44 | WEDGE, SPACER LEFT HAND & RIGHT HAND |
