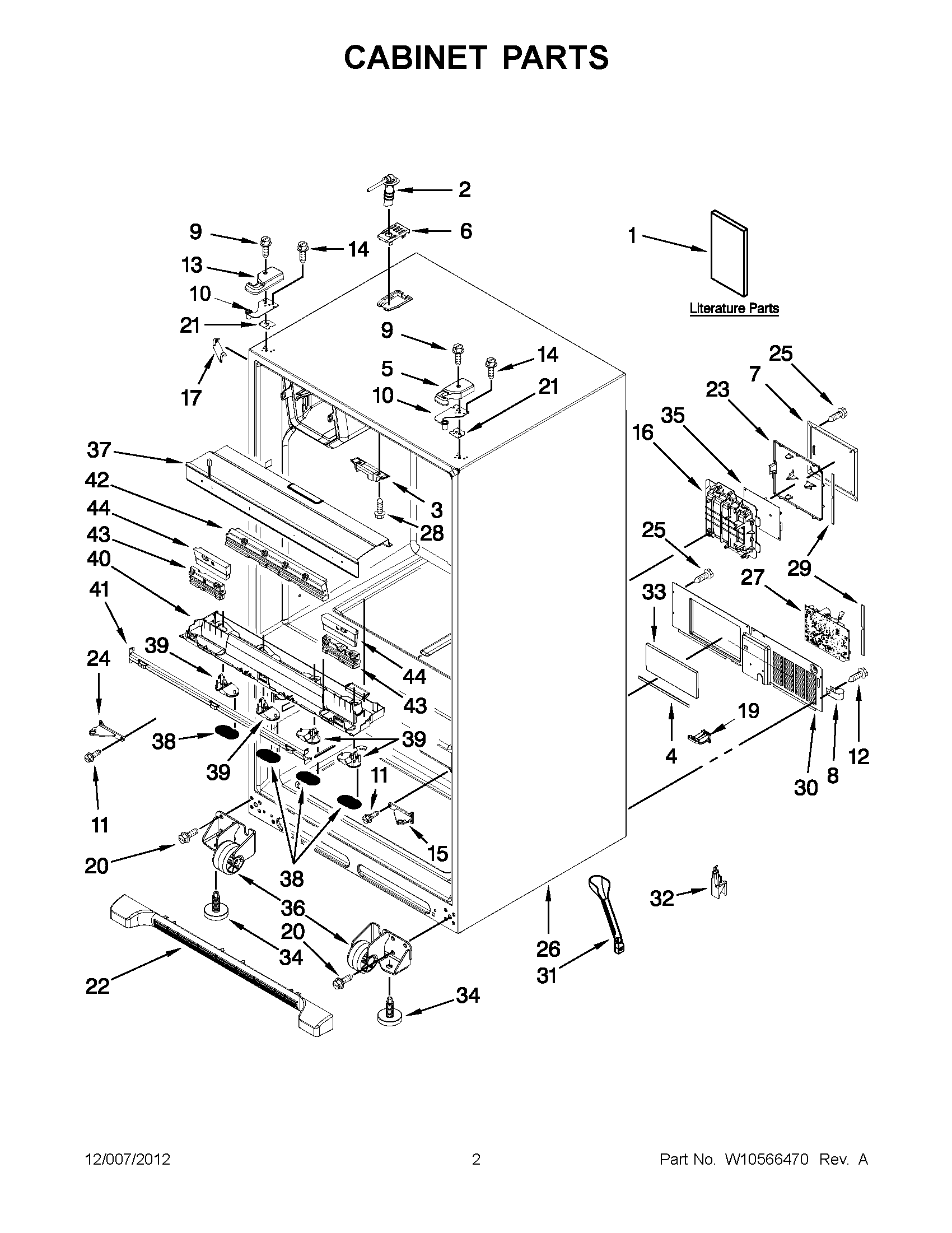

MFX2570AEW5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10449125
1	MAY W10476752
1	MAY W10525816
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302B
5	MAY 12962302AP
5	MAY 12962302W
6	MAY 12981401B
6	MAY 12981401W
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963204ED
10	MAY 12963205ED
11	MAY W10339086
12	SCREW (10)
13	MAY W10337634
13	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
13	COVER, TOP HINGE (LEFT) (GREY)
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
15	HINGE, CENTER (RT) (GREY)
15	Hinge, Center (RT) (White)
16	MAY W10456699
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
17	COVER, CORNER (GREY)
19	MAY W10485986
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	MAY W10244559
22	GRILLE, TOE (GREY)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	MAY W10296541
24	Hinge, Center (LT) (White)
24	HINGE, CENTER (LT) (GREY)
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	CONTROL, ELECTRONIC POWER SAUPPLY
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211854
31	TUBE-DRAIN
32	GUARD-WATER VALVE
33	Insulation, Sound
34	Brake, Foot
35	MAY W10467104
36	ROLLER ASSEMBLY (RIGHT HAND)
36	ROLLER ASSEMBLY (LEFT HAND)
37	MAY W10525772
37	MULLION, SECONDARY (GREY)
37	MAY W10525774
38	MAY W10237349
39	MODULE, LED LIGHT
40	HOUSING, MODULE
41	MAY W10492234
42	MULLION, SECONDARY
43	WEDGE, SPACER LEFT HAND & RIGHT HAND
44	WEDGE, SPACER LEFT HAND & RIGHT HAND
