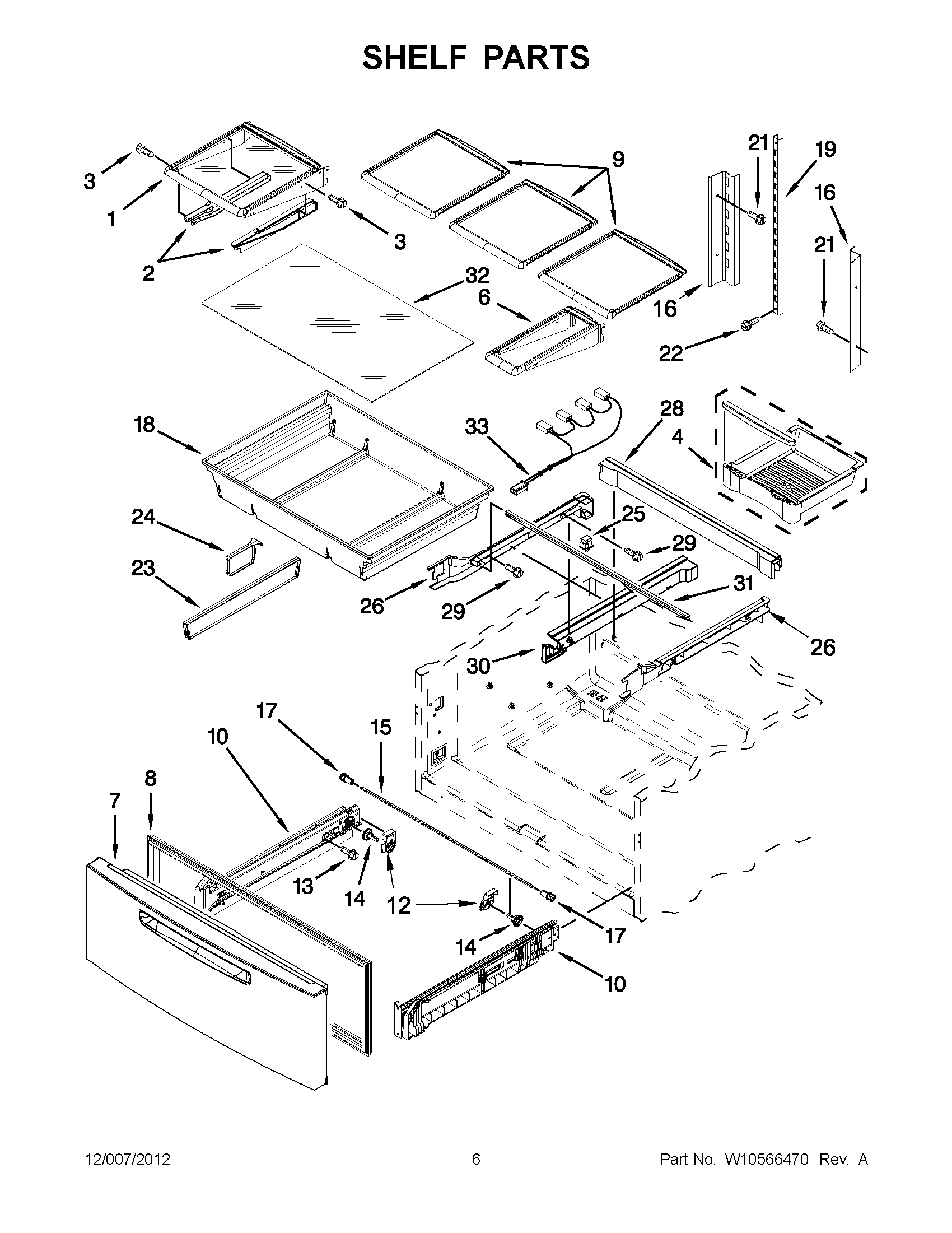

MFX2570AEW5 03 – SHELF PARTS

Products

PositionProduct
1SHELF-GLIDE
2GLIDE SNACK PAN-RH
2GLIDE SNACK PAN-LH
3SCREW
4PAN, SNACK
6SHELF-MINI
7MAY 13107110B
7MAY 13107110S
7MAY 13107110W
8GASKET-PANTRY (BLACK)
8GASKET-PANTRY (GREY)
8GASKET-PANTRY (WHITE)
9SHELF, GLIDE
10ADAPTER, PANTRY (LEFT HAND)
10ADAPTER, PANTRY (RIGHT HAND)
12COVER, GEAR (LEFT HAND)
12COVER, GEAR (RIGHT HAND)
13SCREW
14GEAR, SPUR (RIGHT HAND)
14GEAR, SPUR (LEFT HAND)
15SHAFT, RACK
16MAY W10251968
16LADDER, SIDE RH
17COLLAR, GEAR
18MAY W10563110
19MAY W10273464
21MAY 12990513
22SCREW (2)
23DIVIDER-PANTRY-LRG
24GRIPPER, PANTRY
25W11291138 Whirlpool Refrigerator Door Switch
26RAIL, PANTRY (LEFT HAND)
26RAIL, PANTRY (RIGHT HAND)
28RAIL, REAR PANTRY
29Screw (8)
30COVER, PANTRY RAIL (LEFT HAND)
31MAY 12227305WD
32GLASS, PANTRY SHELF
33HARNESS, RC-LED
