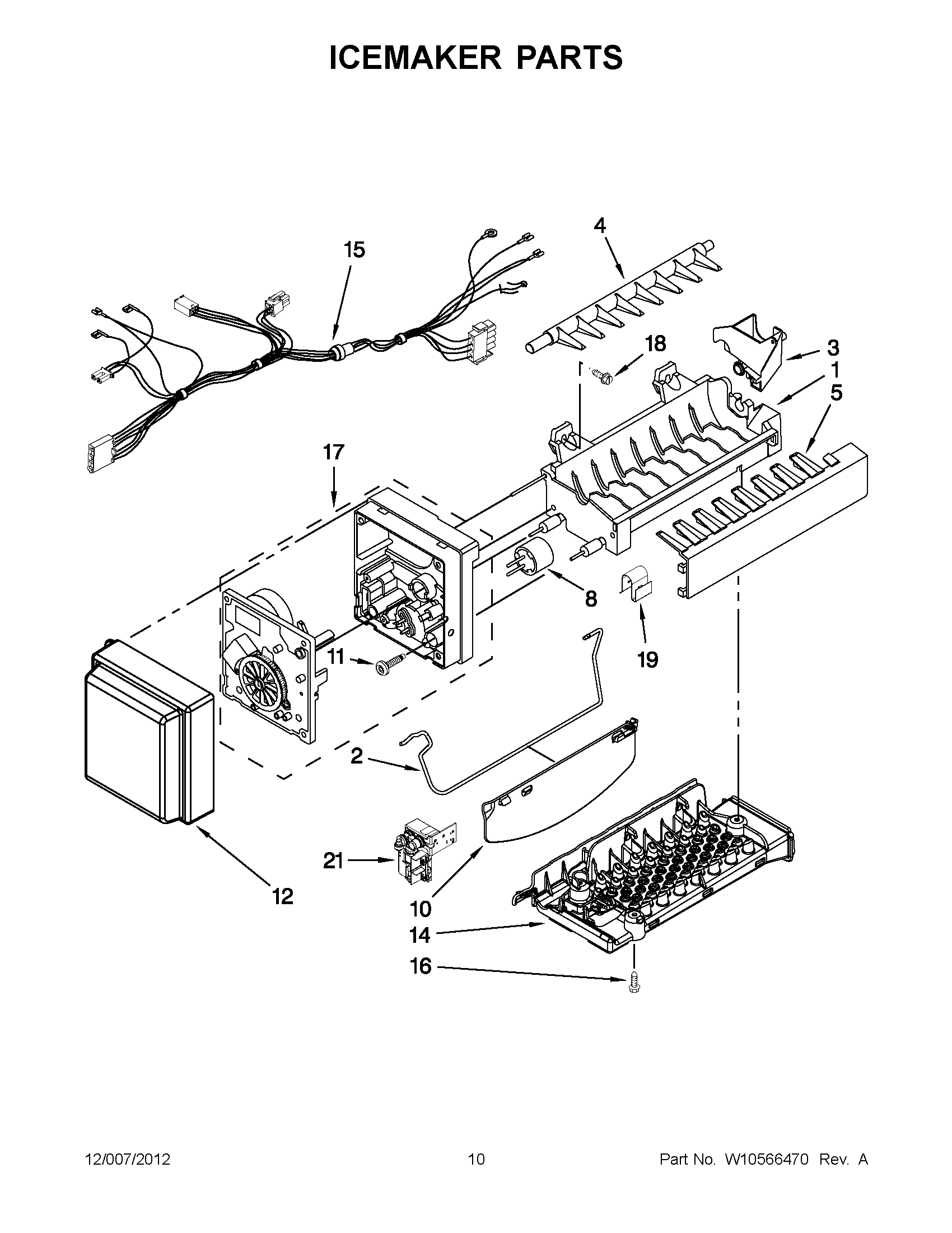

MFX2570AEW5 05 – ICEMAKER PARTS
Written by
in
MFX2570AEW5 05 – ICEMAKER PARTS
Products
Position
Product
1
ASSEMBLY, MOLD AND HEATER
2
MAY W10378254
3
MAY W10377998
4
MAY W10318914
5
ICE STRIPPER
8
MAY W10290336
10
MAY W10351019
11
MAY 8533917
12
COVER, FRONT
14
IMPINGER ASSY.
15
MAY W10404016
16
SCREW (10)
17
ASSEMBLY, MODULE
18
MAY W10068250
19
Clip
21
MAY W10498990
100
ASSEMBLY, ICEMAKER
←
