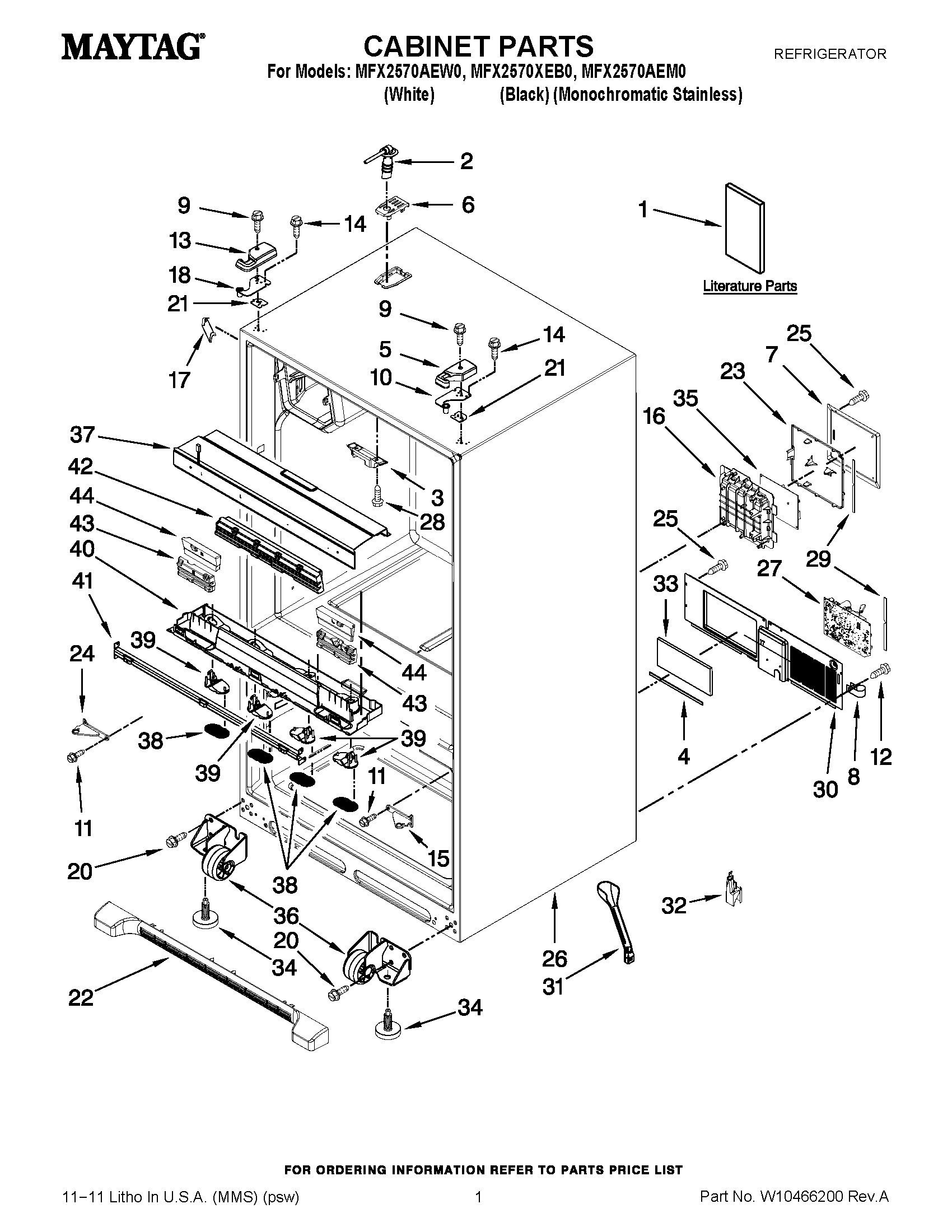

MFX2570XEB0 01 – CABINET PARTS

MFX2570XEB0 01 – CABINET PARTS

Written by

in

MFX2570XEB0 01 – CABINET PARTS

Products

PositionProduct
1MAY W10449125
1MAY W10450548
1MAY W10450076
2Tube W/Waterline, Fill-IM
3Block, Pivot
4MAY B5759655
5MAY 12962302W
5MAY 12962302AP
5MAY 12962302B
6MAY 12981401W
6MAY 12981401B
6MAY 12981401AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963205ED
11MAY 489470
12SCREW (10)
13MAY 12962301AP
13MAY 12962301W
13MAY 12962301B
14SCREW (6)
15HINGE, CENTER (BLACK, RIGHT )
15HINGE, CENTER (RT) (GREY)
15Hinge, Center (RT) (White)
16MAY W10285271
17COVER, CORNER (GREY)
17COVER, CORNER (BLACK)
17Cover, Corner (2) (White)
18MAY 12963204ED
20Screw (8)
21MAY 12999502
21MAY 12999501
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22MAY W10244559
22GRILLE, TOE (GREY)
23MAY W10296541
24HINGE, CENTER (BLACK, LEFT)
24HINGE, CENTER (LT) (GREY)
24Hinge, Center (LT) (White)
25SCREW
26LINER (NOT A SERVICEABLE PART)
27CONTROL, ELECTRONIC POWER SAUPPLY
28Screw (4)
29GASKET-HV CNTRL-2
30MAY W10211854
31MAY W10210988
32GUARD-WATER VALVE
33Insulation, Sound
34Brake, Foot
35MAY W10404689
36ROLLER ASSY. (FRONT) (RIGHT)
36ROLLER ASSY. (FRONT) (LEFT)
37MAY W10296396
37MULLION-INCL.HEATR (BLACK)
37MULLION-INCL.HEATR (WHITE)
38MAY W10237349
39MODULE, LED LIGHT
40HOUSING, MODULE
41MAY W10323211
42MULLION, SECONDARY
43WEDGE, SPACER LEFT HAND & RIGHT HAND
44WEDGE, SPACER LEFT HAND & RIGHT HAND
