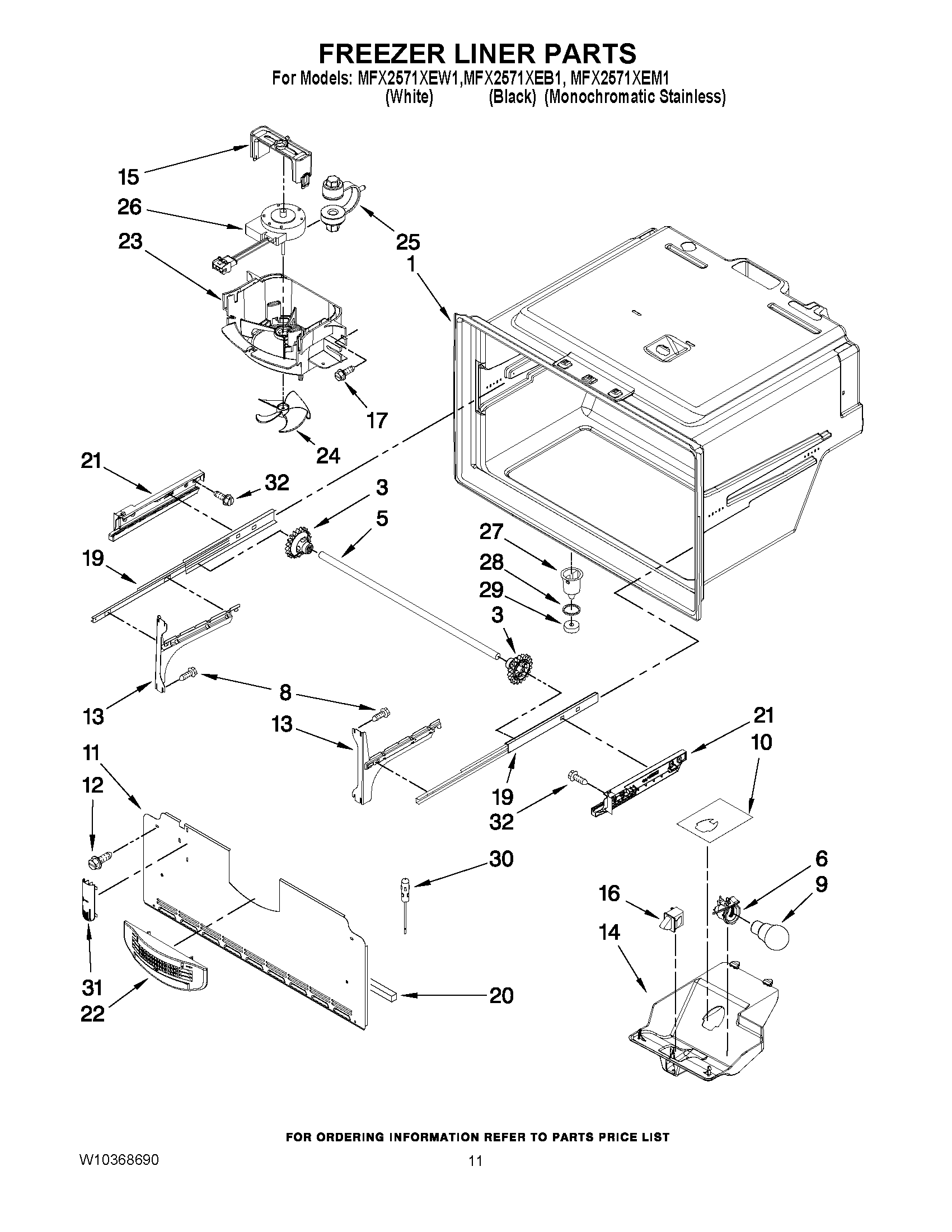

MFX2571XEB1 06 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	SHAFT
6	W11447232 Whirlpool Refrigerator Socket
8	Screw (8)
9	MAY 2255743
10	FOIL-FZ LIGHT
11	COVER, EVAP
12	SCREW (10)
13	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MODULE, FREEZER LIGHT
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
19	MAY W10120018
20	GASKET, BOTTOM
21	MAY W10284682
21	MAY W10284683
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MOTOR, EVAPORATOR
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	THERMISTOR
31	MAY 12815301
32	Screw (6)
