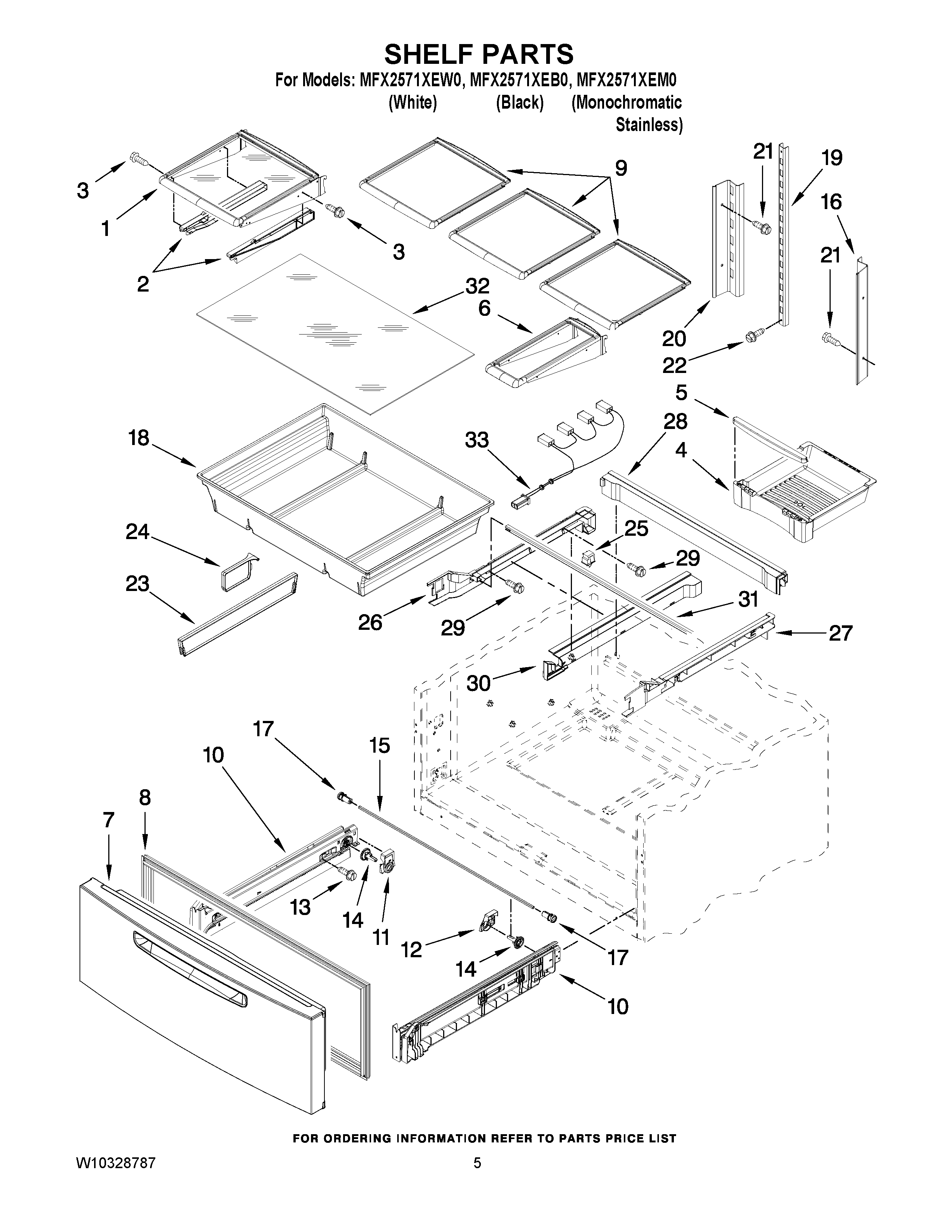

MFX2571XEM0 03 – SHELF PARTS

MFX2571XEM0 03 – SHELF PARTS

Written by

in

MFX2571XEM0 03 – SHELF PARTS

Products

PositionProduct
1SHELF-GLIDE
2GLIDE SNACK PAN-RH
2GLIDE SNACK PAN-LH
3SCREW
4PAN-SNACK
5HANDLE-SNACK PAN
6SHELF-MINI
7MAY 13107102B
7MAY 13107102S
7MAY 13107102W
8MAY W10294113
8MAY W10294114
8MAY W10294107
9SHELF, GLIDE
10ADAPTER, PANTRY (LEFT HAND)
10ADAPTER, PANTRY (RIGHT HAND)
11GEAR, SPUR
12COVER, GEAR (LEFT HAND)
12COVER, GEAR (RIGHT HAND)
13SCREW
14SCREW (STAINLESS)
15SHAFT, RACK
16LADDER, SIDE RH
17COLLAR, GEAR
18MAY W10268846
19MAY W10273464
20MAY W10251968
21MAY 12990513
22MAY 12990515
23MAY W10285573
24MAY W10285594
25W11291138 Whirlpool Refrigerator Door Switch
26RAIL, PANTRY (LEFT HAND)
27RAIL, PANTRY (RIGHT HAND)
28RAIL, REAR PANTRY
29Screw (8)
30COVER, PANTRY RAIL (LEFT HAND)
31MAY 12227305
32GLASS, PANTRY SHELF
33MAY W10284534
