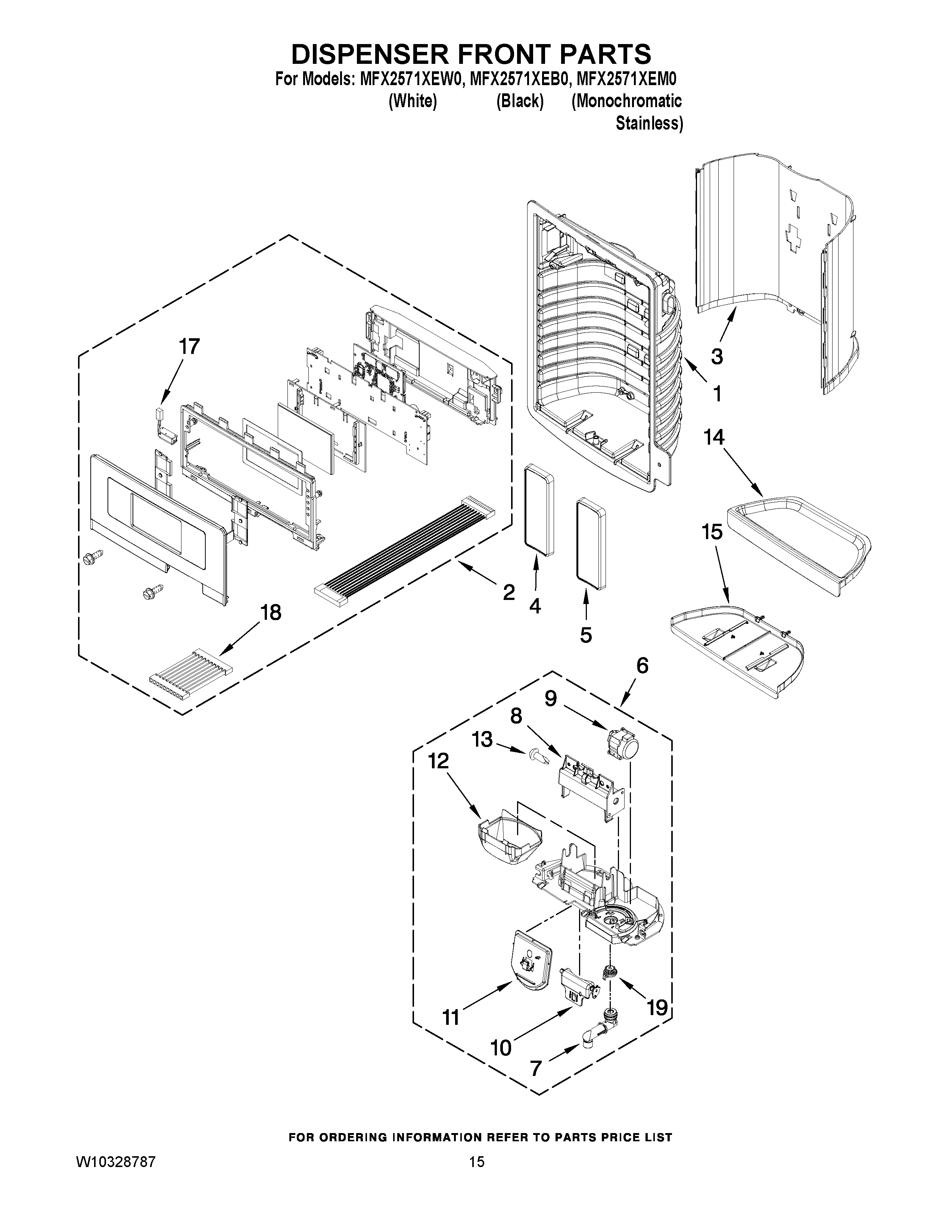

MFX2571XEM0 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10296554
2	MAY W10296550
2	MAY W10296555
3	FALSE WALL, DISPENSER (WHITE)
3	FALSE WALL, DISPENSER (BLACK)
3	FALSE, WALL, DISPENSER (STAINLESS)
4	MAY W10308363
4	MAY W10308362
5	MAY W10307626
5	MAY W10307625
6	SEPARATOR ASSEMBLY (APOLLO GREY)
6	MAY W10215987
6	MAY W10180830
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	SUPPORT-ICE DOOR
11	MAY W10174811
12	GUIDE, ICE
13	MAY 4449745
14	TRAY, DISPENSER (STAINLESS)
14	MAY W10267870
14	MAY W10267869
15	MAY W10267860
15	SLIDE, TRAY DISPENSER (GREY)
15	SLIDE, TRAY DISPENSER (BLACK)
17	MAY W10238083
18	HARNESS-JUMPER
19	MAY 2305348
