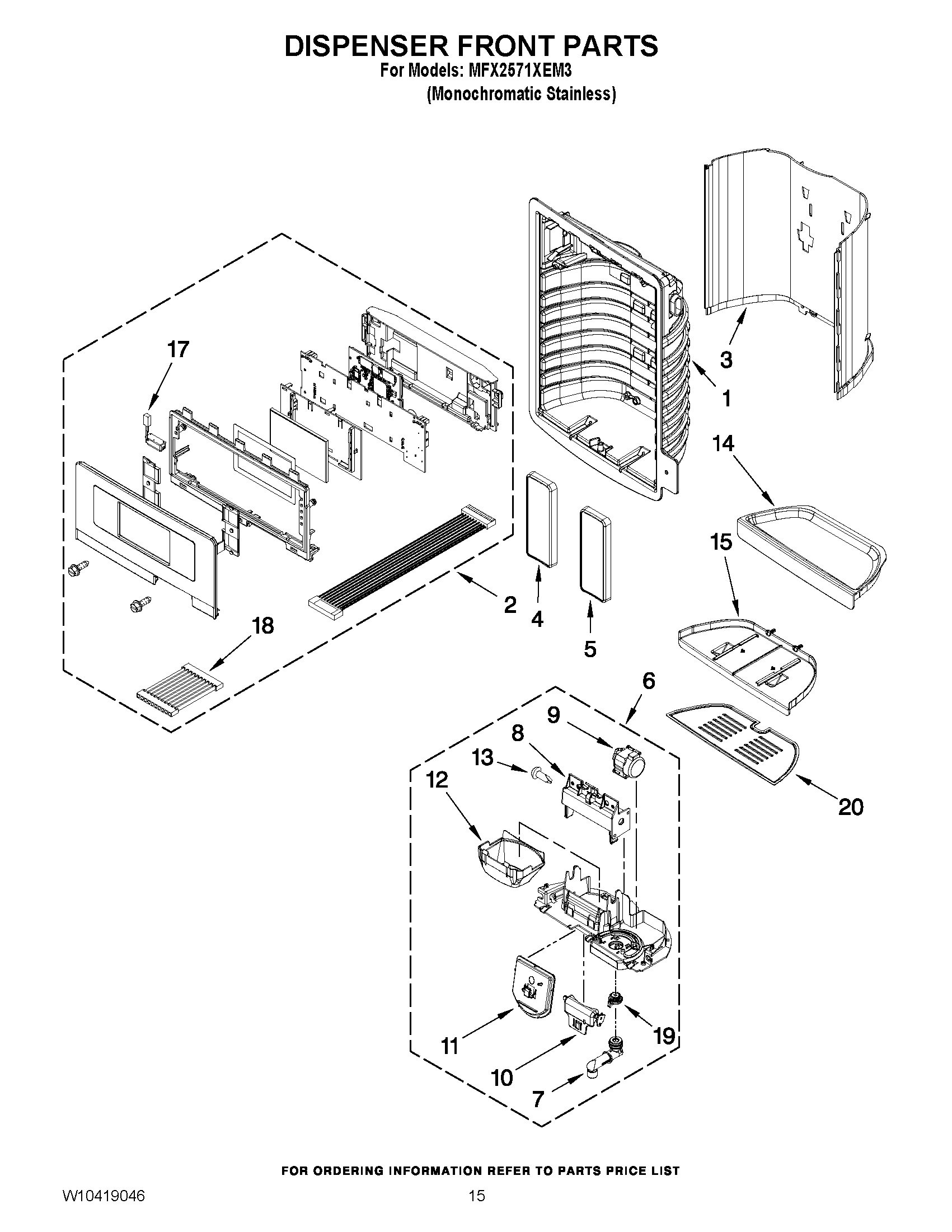

MFX2571XEM3 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10411129
3	FALSE, WALL, DISPENSER (STAINLESS)
4	MAY W10334789
5	MAY W10334813
6	SEPARATOR ASSY. (STAINLESS)
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	SUPPORT-ICE DOOR
11	MAY W10174811
12	GUIDE, ICE
13	MAY 4449745
14	TRAY, DISPENSER (STAINLESS)
15	SLIDE, TRAY DISPENSER (GREY)
17	MAY W10238083
18	HARNESS-JUMPER
19	MAY 2305348
20	MAY W10215957
