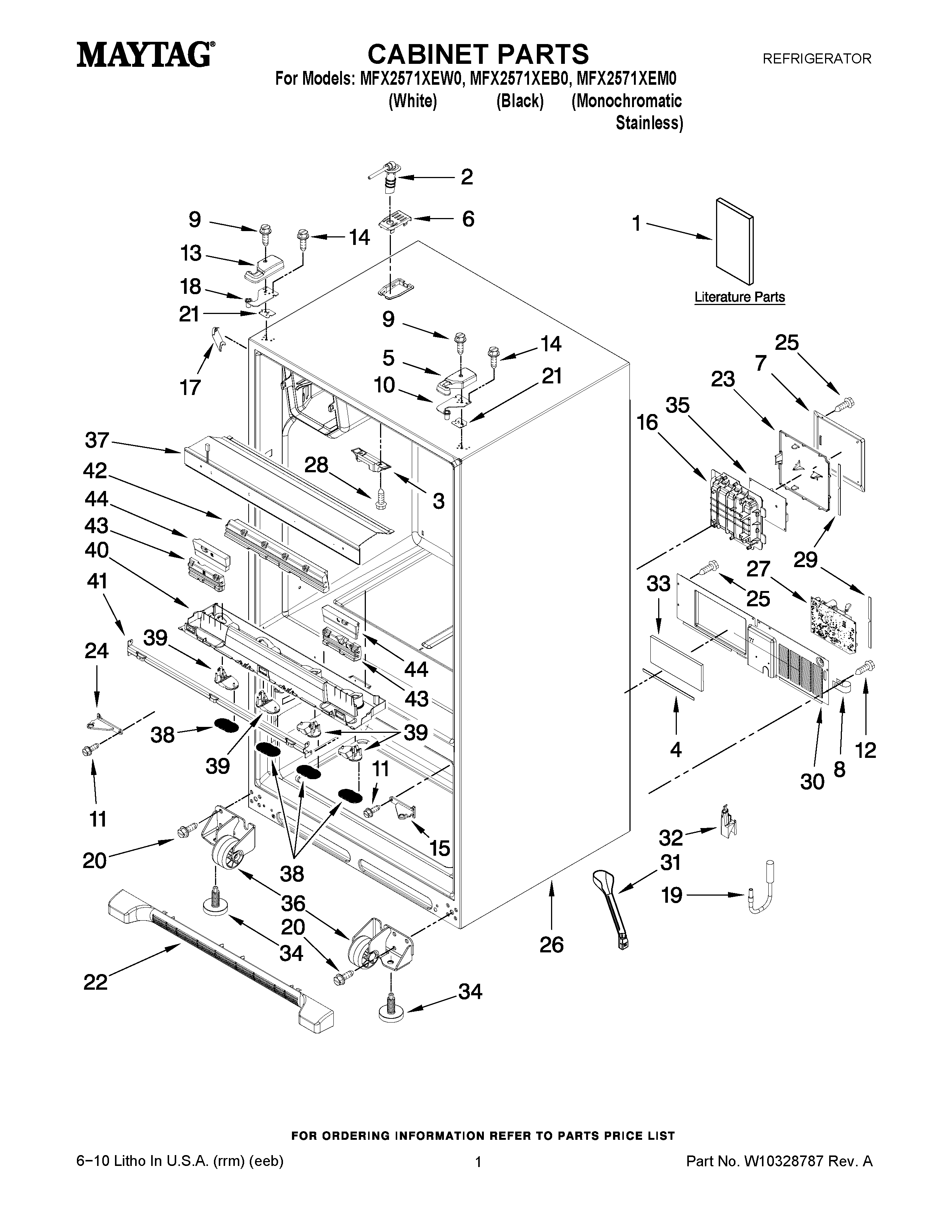

MFX2571XEW0 01 – CABINET PARTS

Products

Position	Product
1	MAY W10294936
1	MAY W10295091
1	MAY W10295062
2	Tube W/Waterline, Fill-IM
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302B
5	MAY 12962302AP
5	MAY 12962302W
6	MAY 12981401B
6	MAY 12981401W
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301AP
13	MAY 12962301B
13	MAY 12962301W
14	SCREW (6)
15	Hinge, Center (RT) (White)
15	HINGE, CENTER (RT) (GREY)
15	Hinge, Center (RT) (Black)
16	MAY W10285271
17	Cover, Corner (2) (White)
17	COVER, CORNER (GREY)
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
19	MAY W10223786
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
22	MAY W10244559
22	GRILLE, TOE (GREY)
23	MAY 12957702K
24	Hinge, Center (LT) (White)
24	HINGE, CENTER (LT) (GREY)
24	Hinge, Center (LT) (Black)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	CONTROL, ELECTRONIC POWER SAUPPLY
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211858
31	MAY W10210988
32	MAY W10236761
33	Insulation, Sound
34	Brake, Foot
35	MAY W10285198
36	ROLLER ASSY. (FRONT) (LEFT)
36	ROLLER ASSY. (FRONT) (RIGHT)
37	MAY W10296396
37	MULLION-INCL.HEATR (BLACK)
37	MULLION-INCL.HEATR (WHITE)
38	MAY W10237349
39	MODULE, LED LIGHT
40	HOUSING, MODULE
41	MAY W10323211
42	MULLION, SECONDARY
43	WEDGE, SPACER LEFT HAND & RIGHT HAND
44	WEDGE, SPACER LEFT HAND & RIGHT HAND
