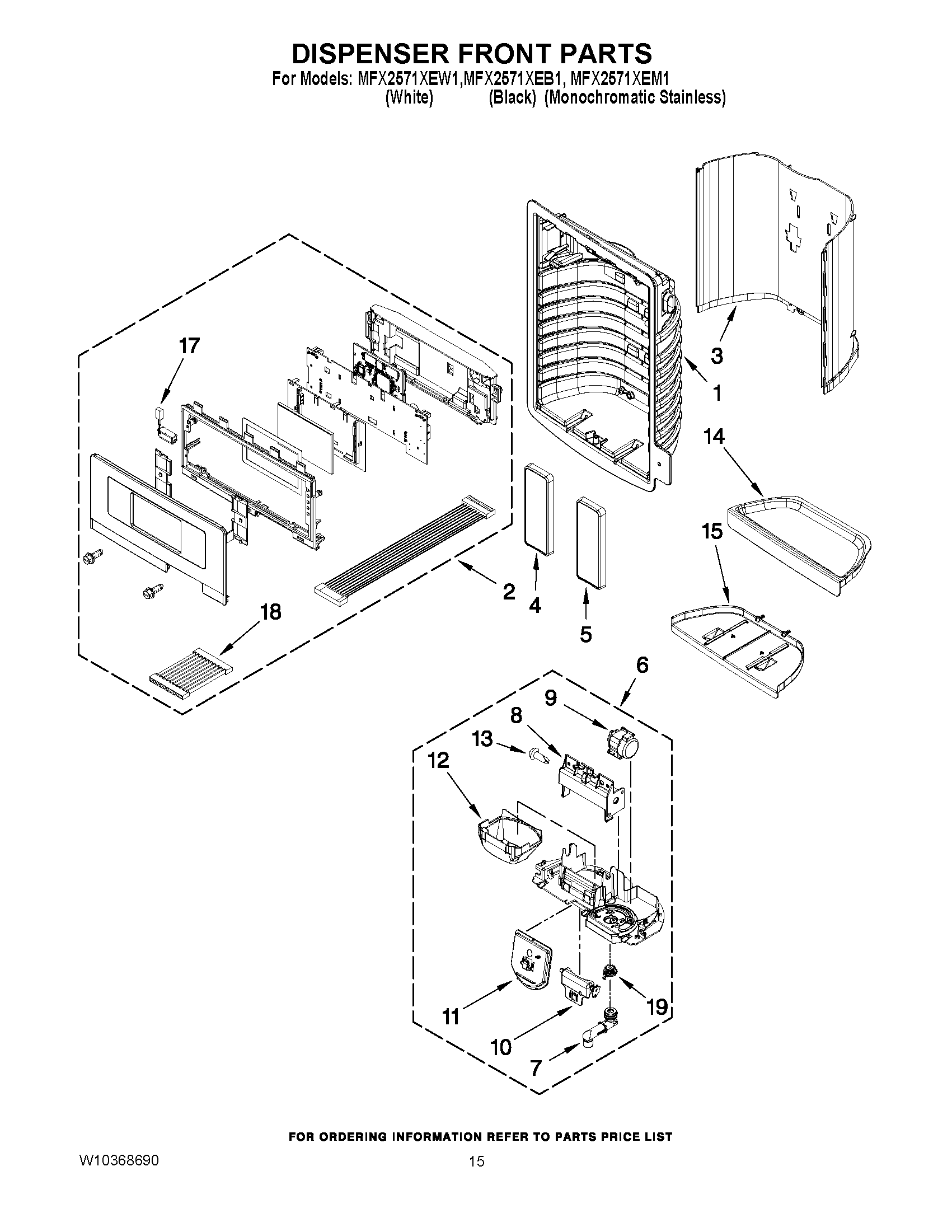

MFX2571XEW1 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10333276
2	MAY W10333277
2	MAY W10333275
3	FALSE, WALL, DISPENSER (STAINLESS)
3	FALSE WALL, DISPENSER (WHITE)
3	FALSE WALL, DISPENSER (BLACK)
4	MAY W10334792
4	MAY W10334789
5	MAY W10334813
5	MAY W10334816
6	SEPARATOR ASSY. (WHITE)
6	SEPARATOR ASSY. (BLACK)
6	SEPARATOR ASSY. (STAINLESS)
7	MAY 2316647
8	MAY W10174827
9	MAY W10205979
10	SUPPORT-ICE DOOR
11	MAY W10174811
12	GUIDE, ICE
13	MAY 4449745
14	TRAY, DISPENSER (STAINLESS)
14	MAY W10267869
14	MAY W10267870
15	SLIDE, TRAY DISPENSER (BLACK)
15	MAY W10267860
15	SLIDE, TRAY DISPENSER (GREY)
17	MAY W10238083
18	HARNESS-JUMPER
19	MAY 2305348
