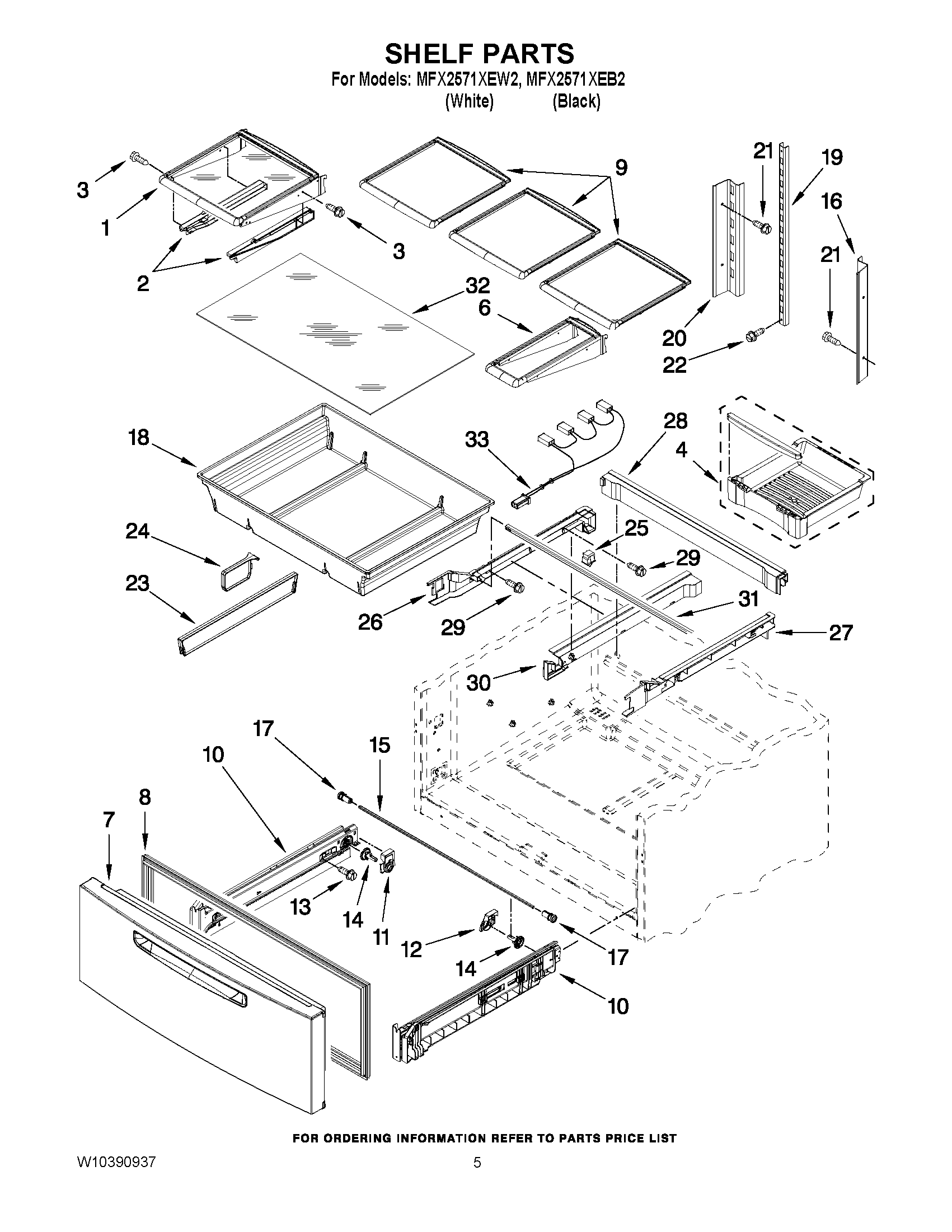

MFX2571XEW2 03 – SHELF PARTS

Products

Position	Product
1	SHELF-GLIDE
2	GLIDE SNACK PAN-RH
2	GLIDE SNACK PAN-LH
3	SCREW
4	PAN-SNACK
6	SHELF, MINI
7	MAY 13107102W
7	MAY 13107102B
8	MAY W10294107
8	MAY W10294113
9	SHELF, GLIDE
10	ADAPTER, PANTRY (LEFT HAND)
10	ADAPTER, PANTRY (RIGHT HAND)
11	GEAR, SPUR
12	COVER, GEAR (RIGHT HAND)
12	COVER, GEAR (LEFT HAND)
13	SCREW
14	SCREW (STAINLESS)
15	SHAFT, RACK
16	LADDER, SIDE RH
17	COLLAR, GEAR
18	MAY W10268846
19	MAY W10273464
20	MAY W10251968
21	MAY 12990513
22	MAY 12990515
23	MAY W10285573
24	MAY W10285594
25	W11291138 Whirlpool Refrigerator Door Switch
26	RAIL, PANTRY (LEFT HAND)
27	RAIL, PANTRY (RIGHT HAND)
28	RAIL, REAR PANTRY
29	Screw (8)
30	COVER, PANTRY RAIL (LEFT HAND)
31	MAY 12227305
32	GLASS, PANTRY SHELF
33	HARNESS, RC-LED
