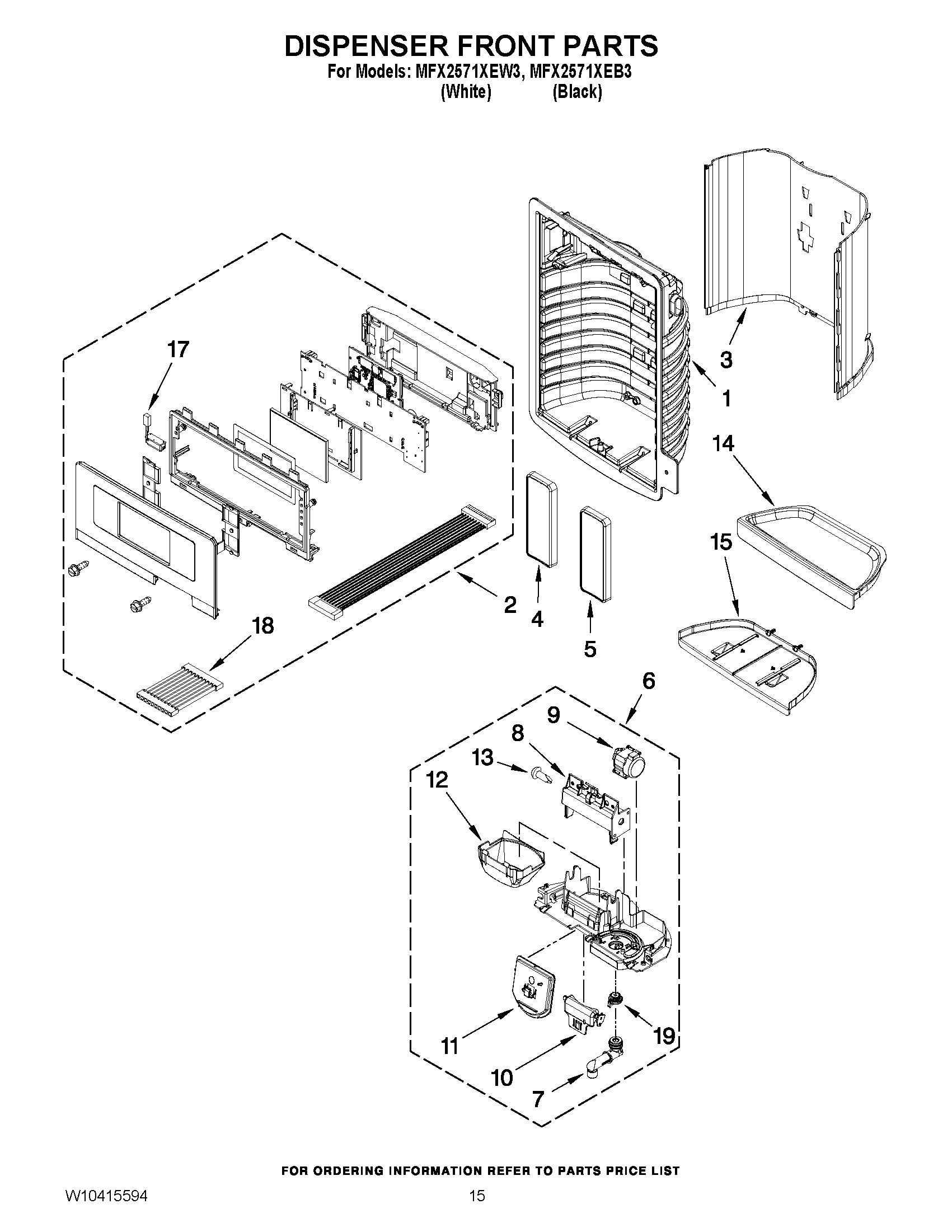

MFX2571XEW3 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10333277
2MAY W10333276
3FALSE WALL, DISPENSER (WHITE)
3FALSE WALL, DISPENSER (BLACK)
4MAY W10334789
4MAY W10334792
5MAY W10334816
5MAY W10334813
6SEPARATOR ASSY. (BLACK)
6SEPARATOR ASSY. (WHITE)
7MAY 2316647
8MAY W10174827
9MAY W10205979
10SUPPORT-ICE DOOR
11MAY W10174811
12GUIDE, ICE
13MAY 4449745
14MAY W10267869
14MAY W10267870
15SLIDE, TRAY DISPENSER (BLACK)
15MAY W10267860
17MAY W10238083
18HARNESS-JUMPER
19MAY 2305348
