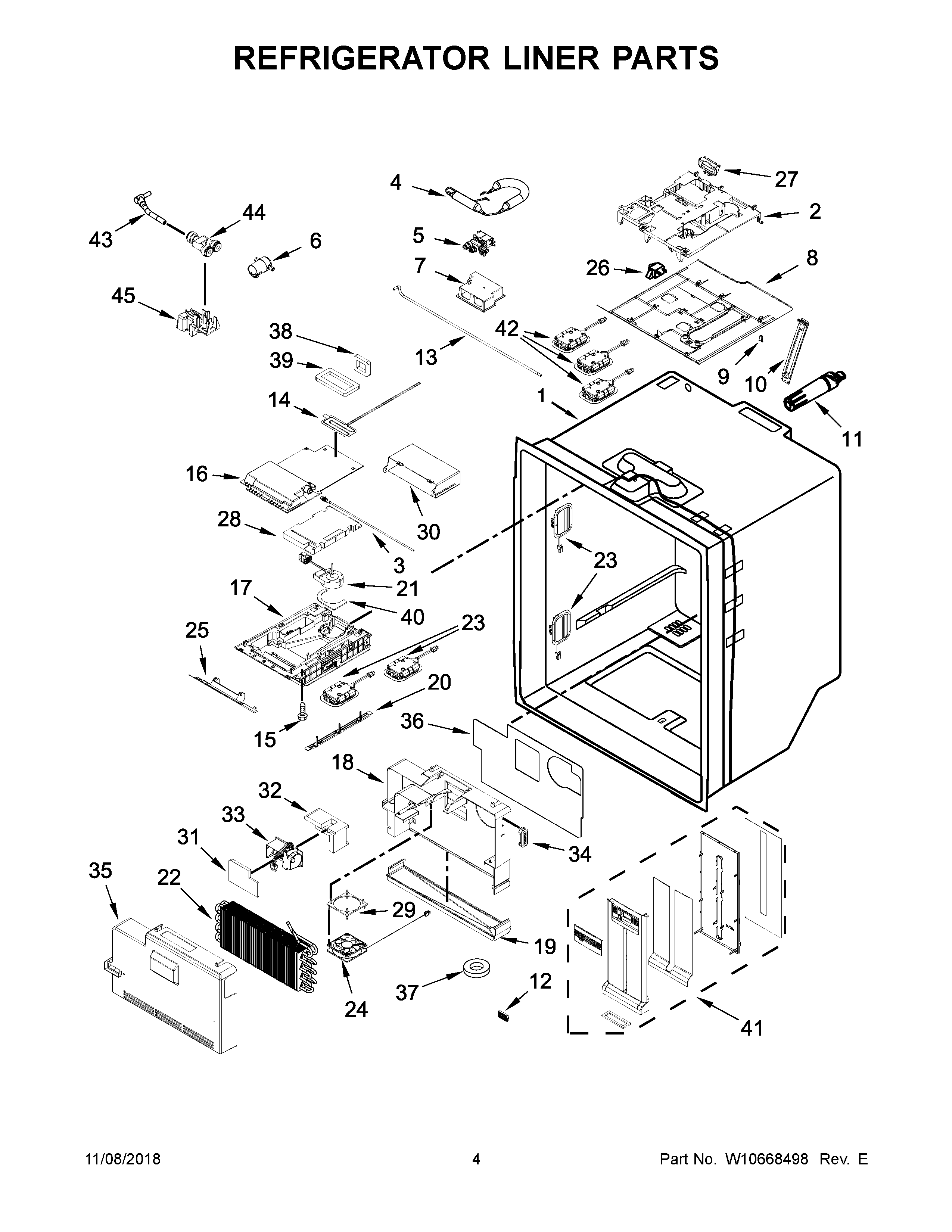

MFX2876DRE00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY W10537498
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10635863
NI	MAY W10570599
2	HOUSING, WATER SYSTEM
3	MAY W10736144
4	MAY W10711460
5	MAY W10341329
6	HOUSING, WATER FILTER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
7	ENCLOSURE, WATER VALVE
8	MAY W10669663
9	LATCH, PUSH
10	MAY W10277949
11	FILTER, WATER
12	FILTER, AIR
13	MAY W10674102
14	MAY W10706850
15	SCREW
16	MAY W10598013
17	MAY W10492817
18	MAY W10503486
19	MAY W10525237
20	MAY W10505516
21	MAY W10833801
22	MAY W10630535
23	MAY W10637153
24	MAY W10724602
25	ASSEMBLY, FASCIA
26	SWITCH, LIGHT (2)
27	MAY W10470981
28	MAY W10280983
29	MAY W10389152
30	MAY W10635022
31	MAY W10503491
32	MAY W10503492
33	MAY W10248595
34	MAY W10438957
35	MAY W10503500
36	MAY W10465948
37	MAY W10510863
38	MAY W10320706
39	MAY W10280988
40	MAY W10392172
41	ASSEMBLY, AIR TOWER
42	MAY W10623956
43	WATERLINE
44	CONNECTOR, WATER TUBE
45	BRACKET, CONNECTOR
