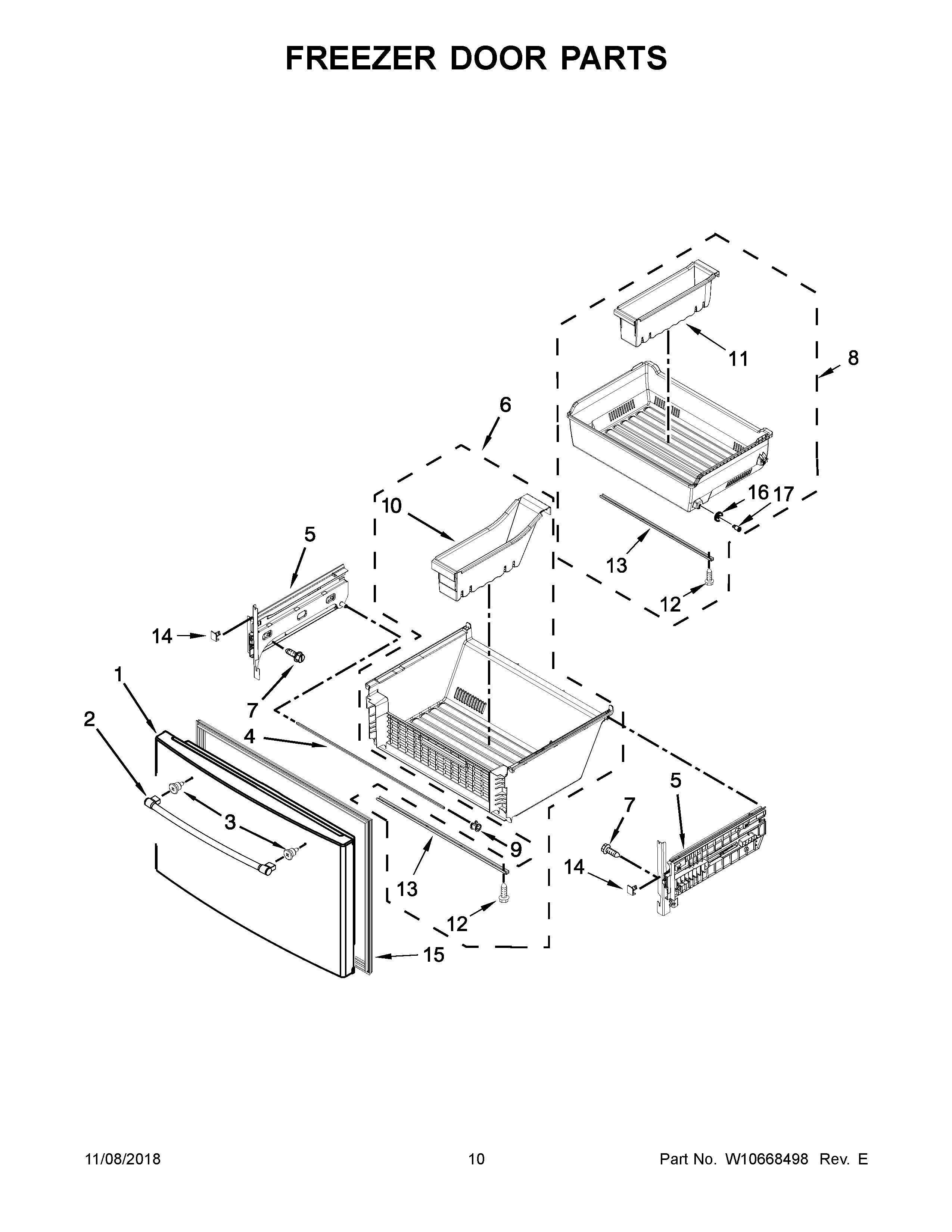

MFX2876DRE00 06 – FREEZER DOOR PARTS

MFX2876DRE00 06 – FREEZER DOOR PARTS

Written by

in

MFX2876DRE00 06 – FREEZER DOOR PARTS

Products

Position	Product
1B	DOOR, FREEZER (STAINLESS)
1A	DOOR, FREEZER (BLACK)
1	DOOR, FREEZER (WHITE)
2	HANDLE, DOOR (STAINLESS)
3	MAY W10460893
4	MAY W10503522
5	MAY W10795770
5A	MAY W10795768
6	MAY W10650427
7	SCREW
8	BIN, UPPER
9	MAY W10709748
10	MAY W10507444
11	MAY W10485654
12	SCREW (STAINLESS)
13	SUPPORT, PAN
14A	MAY W10485089
14	MAY W10485096
15A	MAY W10248748
15	MAY W10587578
15B	MAY W10248749
16	MAY W10248555
17	MAY W10643690
