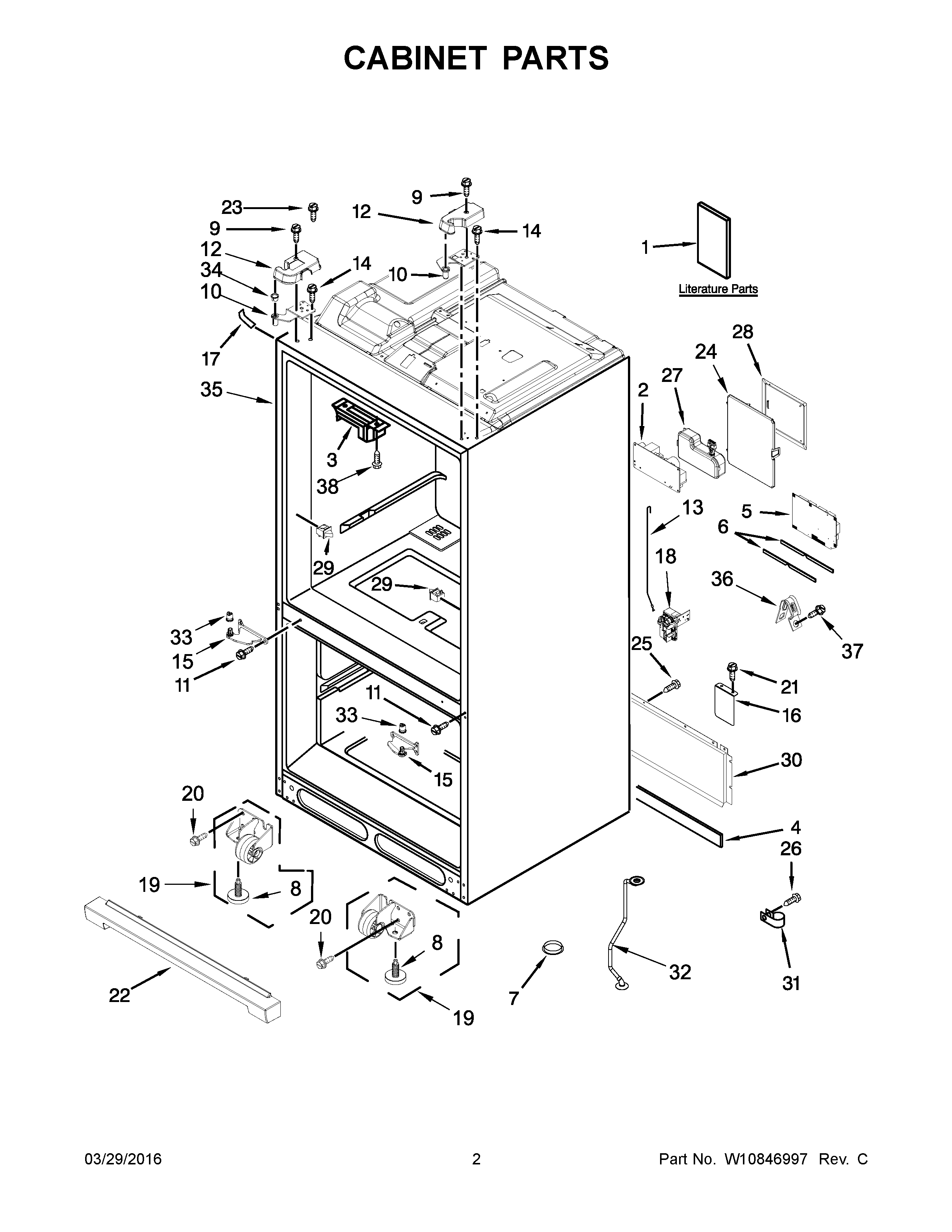

MFX2876DRE01 02 – CABINET PARTS

Products

Position	Product
1B	TECH SHEET, ENERGY GUIDE
1A	OWNERS MANUAL
1	MAY W10760679
2	SUPPLY, POWER
3	MAY W10344432
4	MAY W10505487
5	MAY W10751278
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (LEFT HAND)
10A	HINGE, TOP (RIGHT HAND)
11B	MAY W10673840
11	MAY W10673841
11A	MAY W10403211
12C	MAY W10248562
12B	MAY W10471618
12E	MAY W10407158
12D	MAY W10407157
12	MAY W10471615
12A	COVER, LEFT HINGE (BLACK)
13	MAY W10678711
14	SCREW
15A	HINGE, CENTER (LT) (BLACK)
15	HINGE, CENTER (LT) (WHITE)
15D	HINGE, CENTER (RT) (BLACK)
15B	HINGE, CENTER (LEFT) (GREY)
15C	HINGE, CENTER (RT) (WHITE)
15E	HINGE, CENTER (RIGHT) (GREY)
16	MAY W10336736
17	COVER, CORNER (GREY)
18	VALVE, WATER
19A	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	MAY W10709365
21	MAY 12990701
22B	MAY W10637671
22	MAY W10637668
22A	MAY W10637669
23	SCREW
24	MAY W10277839
26	SCREW (10)
27	MAY W10306786
28	MAY W10754591
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
32	MAY W10503562
33	MAY W10505294
34	MAY W10212137
35	LINER (NOT A SERVICEABLE PART)
36	MAY 549193
37	MAY W10141645
38	Screw (4)
