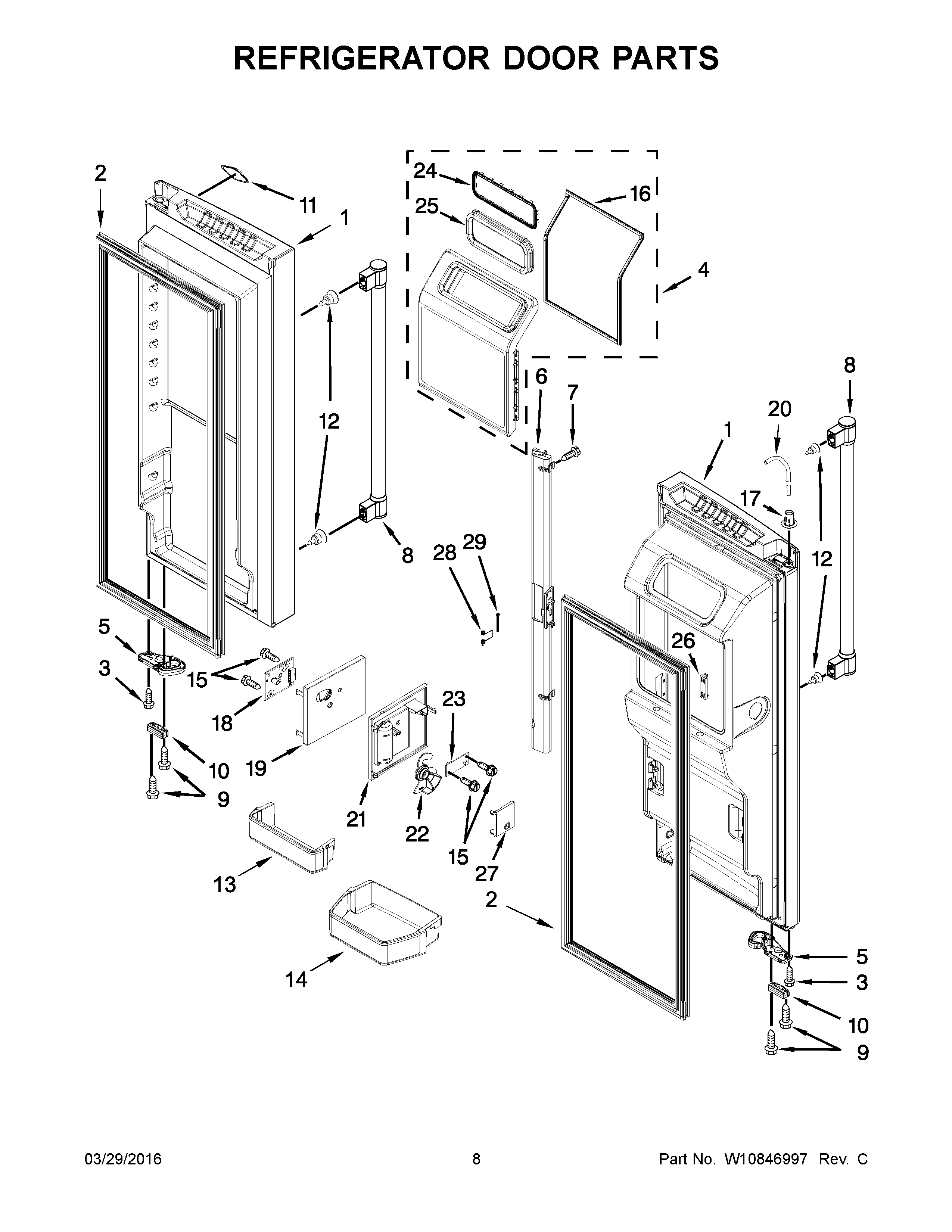

MFX2876DRE01 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1E	DOOR, RIGHT (INCLUDES ITEM 30) (STAINLESS)
1A	DOOR, LEFT (BLACK)
1D	DOOR, RIGHT (BLACK)
1B	DOOR, LEFT (INCLUDES ITEM 30) (STAINLESS)
1C	DOOR, RIGHT (WHITE)
2A	MAY W10545602
2	MAY W10587579
2B	MAY W10503817
3	MAY W10464016
4	MAY W10549593
5A	MAY W10712953
5	MAY W10712952
6B	MAY W10698204
6	MULLION, DOOR (WHITE)
6A	MULLION, DOOR (BLACK)
7	MAY 12990204
8	HANDLE, DOOR (STAINLESS)
9	MAY 12990504
10	BUMPER, DOOR (WHITE)
10B	MAY W10407188
10A	BUMPER, DOOR (BLACK)
11	MAY W10612926
12	MAY W10460893
13	TRIVET, 2 LITER
14	BUCKET, GALLON
15	Screw (2)
16	MAY W10347085
17	CLIP, TUBE
18	MAY W10518658
19	MAY W10258510
20	MAY W10499015
21	MAY W10258502
22	MAY W10258540
23	MAY W10832970
24	RETAINER, ICE CHUTE
25	MAY W10347087
26	MAY W10646855
27	DOOR, EMITTER
28	SPRING, DOOR
29	PIN, DOOR
