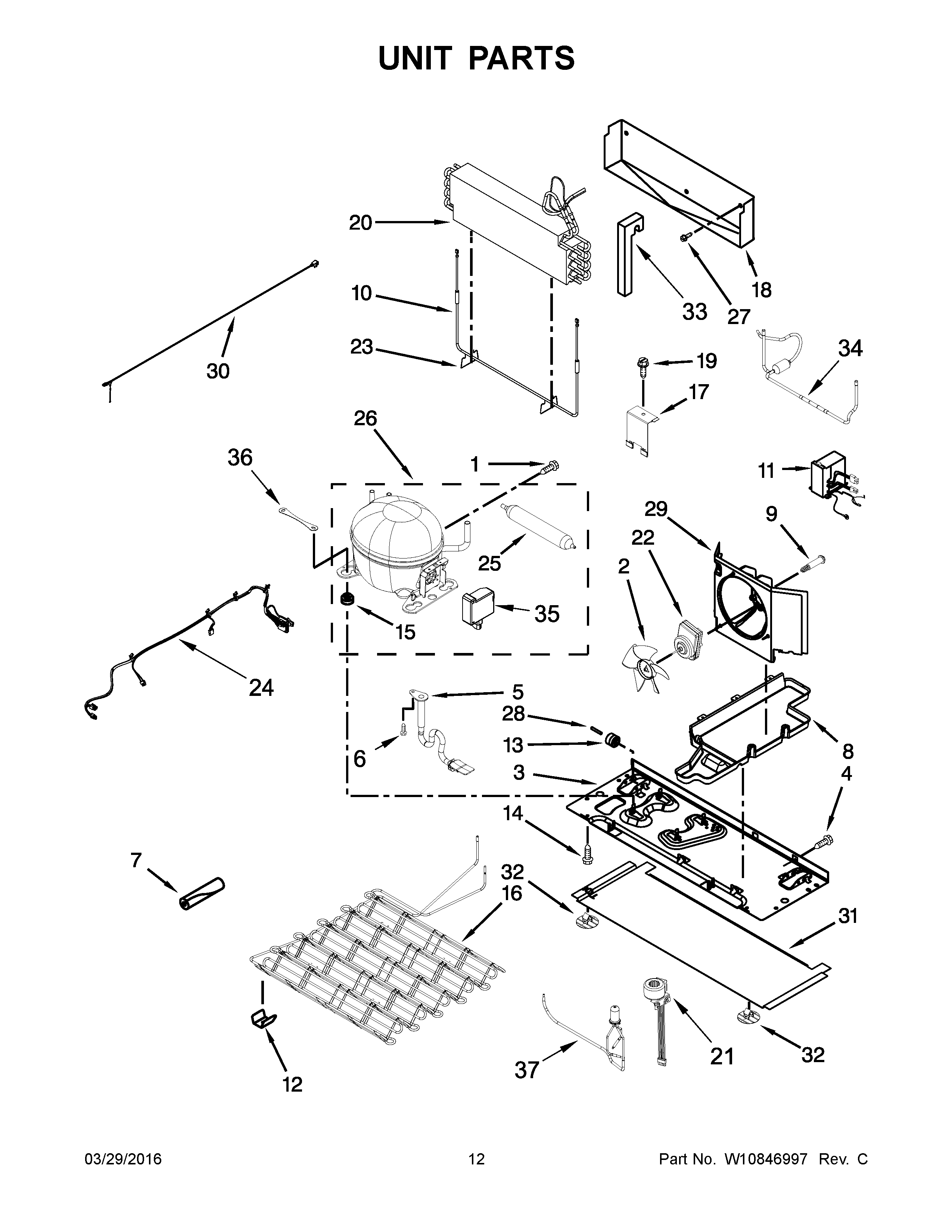

MFX2876DRE01 07 – UNIT PARTSadmin2025-04-26T09:08:04+00:00MFX2876DRE01 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| 1 | SCREW 8-32 X 1/2 |
| 2 | MAY 2188935 |
| 3 | MAY W10570074 |
| 4 | SCREW (10) |
| 5 | MAY W10776916 |
| 6 | SCREW 8-15 X 3/4 |
| 7 | MAY W10303521 |
| 8 | MAY W10660727 |
| 9 | MAY W10622701 |
| 10 | MAY 12729128 |
| 11 | BOX, INVERTER |
| 12 | CLIP, CONDENSER |
| 13 | Roller (2) |
| 14 | MAY 12992101 |
| 15 | GROMMET |
| 16 | MAY W10559262 |
| 17 | BRACKET, VALVE |
| 18 | MAY W10342573 |
| 19 | MAY W10141645 |
| 20 | ASSEMBLY, EVAPORATOR |
| 21 | COIL, 3 WAY VALVE |
| 22 | MAY W10527155 |
| 23 | W11673433 Whirlpool Clip |
| 24 | MAY W10746598 |
| 25 | DRIER |
| 26 | MAY W10183959 |
| 27 | MAY W10142294 |
| 28 | Axle, Roller (2) |
| 29 | MAY W10406719 |
| 30 | MAY W10630315 |
| 31 | MAY W10278140 |
| 32 | MAY W10815861 |
| 33 | MAY W10491355 |
| 34 | MAY W10626970 |
| 35 | MAY 2215676 |
| 36 | MAY W10236396 |
| 37 | MAY W10391081 |
