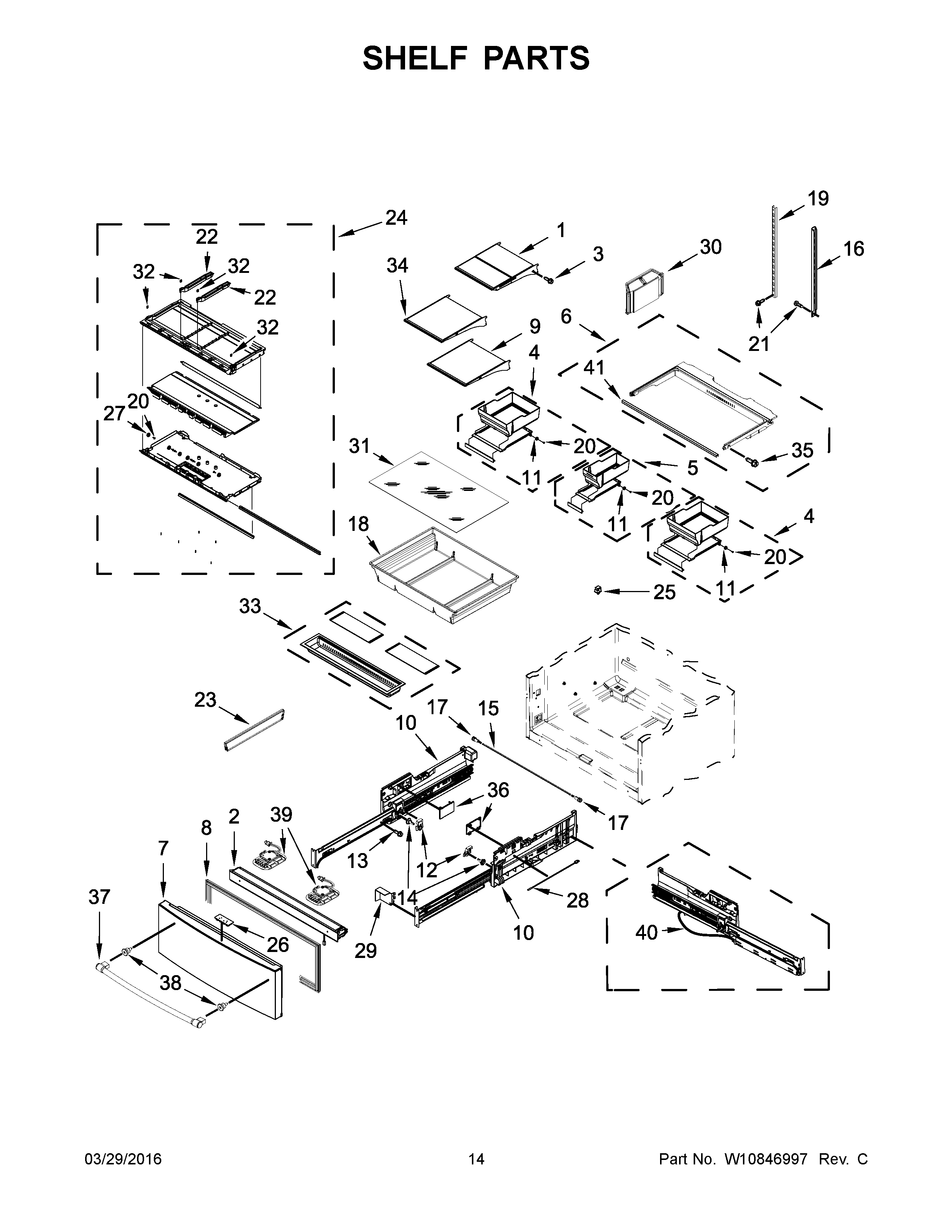

MFX2876DRE01 08 – SHELF PARTS

Products

Position	Product
1	SHELF, TUCK
2	MAY W10610301
3	MAY W10325002
4	CRISPER, MEDIUM
5	CRISPER, SMALL
6	ASSEMBLY, CRISPER COVER
7B	MAY W10666165
7	DOOR, PANTRY (WHITE)
7A	DOOR, PANTRY (BLACK)
8	GASKET, PANTRY (WHITE)
8A	GASKET, PANTRY (BLACK)
8B	MAY W10518365
9	SHELF, FIXED LIGHTED
10A	MAY W10750817
10	MAY W10667416
12	COVER, GEAR (LEFT HAND)
12A	COVER, GEAR (RIGHT HAND)
13	MAY 12991702
14	GEAR, SPUR
15	MAY W10802341
16	MAY W10719660
17	COLLAR, GEAR
18	MAY W10530656
19	MAY W10719661
20	SCREW
21	MAY W10666373
22	MAY W10530296
23	MAY W10772797
24	MAY W10782690
25	MAY W10656773
26	ASSEMBLY, USER INTERFACE
27	MAY W10530295
28	MAY W10549991
29	MAY W10518378
30	ASSEMBLY, PRODUCE PRESERVER
31	MAY W10493549
32	MAY 12702901
33	MAY W10780178
34	SHELF, FIXED
35	Screw (4)
36	MAY W10518036
37	HANDLE, DOOR (STAINLESS)
38	MAY W10460893
39	MAY W10660728
40	MAY W10512203
41	SUPPORT, CRISPER FRONT
