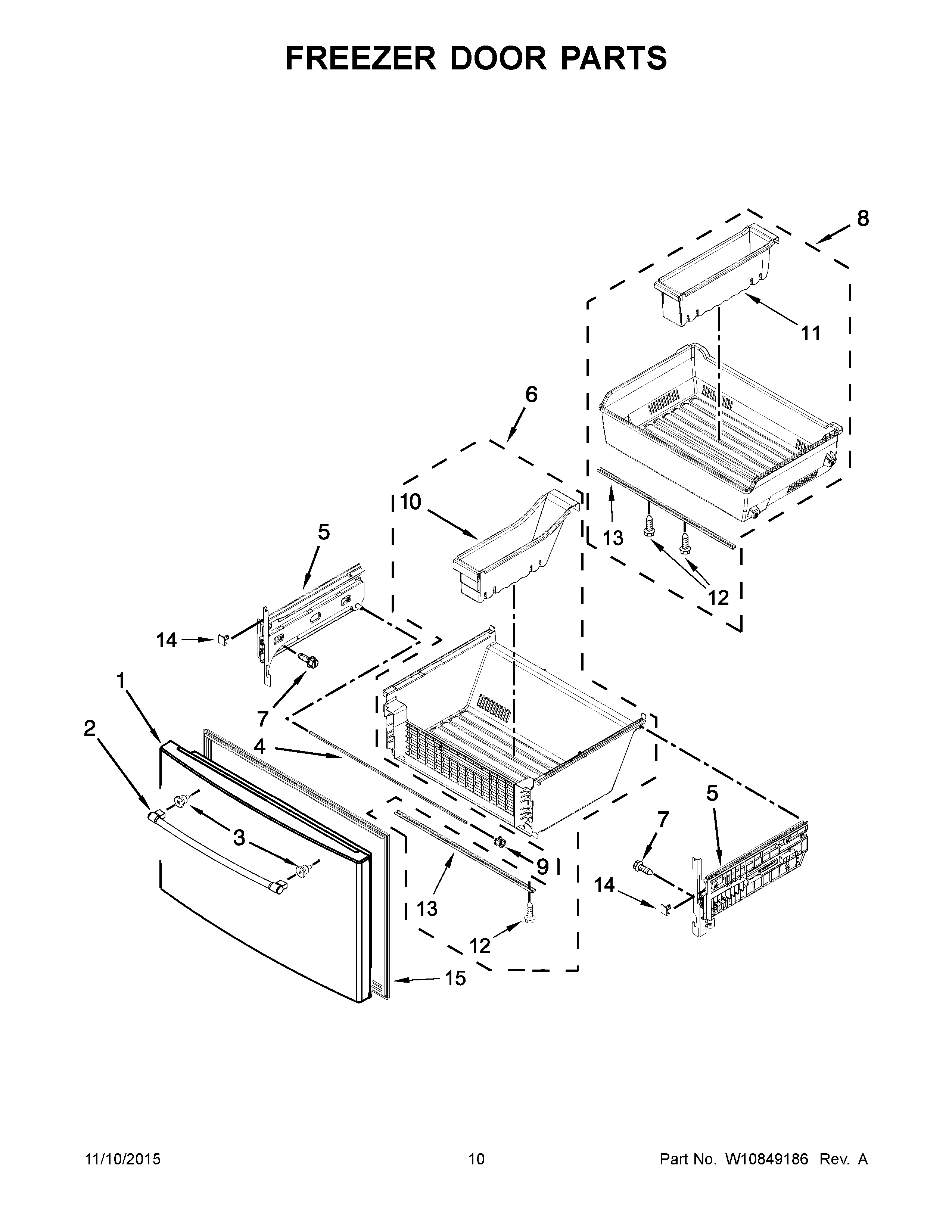

MFX2876DRE02 06 – FREEZER DOOR PARTS

MFX2876DRE02 06 – FREEZER DOOR PARTS

Written by

in

MFX2876DRE02 06 – FREEZER DOOR PARTS

Products

Position	Product
1B	DOOR, FREEZER (STAINLESS)
1A	DOOR, FREEZER (BLACK)
1	DOOR, FREEZER (WHITE)
2	HANDLE, DOOR (STAINLESS)
3	MAY W10460893
4	MAY W10503522
5	MAY W10795770
5A	MAY W10795768
6	MAY W10650427
7	SCREW
8	BIN, UPPER
9	MAY W10709748
10	MAY W10507444
11	MAY W10485654
12	SCREW (STAINLESS)
13	SUPPORT, PAN
14A	MAY W10485089
14	MAY W10485096
15A	MAY W10248748
15	MAY W10587578
15B	MAY W10248749
