MFX2876DRE02 09 – DISPENSER FRONT PARTS

MFX2876DRE02 09 – DISPENSER FRONT PARTS

Written by

in

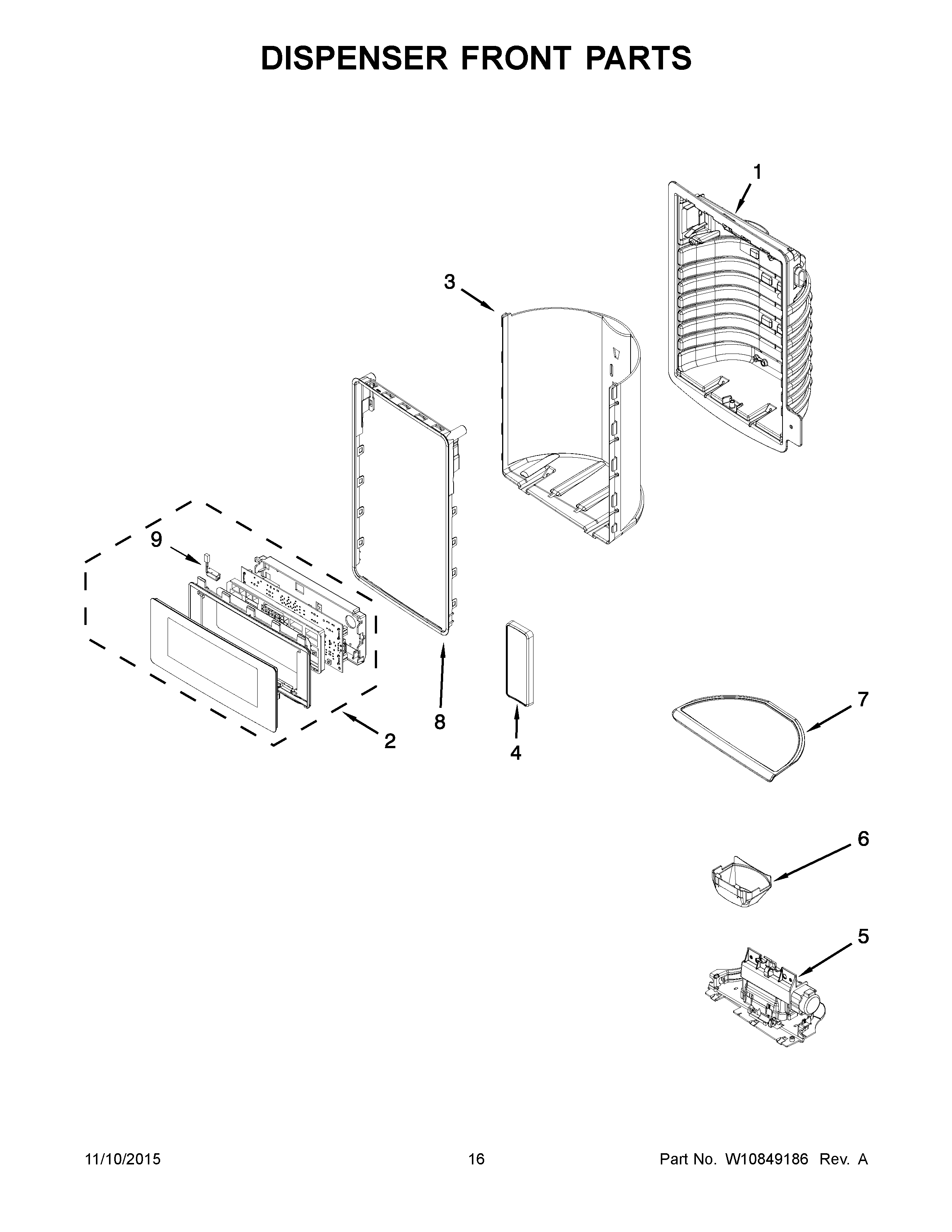

MFX2876DRE02 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10751243
3AWALL, DISPENSER FALSE (GREY)
3WALL, DISPENSER FALSE (WHITE)
4ASSEMBLY, PAD (WHITE)
4AASSEMBLY, PAD (STAINLESS)
5MAY W10577864
6MAY W10435760
7MAY W10322872
7AMAY W10410105
8ARING, TRIM (STAINLESS)
8MAY W10587907
9ASSEMBLY, LED
