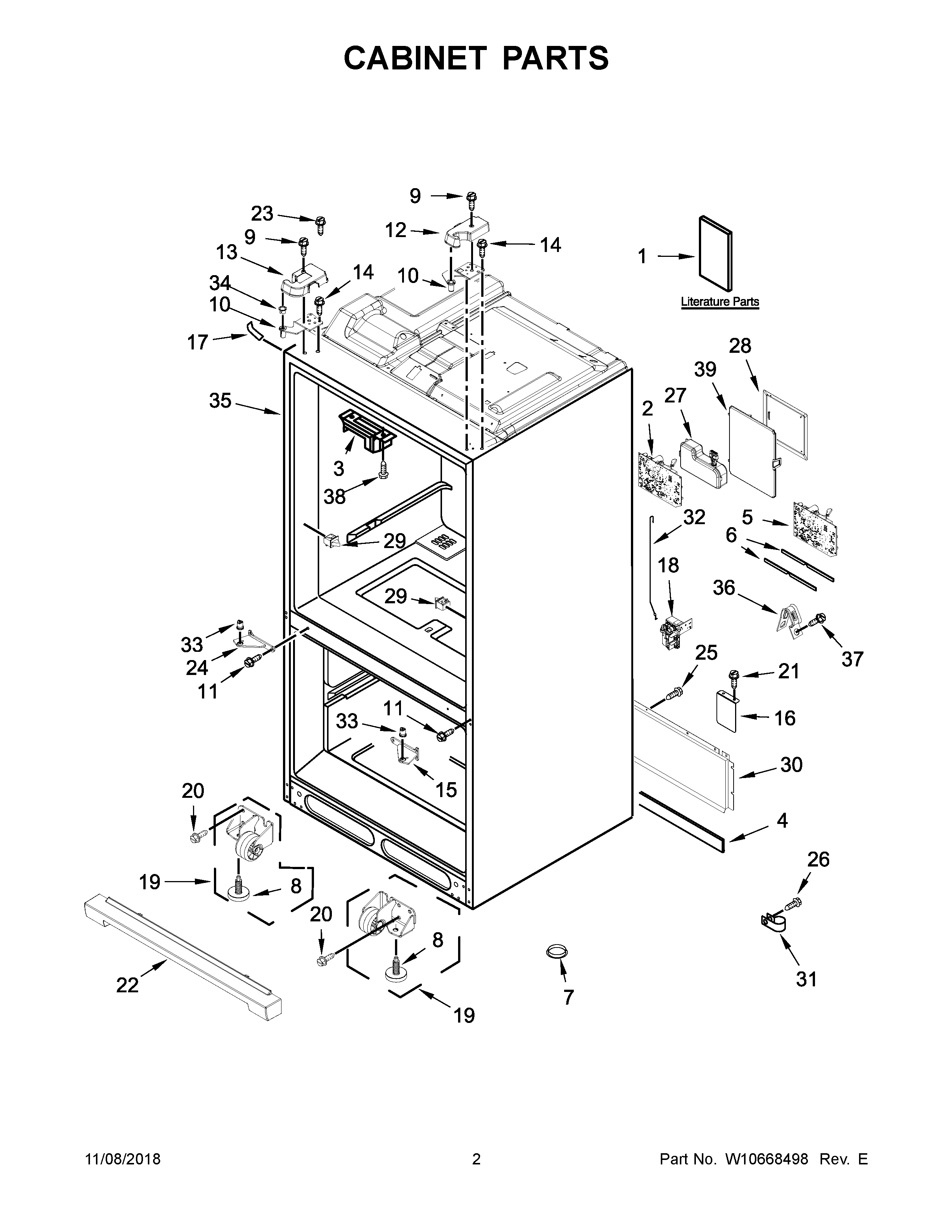

MFX2876DRH00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10676128
1B	OWNERS MANUAL
1C	ENERGY GUIDE
1	MAY W10625845
2	SUPPLY, POWER
3	MAY W10344432
4	MAY W10505487
5	MAY W10739092
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10A	HINGE, TOP (RIGHT HAND)
10	HINGE, TOP (LEFT HAND)
11A	SCREW (BLACK)
11B	MAY W10673840
11	MAY W10673841
12	MAY W10248562
12A	MAY W10407157
12B	MAY W10407158
13A	COVER, LEFT HINGE (BLACK)
13	MAY W10471615
13B	MAY W10471618
14	SCREW
15B	HINGE, CENTER (RIGHT) (GREY)
15	HINGE, CENTER (RT) (WHITE)
15A	HINGE, CENTER (RT) (BLACK)
16	MAY W10336736
17A	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
17B	COVER, CORNER (GREY)
18	VALVE, WATER
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	MAY W10709365
21	SCREW
22	MAY W10637668
22B	MAY W10637671
22A	MAY W10637669
23	SCREW
24B	HINGE, CENTER (LEFT) (GREY)
24A	HINGE, CENTER (LT) (BLACK)
24	HINGE, CENTER (LT) (WHITE)
26	SCREW (10)
27	MAY W10306786
28	COVER, CONTROL BOX
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
32	TUBE, WATER
33	MAY W10505294
34	MAY W10212137
35	LINER (NOT A SERVICEABLE PART)
36	MAY 549193
37	MAY W10141645
38	Screw (4)
39	MAY W10277839
