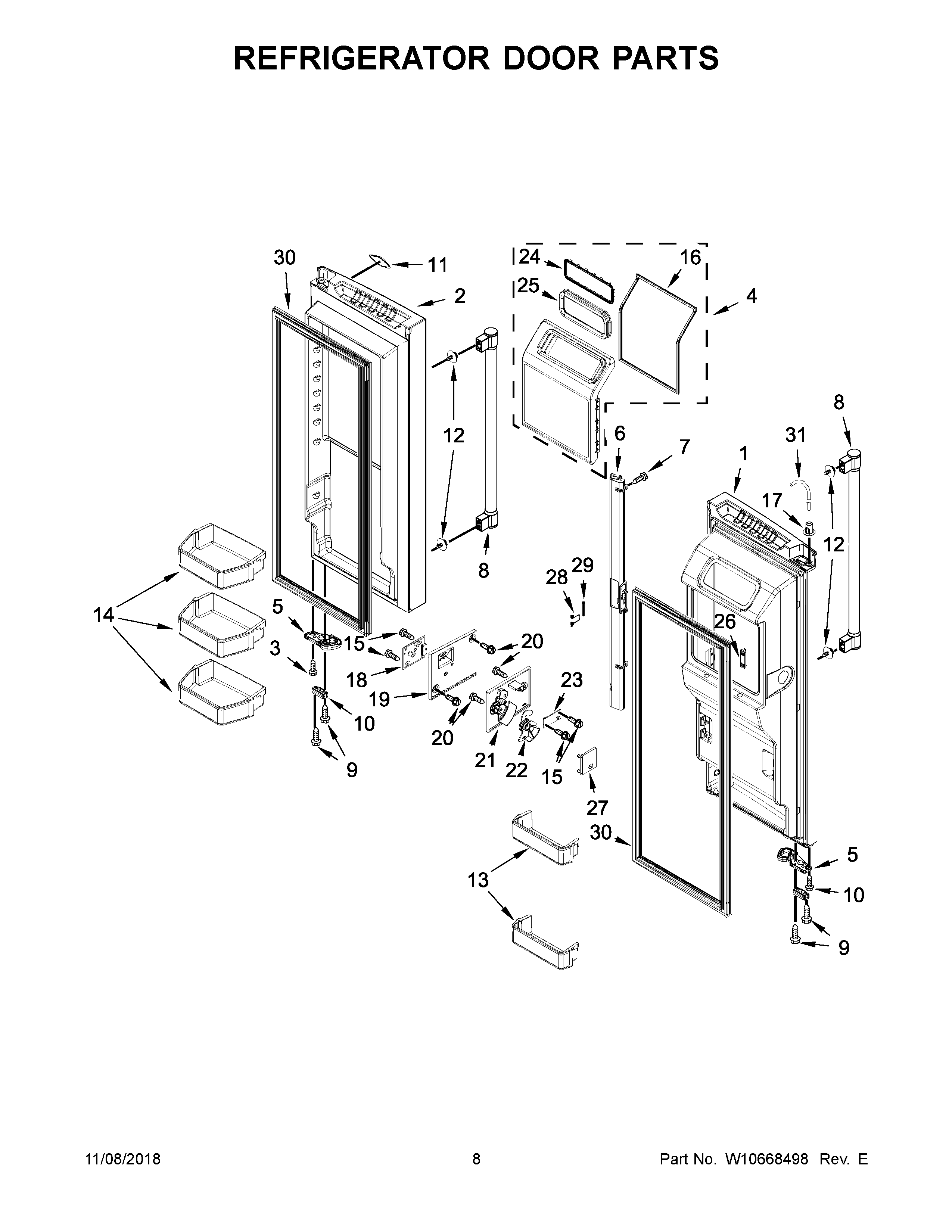

MFX2876DRH00 05 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:09:31+00:00MFX2876DRH00 05 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | DOOR, LEFT (WHITE) |
| 1A | DOOR, LEFT (BLACK) |
| 1B | DOOR, LEFT (INCLUDES ITEM 30) (STAINLESS) |
| 2B | DOOR, RIGHT (INCLUDES ITEM 30) (STAINLESS) |
| 2 | DOOR, RIGHT (WHITE) |
| 2A | DOOR, RIGHT (BLACK) |
| 3 | SCREW |
| 4 | ASSEMBLY, ICE DOOR |
| 5 | MAY W10712952 |
| 5A | MAY W10712953 |
| 6 | MULLION, DOOR (WHITE) |
| 6A | MULLION, DOOR (BLACK) |
| 6B | MAY W10698204 |
| 7 | MAY 12990204 |
| 8 | HANDLE, DOOR (STAINLESS) |
| 9 | MAY 12990504 |
| 10A | BUMPER, DOOR (BLACK) |
| 10 | BUMPER, DOOR (WHITE) |
| 10B | MAY W10407188 |
| 11 | MAY W10612926 |
| 12 | MAY W10460893 |
| 13 | TRIVET, 2 LITER |
| 14 | BUCKET, GALLON |
| 15 | Screw (2) |
| 16 | MAY W10347085 |
| 17 | CLIP, TUBE |
| 18 | MAY W10518658 |
| 19 | MAY W10258510 |
| 20 | SCREW |
| 21 | MAY W10258502 |
| 22 | MAY W10258540 |
| 23 | MAY W10832970 |
| 24 | RETAINER, ICE CHUTE |
| 25 | GASKET, ICE CHUTE |
| 26 | MAY W10646855 |
| 27 | DOOR, EMITTER |
| 28 | SPRING, DOOR |
| 29 | PIN, DOOR |
| 30 | GASKET, DOOR (WHITE) |
| 30A | GASKET, DOOR (BLACK) |
| 30B | MAY W10873941 |
| 31 | MAY W10499015 |
