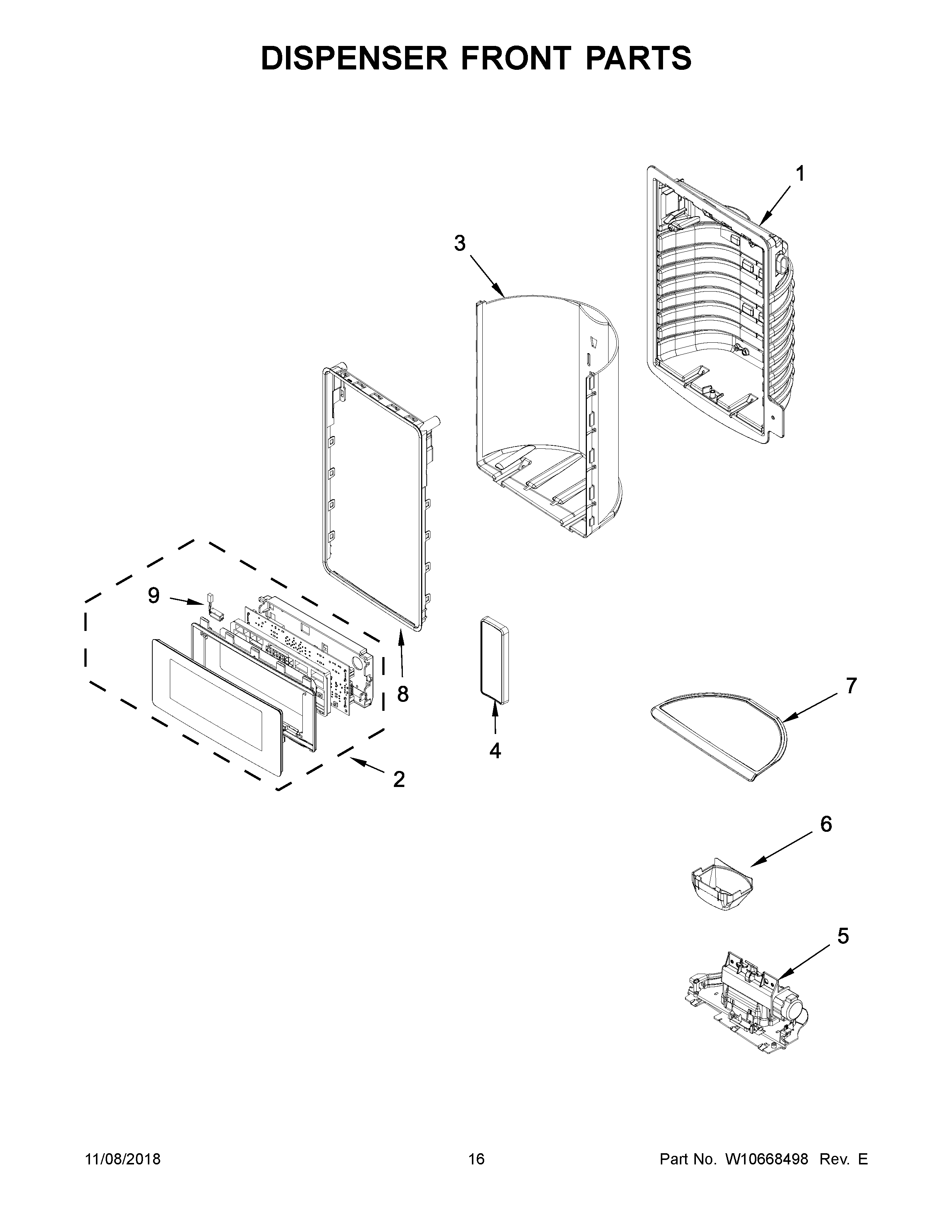

MFX2876DRH00 09 – DISPENSER FRONT PARTS

Written by

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	ASSEMBLY, USER INTERFACE (SILVER)
3B	WALL, DISPENSER FALSE (GREY)
3A	MAY W10520868
3	WALL, DISPENSER FALSE (WHITE)
4A	MAY W10436677
4	ASSEMBLY, PAD (WHITE)
4B	ASSEMBLY, PAD (STAINLESS)
5	MAY W10577864
6	MAY W10435760
7A	MAY W10322873
7	MAY W10322872
7B	MAY W10410105
8B	RING, TRIM (STAINLESS)
8A	MAY W10587908
8	MAY W10587907
9	ASSEMBLY, LED
