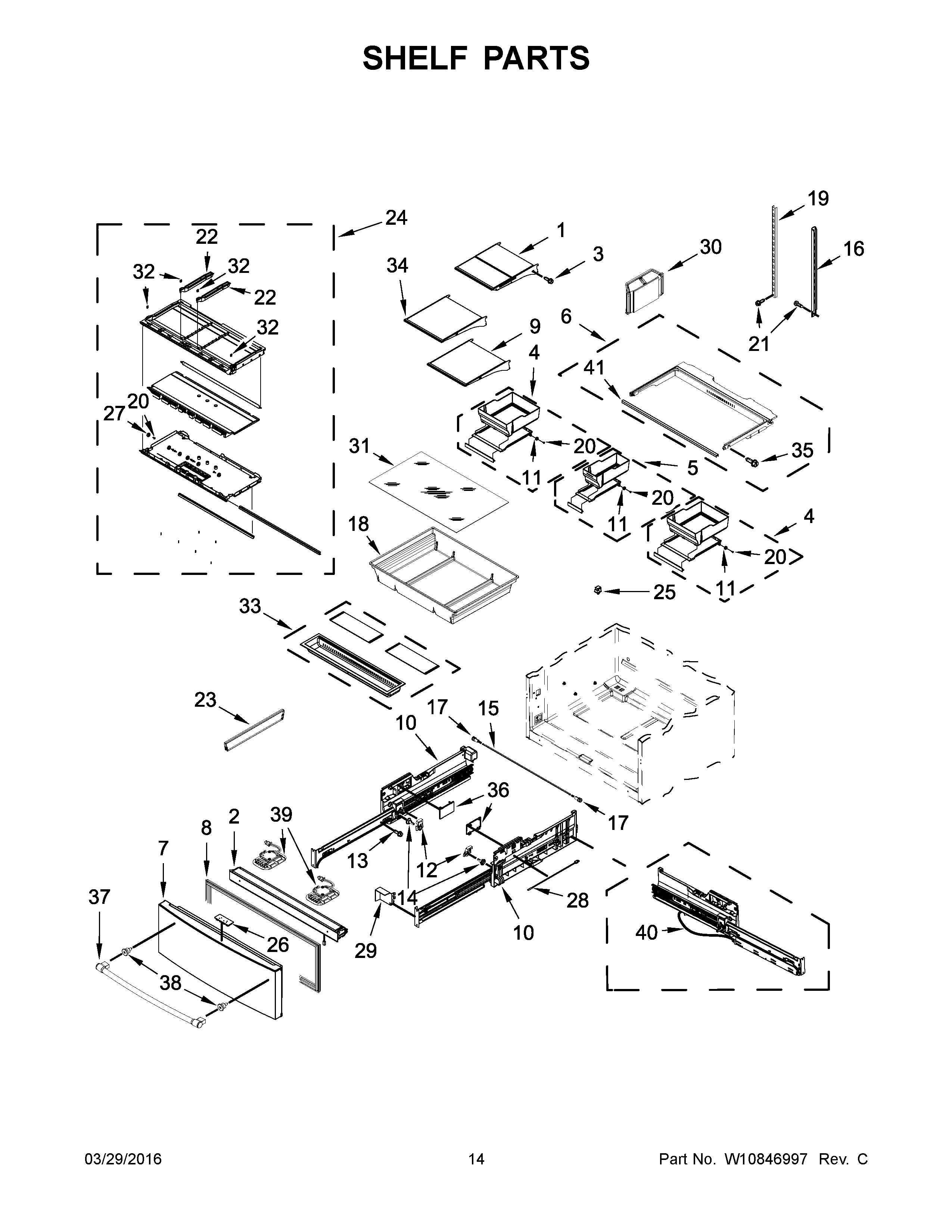

MFX2876DRM01 08 – SHELF PARTSadmin2025-04-26T09:07:49+00:00MFX2876DRM01 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | SHELF, TUCK |
| 2 | MAY W10610301 |
| 3 | MAY W10325002 |
| 4 | CRISPER, MEDIUM |
| 5 | CRISPER, SMALL |
| 6 | ASSEMBLY, CRISPER COVER |
| 7B | MAY W10666165 |
| 7 | DOOR, PANTRY (WHITE) |
| 7A | DOOR, PANTRY (BLACK) |
| 8 | GASKET, PANTRY (WHITE) |
| 8A | GASKET, PANTRY (BLACK) |
| 8B | MAY W10518365 |
| 9 | SHELF, FIXED LIGHTED |
| 10A | MAY W10750817 |
| 10 | MAY W10667416 |
| 12 | COVER, GEAR (LEFT HAND) |
| 12A | COVER, GEAR (RIGHT HAND) |
| 13 | MAY 12991702 |
| 14 | GEAR, SPUR |
| 15 | MAY W10802341 |
| 16 | MAY W10719660 |
| 17 | COLLAR, GEAR |
| 18 | MAY W10530656 |
| 19 | MAY W10719661 |
| 20 | SCREW |
| 21 | MAY W10666373 |
| 22 | MAY W10530296 |
| 23 | MAY W10772797 |
| 24 | MAY W10782690 |
| 25 | MAY W10656773 |
| 26 | ASSEMBLY, USER INTERFACE |
| 27 | MAY W10530295 |
| 28 | MAY W10549991 |
| 29 | MAY W10518378 |
| 30 | ASSEMBLY, PRODUCE PRESERVER |
| 31 | MAY W10493549 |
| 32 | MAY 12702901 |
| 33 | MAY W10780178 |
| 34 | SHELF, FIXED |
| 35 | Screw (4) |
| 36 | MAY W10518036 |
| 37 | HANDLE, DOOR (STAINLESS) |
| 38 | MAY W10460893 |
| 39 | MAY W10660728 |
| 40 | MAY W10512203 |
| 41 | SUPPORT, CRISPER FRONT |
