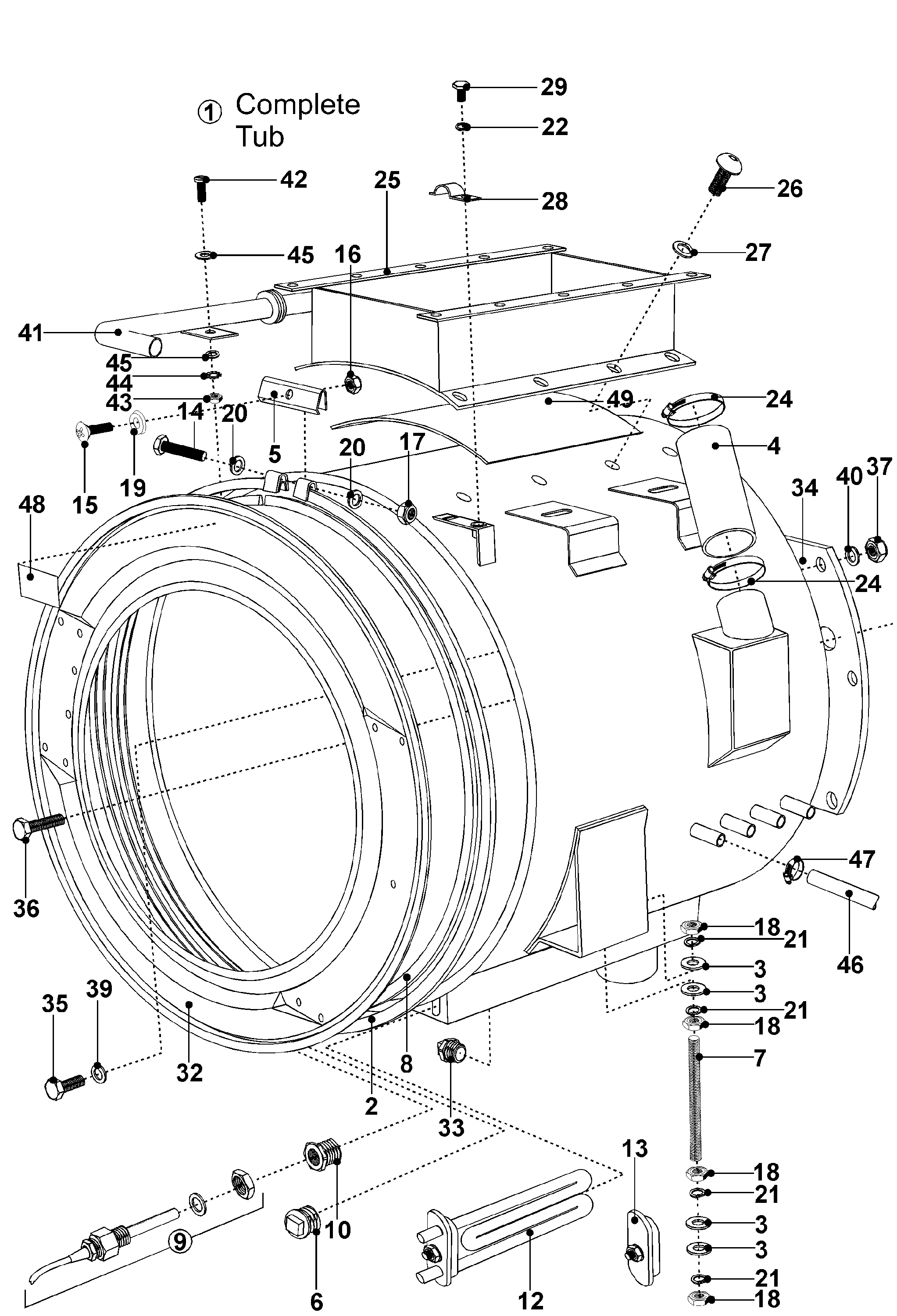

MFX50NNATS 03 – OUTER SHELL ASSEMBLY
Products
| Position | Product |
|---|---|
| 001 | MAY 23002244 |
| 002 | MAY 23002245 |
| 003 | MAY 23002246 |
| 004 | MAY 23001589 |
| 005 | DOWEL PIN FOR HANDLE |
| 006 | MAY 23002247 |
| 007 | MAY 23002248 |
| 008 | MAY 23003999 |
| 009 | MAY 23003964 |
| 010 | MAY 23003807 |
| 012 | ELEMENT, HEAT 100-125LB |
| 013 | MAY 23001594 |
| 014 | MAY 23004000 |
| 015 | MAY 23001596 |
| 016 | MAY 23001597 |
| 017 | MAY 23003773 |
| 018 | MAY 23003676 |
| 019 | MAY 23001204 |
| 020 | MAY 23002440 |
| 021 | MAY 23002658 |
| 022 | MAY 23003774 |
| 024 | MAY 23001256 |
| 025 | MAY 23002249 |
| 026 | MAY 23004001 |
| 028 | MAY 23004002 |
| 029 | MAY 23003996 |
| 032 | MAY 23002251 |
| 033 | MAY 23002480 |
| 034 | MAY 23002252 |
| 035 | MAY 23001605 |
| 036 | SCREW (M8 X 15) |
| 037 | MAY 23001607 |
| 039 | MAY 23004003 |
| 040 | MAY 23003769 |
| 041 | MAY 23002253 |
| 042 | MAY 23002650 |
| 043 | MAY 23003666 |
| 044 | MAY 23002400 |
| 045 | MAY 23002438 |
| 046 | MAY 23002193 |
| 047 | MAY 23001506 |
| 048 | MAY 23002254 |
| 049 | MAY 23002255 |
