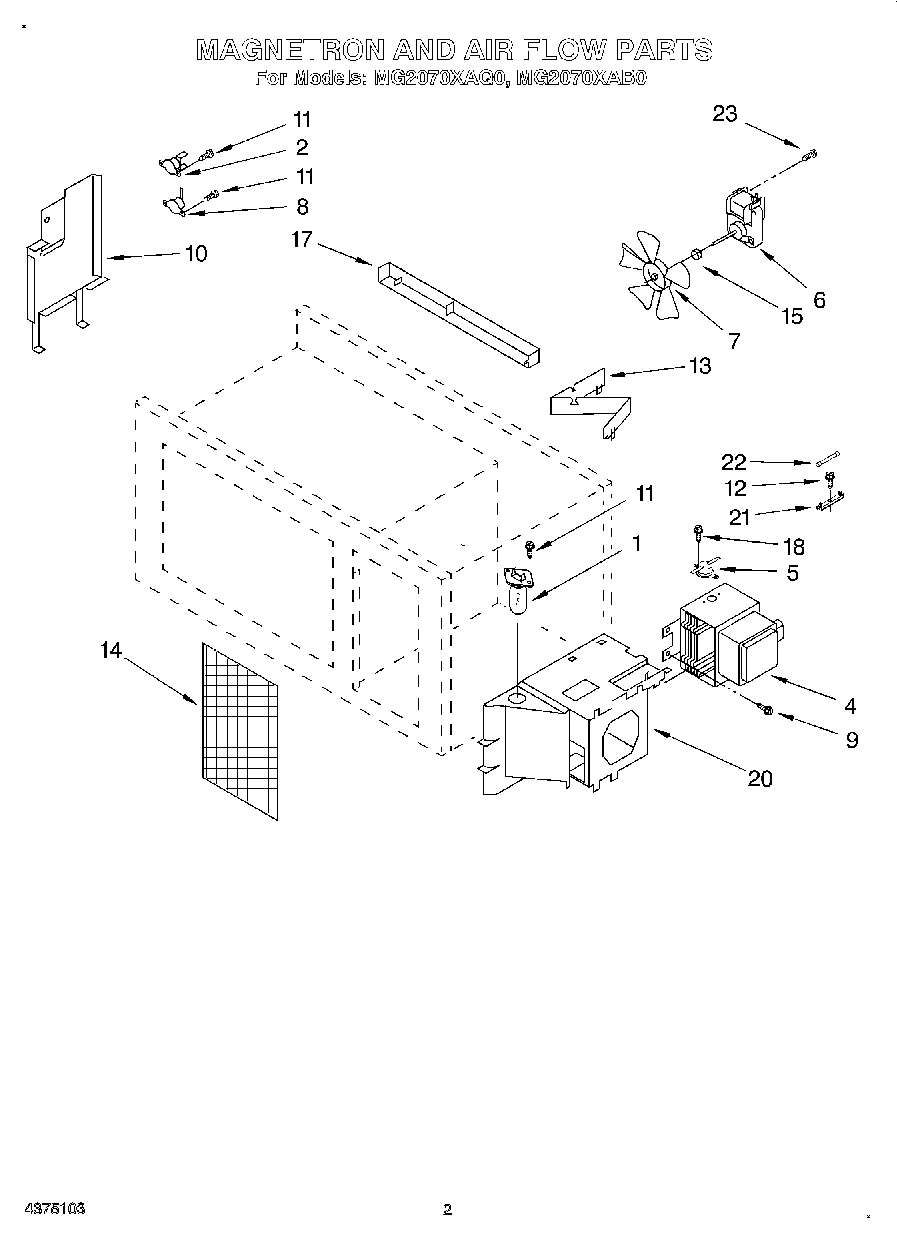

MG2070XAB0 02 – MAGNETRON AND AIRFLOW, LITERATURE

Products

Position	Product
	Tech Sheet
	Crisp Pan Order Card
	White Model
	Cook Guide Label
	Cook Book
	Use And Care Guide
	Black Model
1	Lamp, Oven
2	Thermostat, Grille
4	W10245183 Whirlpool Microwave Magnetron
5	WP4375079 Whirlpool Microwave Thermostat
6	Motor, Fan
7	Blade, Fan
8	Thermostat, Oven
9	Screw, Magnatron
10	Air Guide, Kit
11	8206180 Whirlpool Microwave Screw
12	Screw
13	Air Guide
14	Screen, Vent
15	Clip, Fan Blade
17	Baffle, Air
18	Screw
20	Duct, Magnetron
21	Fuse Holder
22	Fuse
23	Screw
