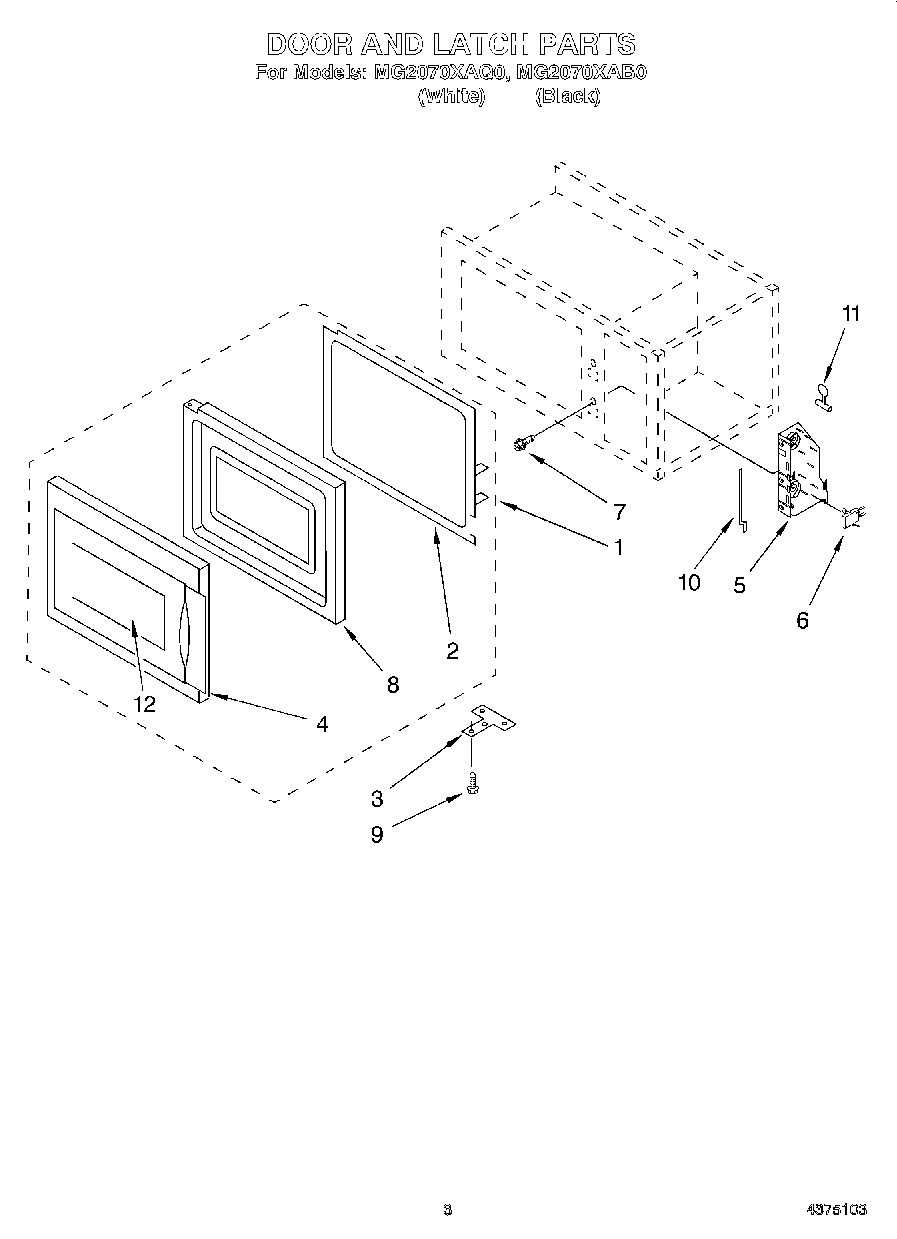

MG2070XAB0 03 – DOOR AND LATCH

MG2070XAB0 03 – DOOR AND LATCH

Written by

in

MG2070XAB0 03 – DOOR AND LATCH

Products

Position	Product
1	Door, Complete (Black)
1	Door, Complete (White)
2	Choke Cover
3	Hinge, Lower
4	Outer Frame (Black)
4	Outer Frame (White)
5	Latch Board (Includes Item 6)
6	Micro Switch
7	Screw
8	Door, Inner (White)
8	Door, Inner (Black)
9	8206180 Whirlpool Microwave Screw
10	Locking Pin
11	Lever
12	Outer Glass (Black)
12	Outer Glass (White)
