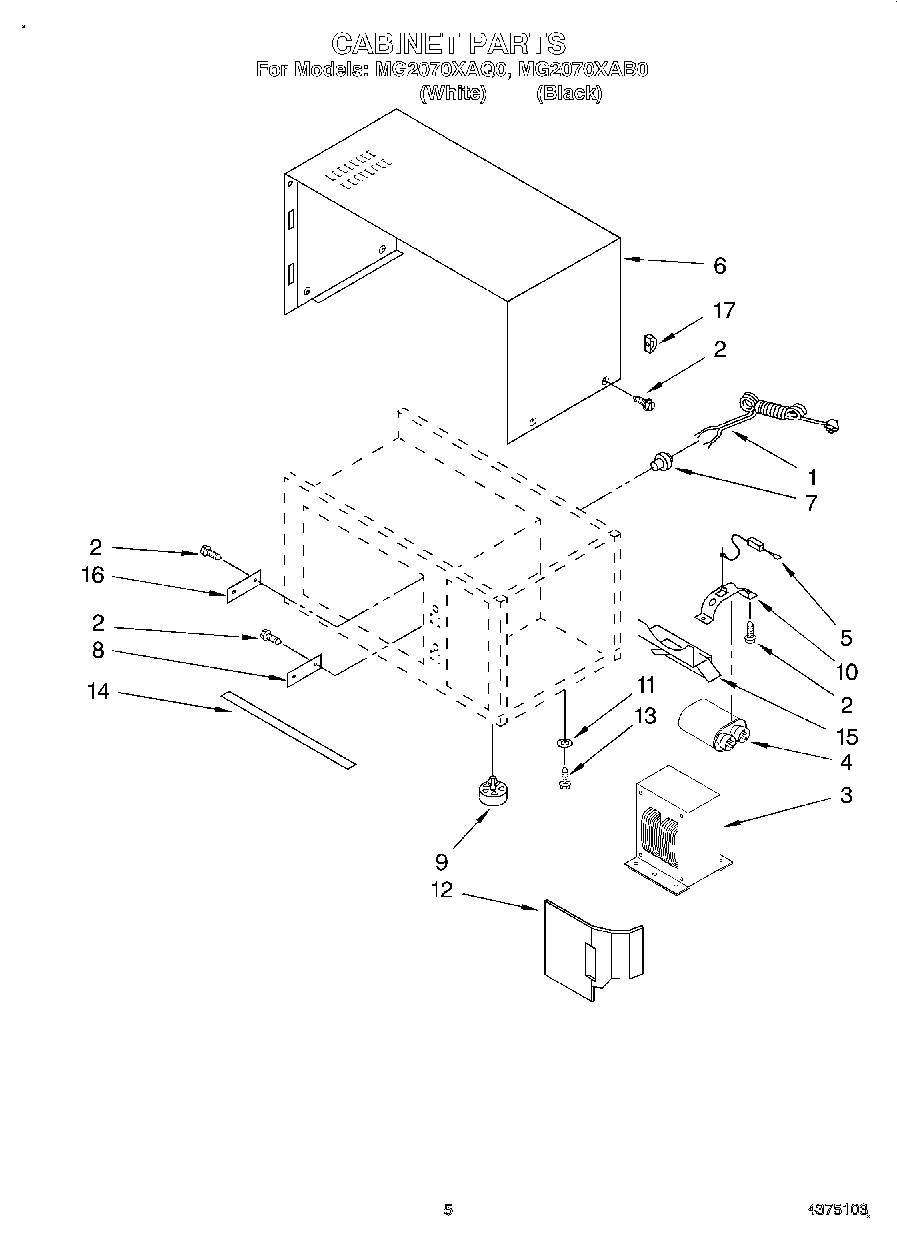

MG2070XAB0 05 – CABINET

Products

PositionProduct
1Power Cord
28206180 Whirlpool Microwave Screw
3Transformer
4Capacitor
5Rectifier
6Outer Cabinet (Black)
6Outer Cabinet (White)
7Clamp
8Cover
9Foot
10Bracket, Capacitor
11Lock Washer
12Air Duct
13Screw
14Cover Strip
15Cover, Capacitor
16Cover
17Spacer (White)
17Spacer (Black)
