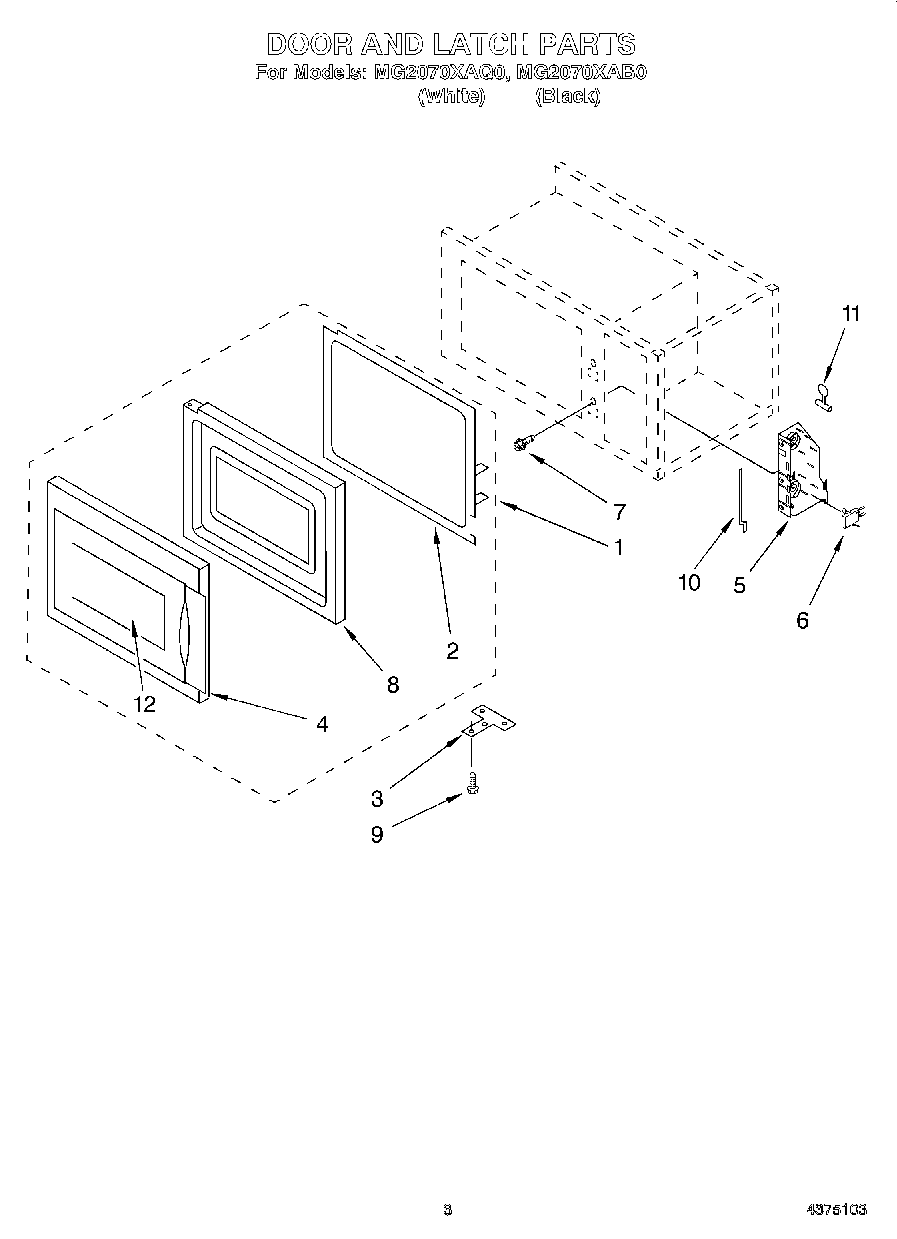

MG2070XAQ0 03 – DOOR AND LATCH

MG2070XAQ0 03 – DOOR AND LATCH

Written by

in

MG2070XAQ0 03 – DOOR AND LATCH

Products

PositionProduct
1Door, Complete (Black)
1Door, Complete (White)
2Choke Cover
3Hinge, Lower
4Outer Frame (Black)
4Outer Frame (White)
5Latch Board (Includes Item 6)
6Micro Switch
7Screw
8Door, Inner (White)
8Door, Inner (Black)
98206180 Whirlpool Microwave Screw
10Locking Pin
11Lever
12Outer Glass (Black)
12Outer Glass (White)
