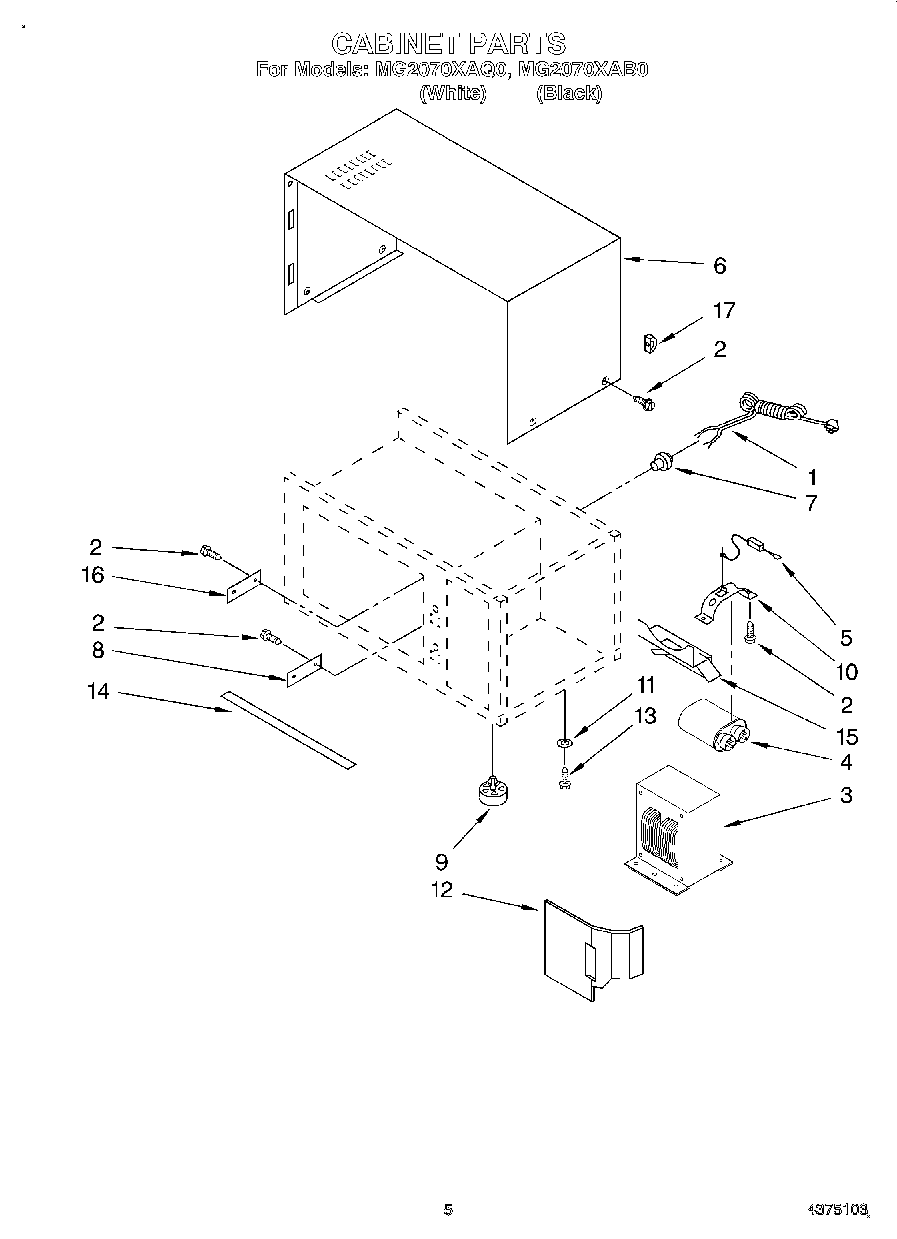

MG2070XAQ0 05 – CABINET

MG2070XAQ0 05 – CABINET

Written by

in

MG2070XAQ0 05 – CABINET

Products

Position	Product
1	Power Cord
2	8206180 Whirlpool Microwave Screw
3	Transformer
4	Capacitor
5	Rectifier
6	Outer Cabinet (Black)
6	Outer Cabinet (White)
7	Clamp
8	Cover
9	Foot
10	Bracket, Capacitor
11	Lock Washer
12	Air Duct
13	Screw
14	Cover Strip
15	Cover, Capacitor
16	Cover
17	Spacer (White)
17	Spacer (Black)
