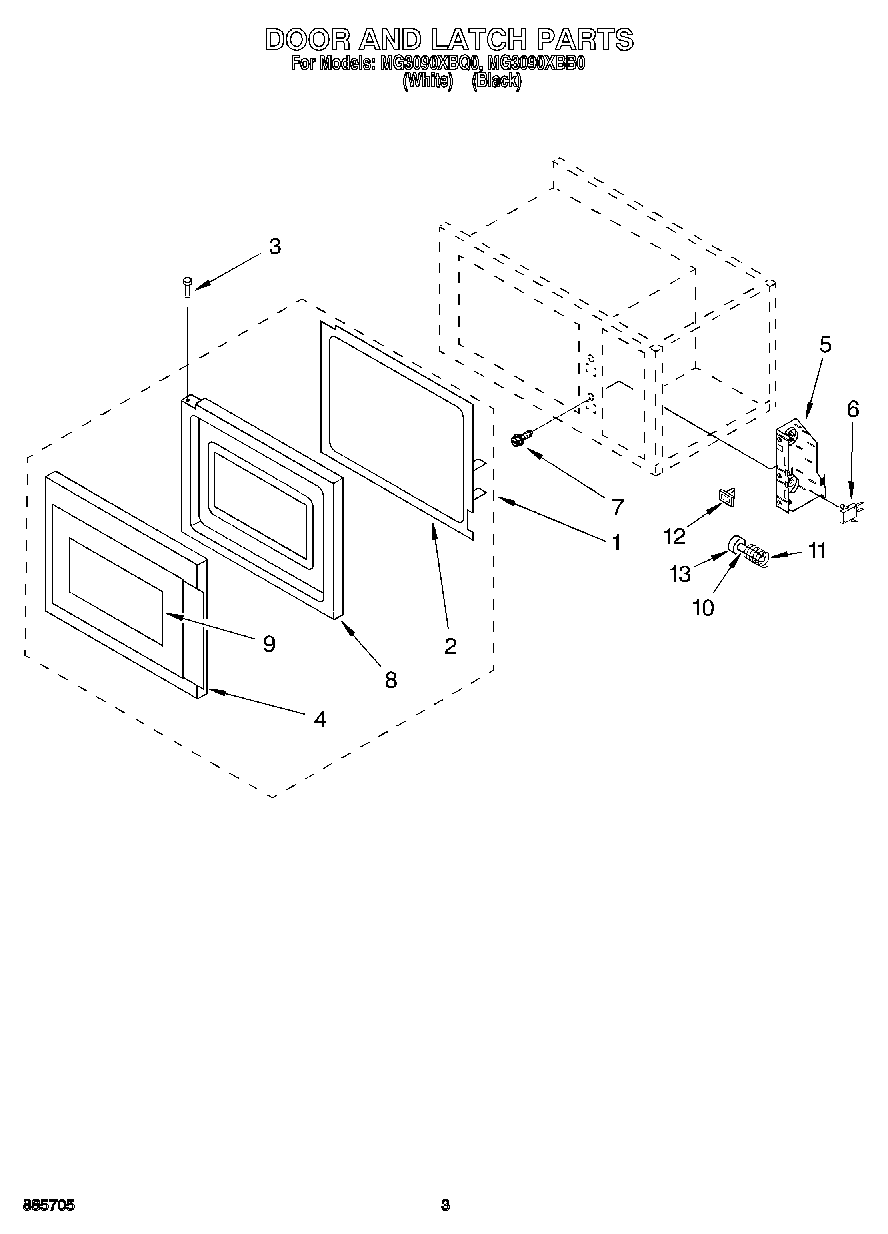

MG3090XBB0 03 – DOOR AND LATCH

MG3090XBB0 03 – DOOR AND LATCH

Written by

in

MG3090XBB0 03 – DOOR AND LATCH

Products

Position	Product
1	Door, Complete (White)
1	Door, Complete (Black)
2	Choke Cover
3	Pin, Hinge
4	Outer Frame (White)
4	Outer Frame (Black)
5	Latch Board (Includes Item 6)
6	Micro switch (3)
7	Screw
8	Inner Frame
9	Outer Glass (Black)
9	Outer Glass (White)
10	Cylinder
11	Spring
12	Slide, Block
13	Cylinder
