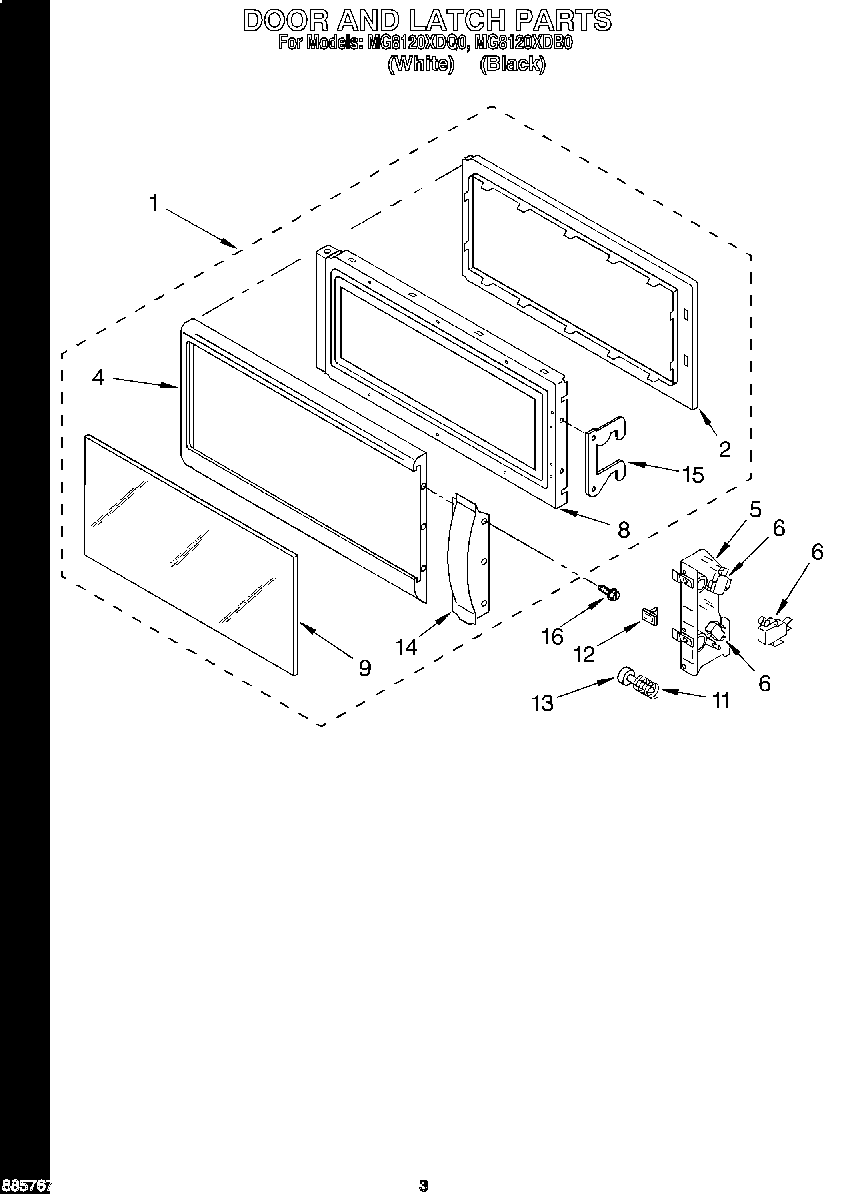

MG8120XDQ0 03 – DOOR AND LATCH

MG8120XDQ0 03 – DOOR AND LATCH

Written by

in

MG8120XDQ0 03 – DOOR AND LATCH

Products

Position	Product
1	Door, Complete (White Model)
1	Door, Complete (Black Model)
2	Choke Cover
4	Outer Frame (White Model)
4	Outer Frame (Black Model)
5	Latch Board
6	Micro Switch
8	Inner Frame
9	Outer Glass (Black Model)
9	Outer Glass (White Model)
11	Spring
12	Block, Slide
13	Cylinder
14	Handle, Door (Black Model)
14	Handle, Door (White Model)
15	Hook, Lock
16	Screw (Black Model)
16	461967825321 Whirlpool Microwave Screw
