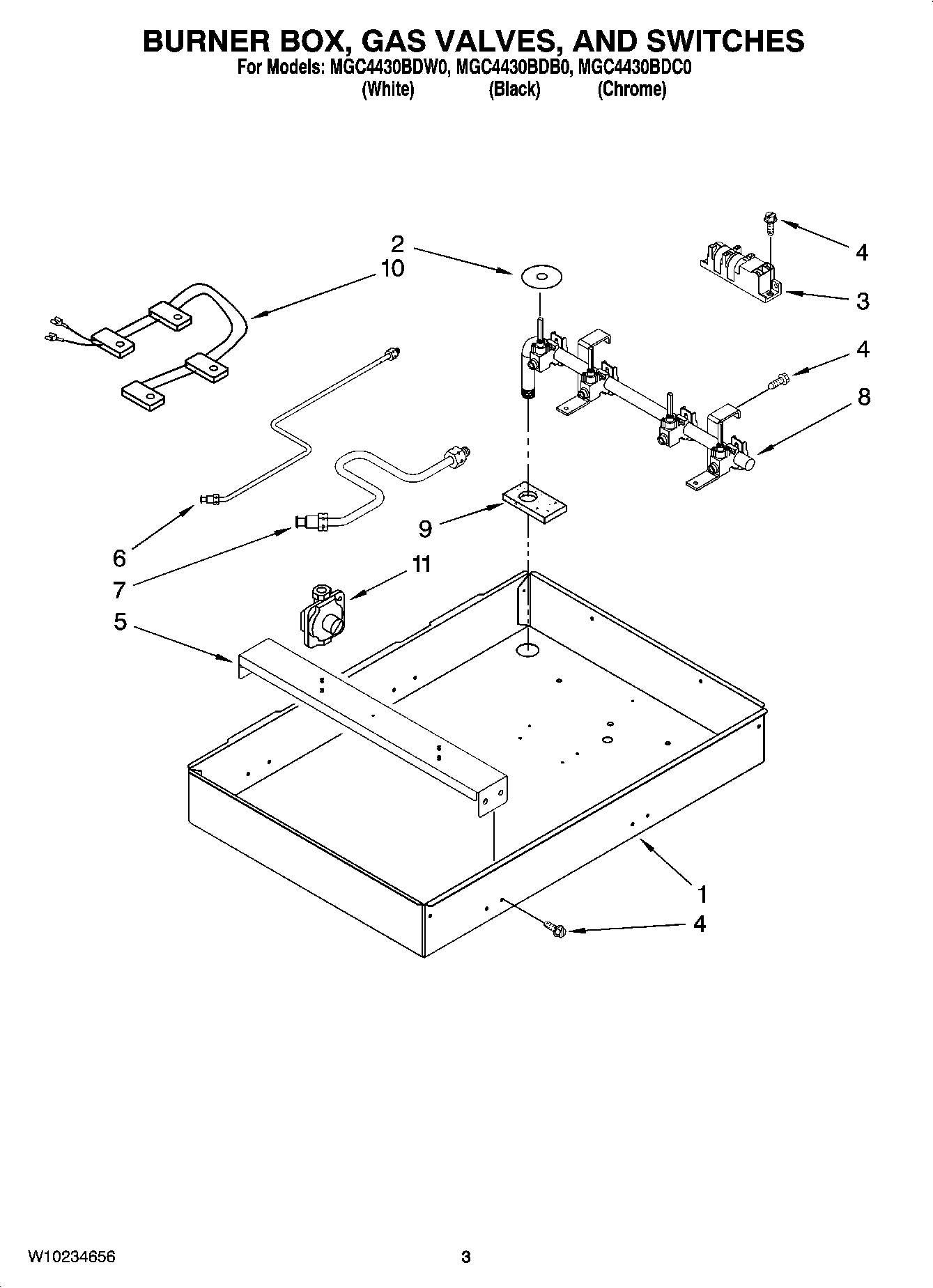

MGC4430BDB0 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY W10165912
NI	Wire, Jumper
NI	WP7509P103-60 Whirlpool Conversion Kit
NI	Harness, Cooktop
NI	MAY 74007903
NI	MAY 31552
NI	SCREW No.10 X 2
NI	BUSHING, SNAP
1	MAY W10204678
2	WP74007705 Whirlpool Grommet
3	MODULE, SPARK
4	WP90767 Whirlpool Screw
5	MAY 74009424
6	MAY 74007695
7	MAY 74007694
8	Pipe, Manifold (Includes Valves)
9	MAY 74001380
10	MAY W10138052
11	W11170853 Whirlpool Regulator Assembly
