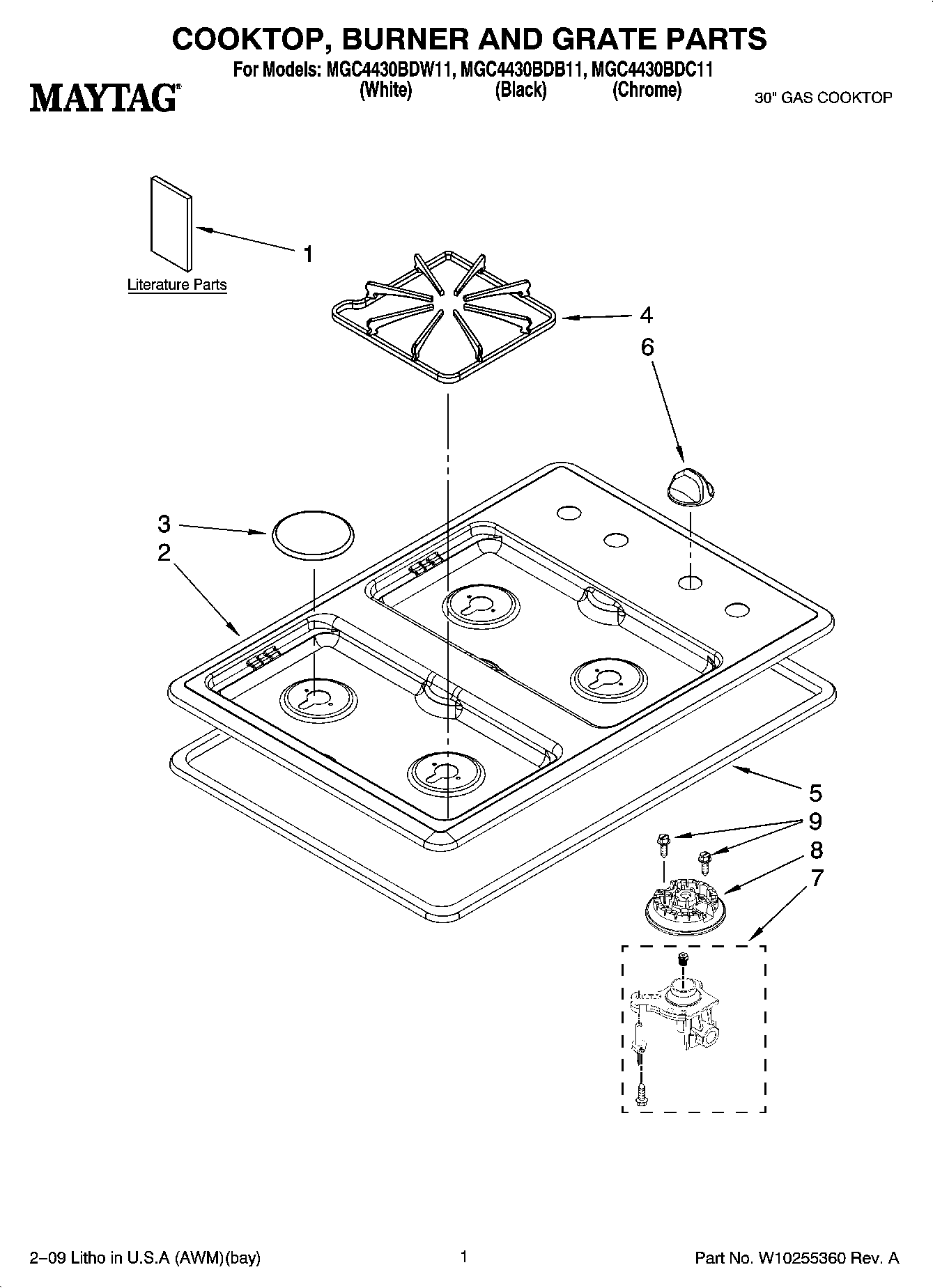

MGC4430BDC11 01 – COOKTOP, BURNER AND GRATE PARTS

MGC4430BDC11 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC4430BDC11 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10211160
1MAY W10211159
1Installation Instructions
1MAY 8111P524-60
1TIPS, SAFE COOKING (FRENCH)
2MAY W10191063
2MAY W10191064
2MAY W10191065
3WP74007752 Whirlpool Burner Cap (Medium Gray)
3WP74007925 Whirlpool Burner Cap
4MAY 7518P464-60
4Grate, Burner (Grey)
5Seal, Foam
6WP7733P381-60 Whirlpool Knob
6WP7733P382-60 Whirlpool Knob
7WP74007692 Whirlpool Holder
7WP74007691 Whirlpool Holder
8HEAD, BURNER (LR/RR/LF)
9WP3368921 Whirlpool Screw
