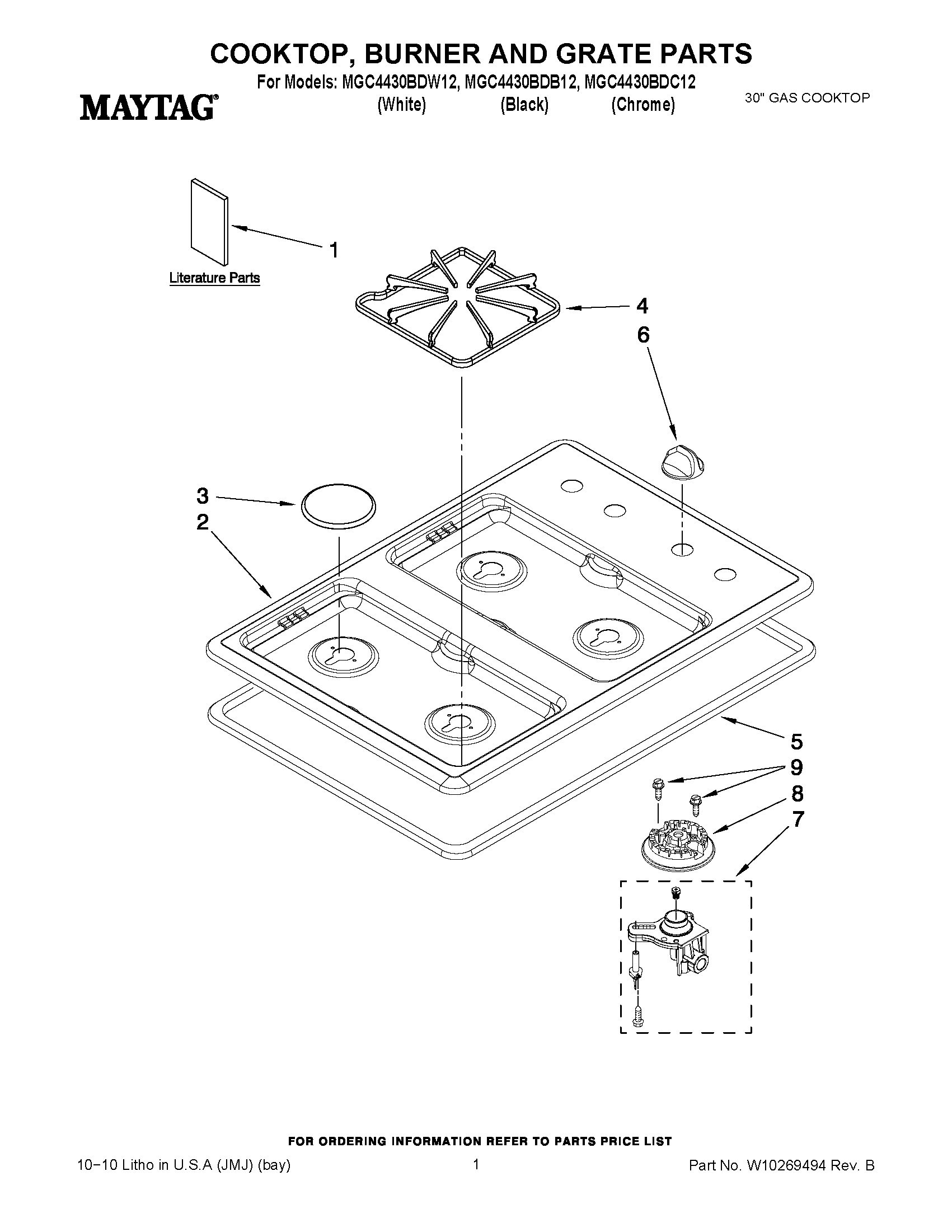

MGC4430BDC12 01 – COOKTOP, BURNER AND GRATE PARTS

MGC4430BDC12 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC4430BDC12 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10211160
1MAY W10211159
1Installation Instructions
1MAY 8111P524-60
1TIPS, SAFE COOKING (FRENCH)
2MAY W10191065
2MAY W10191064
2MAY W10191063
3MAY W10218224
3MAY W10237745
4Grate, Burner (Grey)
4MAY 7518P464-60
5MAY 8270P107-60
6MAY 7733P382-60
6MAY 7733P381-60
7MAY 7527P005-60
7Holder, Orifice (LF, LR & RR)
8HEAD, BURNER (LR/RR/LF)
9WP3368921 Whirlpool Screw
