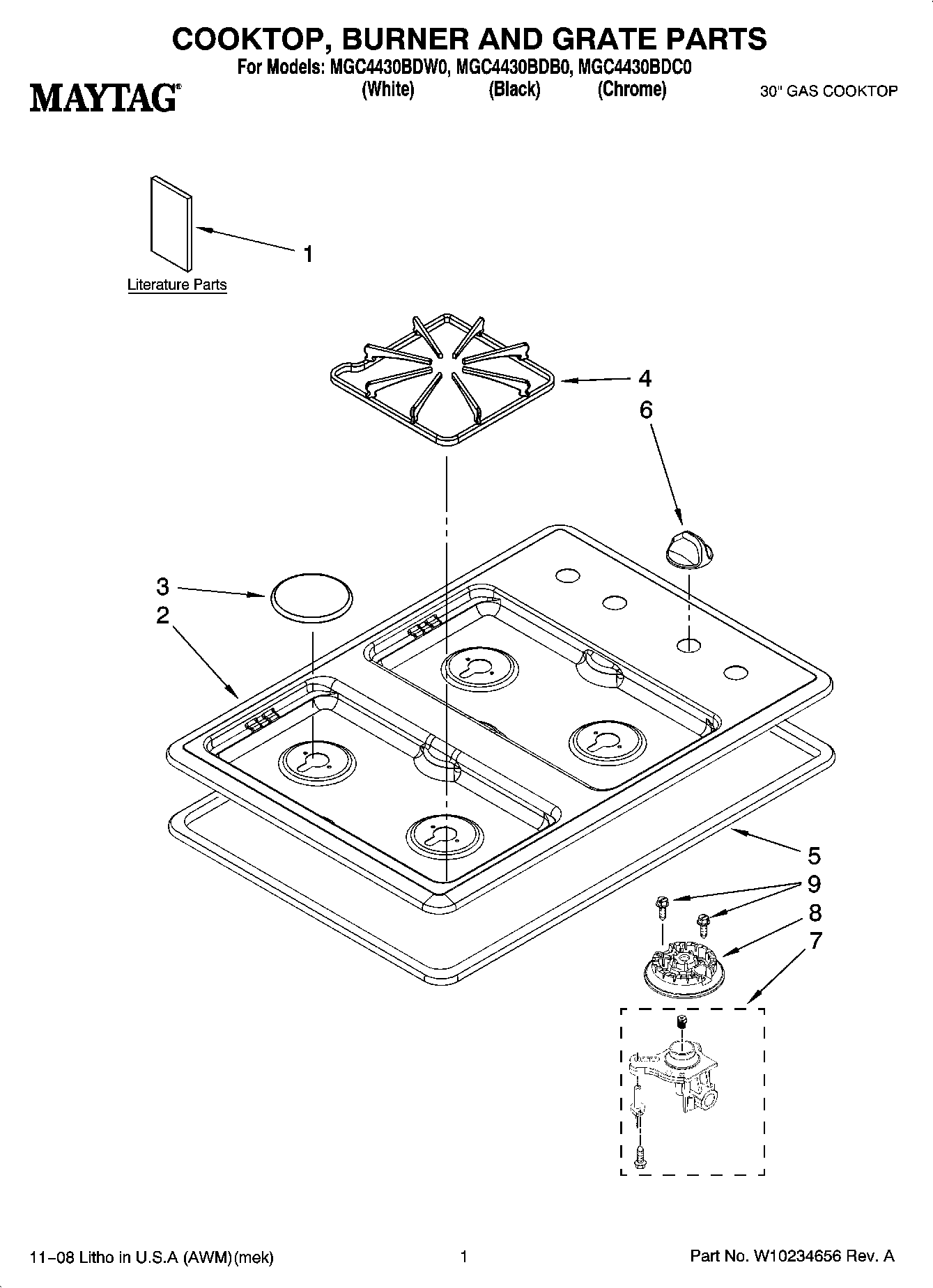

MGC4430BDW0 01 – COOKTOP, BURNER AND GRATE PARTS

MGC4430BDW0 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC4430BDW0 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10201159
1Installation Instructions
1MAY 8111P524-60
1MAY W10201160
1TIPS, SAFE COOKING (FRENCH)
2MAY W10191065
2MAY W10191064
2MAY W10191063
3WP74007925 Whirlpool Burner Cap
3WP74007752 Whirlpool Burner Cap (Medium Gray)
4Grate, Burner (Grey)
4MAY 7518P464-60
5Seal, Foam
6WP7733P382-60 Whirlpool Knob
6WP7733P381-60 Whirlpool Knob
7WP74007691 Whirlpool Holder
7WP74007692 Whirlpool Holder
8WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9WP3368921 Whirlpool Screw
