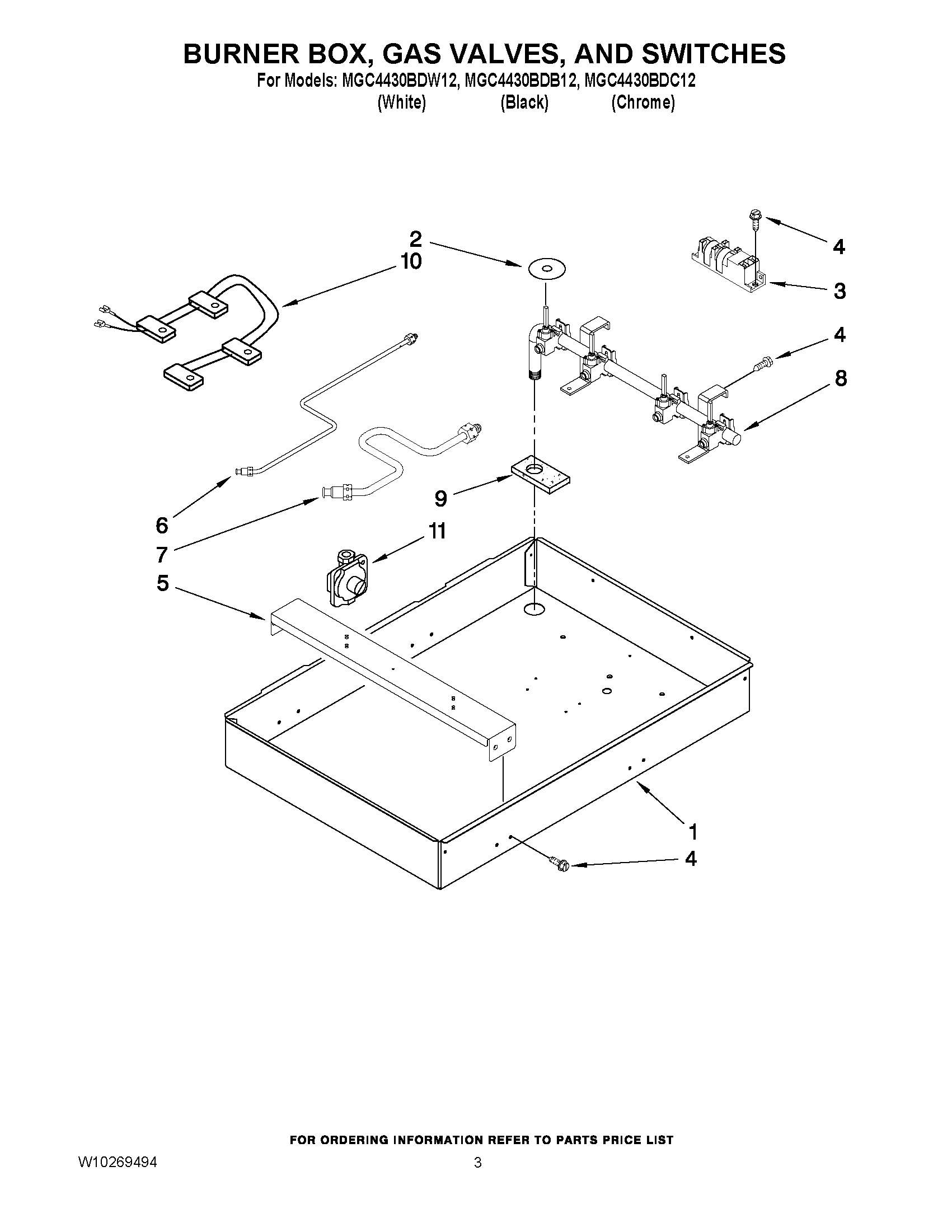

MGC4430BDW12 02 – BURNER BOX, GAS VALVES, AND SWITCHES

MGC4430BDW12 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

MGC4430BDW12 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY W10204678
2Seal, Valve Shaft
3MODULE, SPARK
4MAY 7101P426- 60
5MAY 3801F879-51
6MAY 7506P375-60
7MAY 7506P374-60
8MAY 7513P357-60
9MAY 7208P024-60
10MAY 7450P081-60
11MAY 7510P088-60
