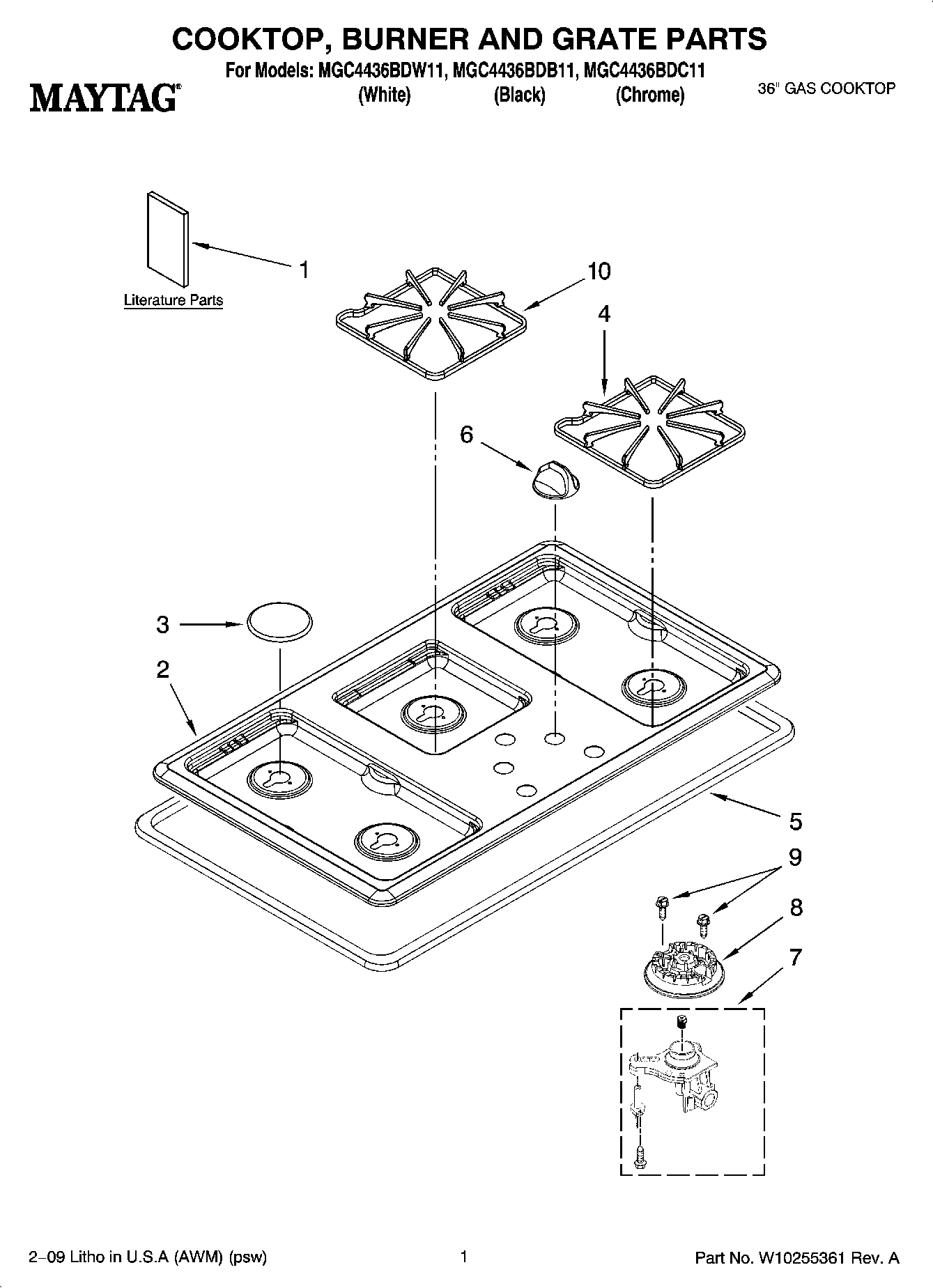

MGC4436BDB11 01 – COOKTOP, BURNER AND GRATE PARTS

MGC4436BDB11 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC4436BDB11 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY 8111P524-60
1MAY W10205174
1Wiring Diagram (English)
1Installation Instructions
2MAY W10191059
2MAY W10191060
2MAY W10191062
3WP74007925 Whirlpool Burner Cap
3WP74007752 Whirlpool Burner Cap (Medium Gray)
4Grate, Burner (Grey)
4MAY 7518P464-60
5Seal, Foam
6WP7733P382-60 Whirlpool Knob
6WP7733P381-60 Whirlpool Knob
7WP74007691 Whirlpool Holder
7WP7527P028-60 Whirlpool Dishwasher Orifice Holder
7WP7527P026-60 Whirlpool Orifice Holder
8HEAD, BURNER (LR/RR/LF)
9WP3368921 Whirlpool Screw
10MAY 7518P467-60
10Grate, Center (Grey)
