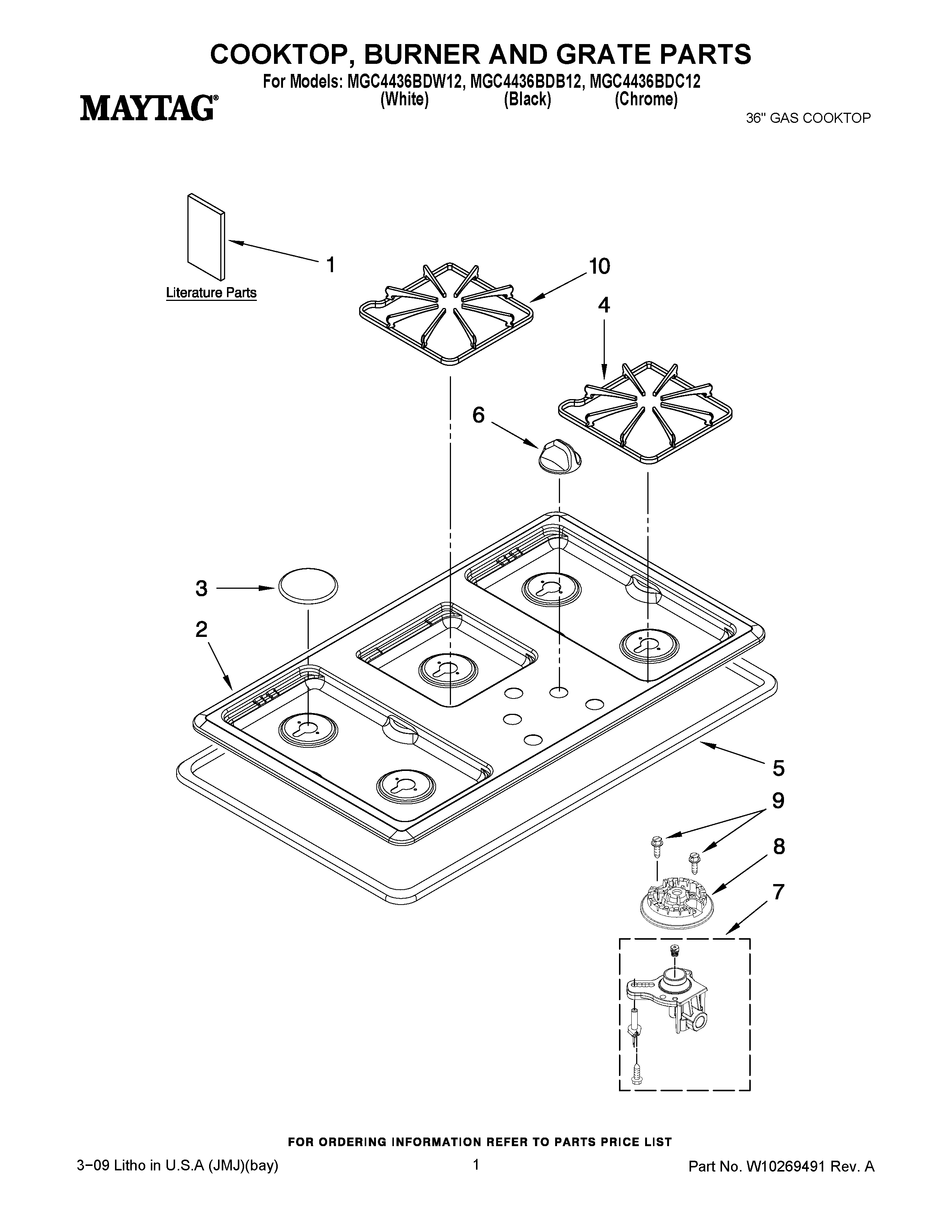

MGC4436BDB12 01 – COOKTOP, BURNER AND GRATE PARTS

MGC4436BDB12 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

MGC4436BDB12 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY 8111P524-60
1MAY W10205174
1Installation Instructions
1Wiring Diagram (English)
2MAY W10191059
2MAY W10191060
2MAY W10191062
3Cap, Burner (Black)
3Cap, Burner (Grey)
4Grate, Burner (Grey)
4MAY 7518P464-60
5MAY 8270P107-60
6MAY 7733P381-60
6MAY 7733P382-60
7ORIFICE HOLDER (9.5K) (RIGHT REAR)
7ORIFICE HOLDER (12K) (LEFT FRONT)
7Holder, Orifice (LF, LR & RR)
8HEAD, BURNER (LR/RR/LF)
9WP3368921 Whirlpool Screw
10MAY 7518P467-60
10Grate, Center (Grey)
