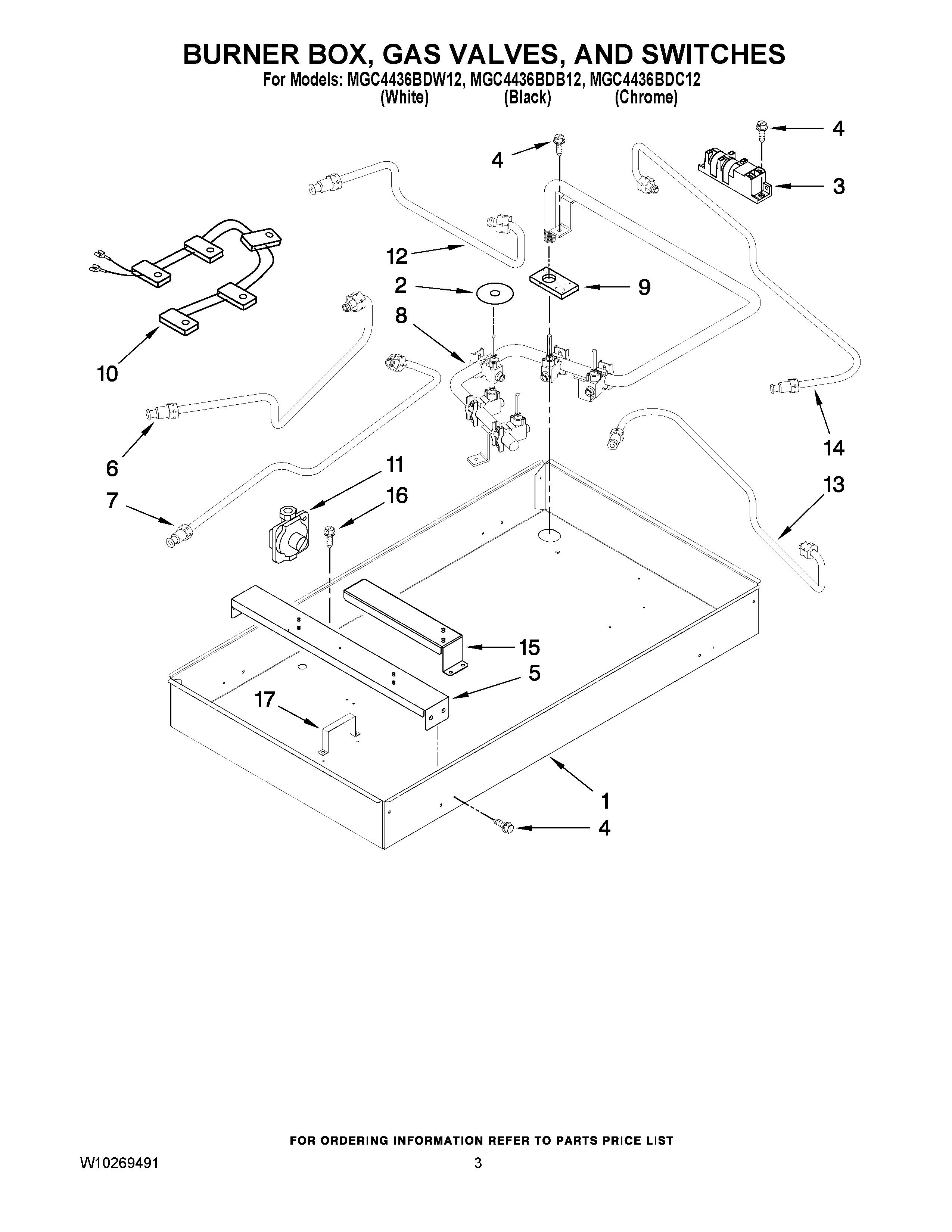

MGC4436BDB12 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

Products

Position	Product
1	Burner Box
2	Seal, Valve Shaft
3	Spark Module
4	MAY 7101P426- 60
5	BRACKET, ORIFICE HOLDER (2)
6	MAY 7506P362-60
7	MAY 7506P363-60
8	Pipe, Manifold (Includes Valves)
9	MAY 7208P024-60
10	MAY W10184468
11	MAY 7510P093-60
12	TUBING, CENTER
13	TUBING, RF
14	TUBING, RR
15	BRACKET, CTR HLDR
16	Screw, Ground
17	MAY 3801F933-51
